inlet distributor and collectors for Demineralisation wedge wire screen

More Views

inlet distributor and collectors for Demineralisation wedge wire screeninlet distributor and collectors for Demineralisation wedge wire screeninlet distributor and collectors for Demineralisation wedge wire screen

inlet distributor and collectors for Demineralisation wedge wire screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge wire screen
Application:Sugar, Coal Mining & Quarrying,Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of inlet distributor and collectors for Demineralisation wedge wire screen

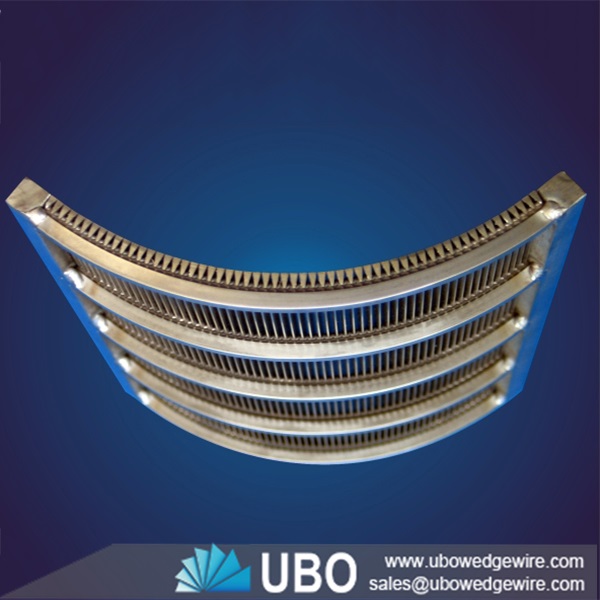

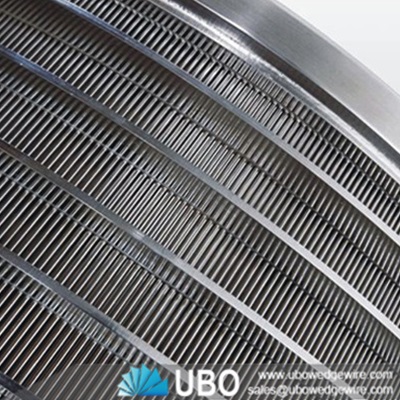

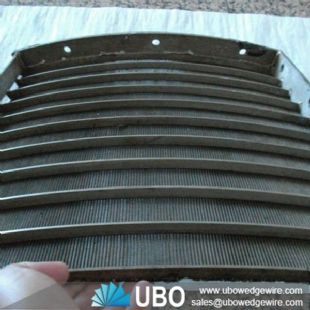

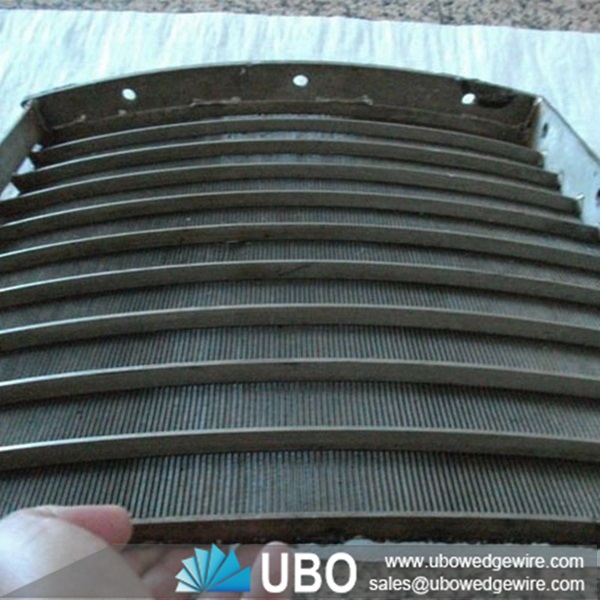

SS Johnson Sieve Bend Screens also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Application for inlet distributor and collectors for demineralisation wedge wire screen:

They are used in industries such as Sugar, Coal Mining & Quarrying,Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Widely used for fiber removal in Starch industry.

Features for inlet distributor and collectors for demineralisation wedge wire screen:

inlet distributor and collectors for Demineralisation wedge wire screen
Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Advantage for inlet distributor and collectors for Demineralisation wedge wire screen:

1) Excellent roundness

2) Very good slot width precision

3) High mechanical load capacity

4) No form closure connection that would allow vibration of the profiled bars

5) Automated welding process for high-precision manufacturing

6) Perfectly adjusted screen basket profiles

7) Available for all screens

8) Surface finishing as required

inlet distributor and collectors for Demineralisation wedge wire screen

Specifications of inlet distributor and collectors for Demineralisation wedge wire screen:

inlet distributor and collectors for Demineralisation wedge wire screen


Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~220
4
Φ1.6~Φ3.5
0.1~0.55
500~1000
350~730
1~4
132~280

Packaging and Transportation of inlet distributor and collectors for Demineralisation wedge wire screen:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
