Wedge Wire Screen Lateral Distributor

More Views

Wedge Wire Screen Lateral DistributorWedge Wire Screen Lateral DistributorWedge Wire Screen Lateral Distributor

Wedge Wire Screen Lateral Distributor

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L, or as per your request.
Properties:
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration,etc
tag:

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Lateral Distributor

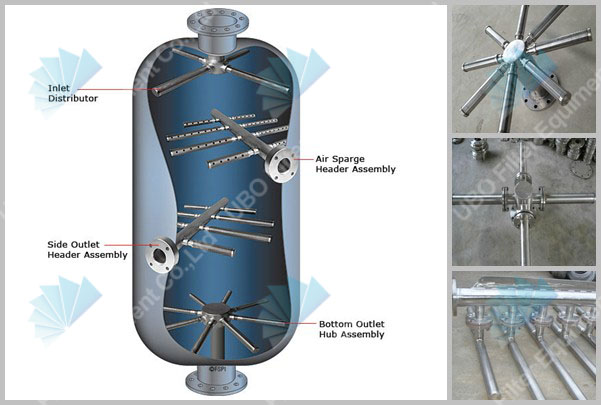

Wedge wire screen lateral distributor is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

Wedge wire screen lateral distributor, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.



Advantage of wedge wire screen lateral distributor

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life



Application of wedge wire screen lateral distributor

Wedge wire lateral assemblies is widely used in filtering and screening, additional, it is widely used in various machines for screening.

eg:


Cation exchanger.
Mixed bed exchanger.
Ion exchanger.

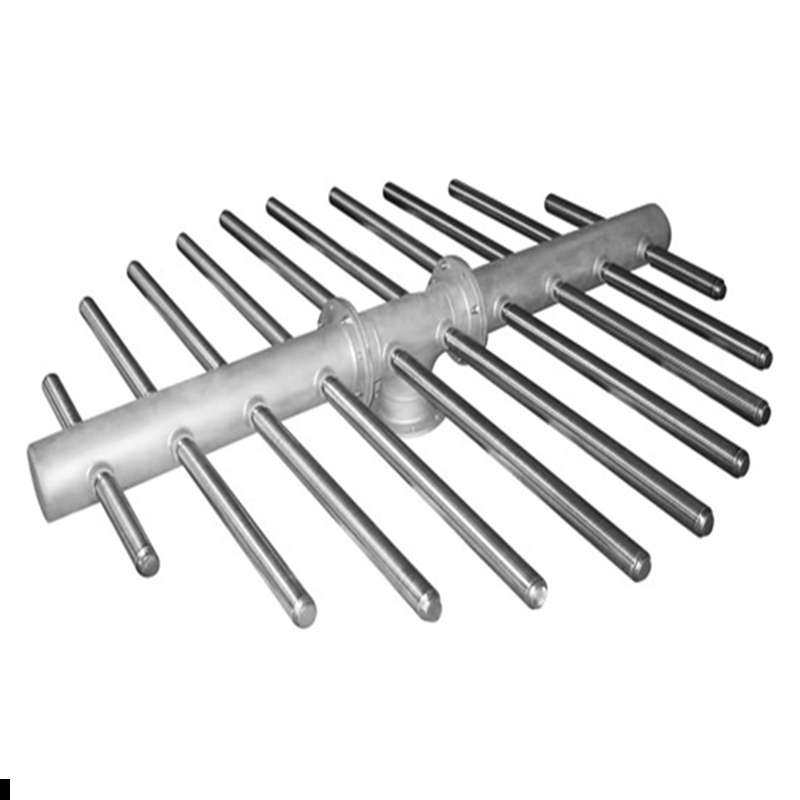

stainless steel wedge wire screen lateral distributor



Specifications of Wedge Wire Screen Lateral Distributor:


Material stainless steel, hastelloy steel or other alloy steel
Assemblies end type threaded type or flange type
Slot size 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm
Screen lateral diameter 32 mm, 40 mm, 70 mm, 76 mm, 89 mm
Vertical hub diameter 76 mm, 89 mm, 108 mm, 133 mm, 159 mm, 219 mm


Connection type:

stainless steel wedge wire screen lateral distributor


Packaging and Transportation of Wedge Wire Screen Lateral Distributor:
