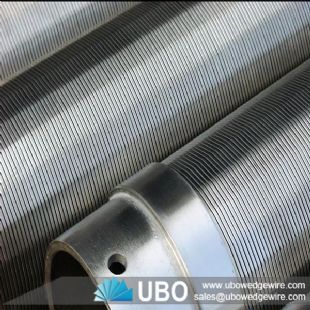

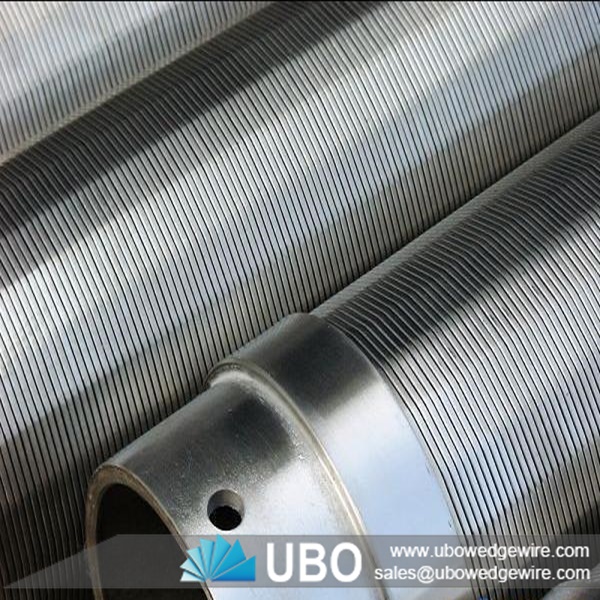

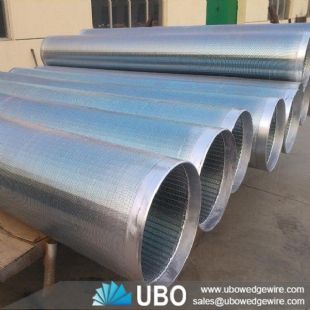

Stainless Steel Oil Well Screen Pipe for Water Well

More Views

Stainless Steel Oil Well Screen Pipe for Water WellStainless Steel Oil Well Screen Pipe for Water WellStainless Steel Oil Well Screen Pipe for Water Well

Stainless Steel Oil Well Screen Pipe for Water Well

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wegde wire screen
Application:water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Stainless Steel Oil Well Screen Pipe for Water Well

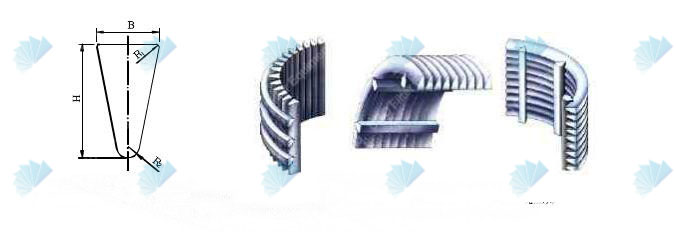

Stainless steel oil well screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.

The stainless steel oil  well screen pipe is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

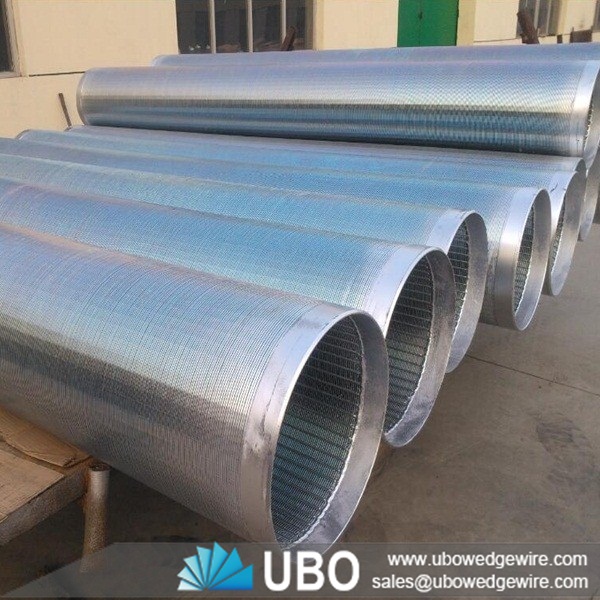

Stainless steel oil  well screen pipe for water well

Features of Stainless Steel Oil Well Screen Pipe for Water Well

1) wedge wire screen pipe with high porosity is more efficient for the construction of water, oil and gas wells.

2) Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.

3) Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.

4) to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.

Application of Stainless Steel Oil Well Screen Pipe for Water Well

Wedge wire screen cylinder is widely used in water filtering in well. It can prevent soil or rocks particles getting into the pipe to protect the pumping hole. Besides, the pipe is ideal for protecting the wall especially in loose layer or broken bedrock aquifer. At the same time, wedge wire screen cylinder can be used in large national projects to get higher quality filtering, such as water diversion, diving place in Olympic Games, transport projects, etc.

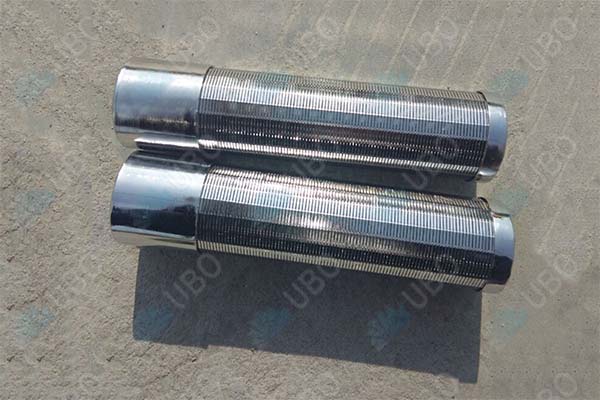

Stainless steel oil  well screen pipe for water well

Specifications of Stainless Steel Oil Well Screen Pipe for Water Well:

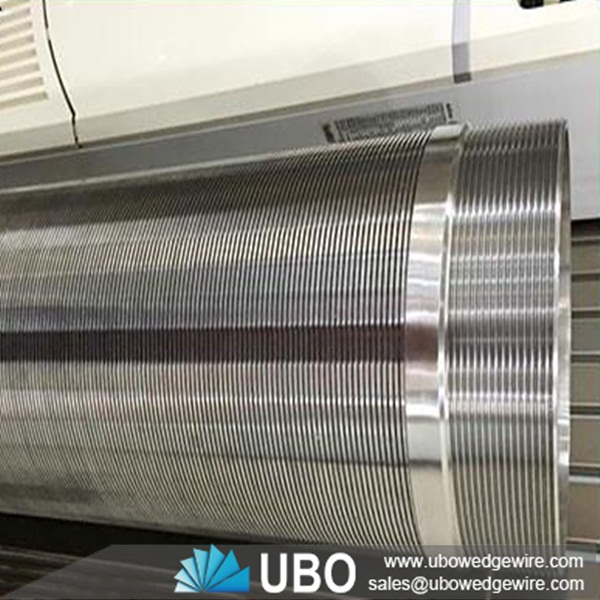

Stainless steel oil  well screen pipe for water well

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50


Packaging and Transportation of Stainless Steel Oil Well Screen Pipe for Water Well:

Stainless steel oil  well screen pipe for water well
