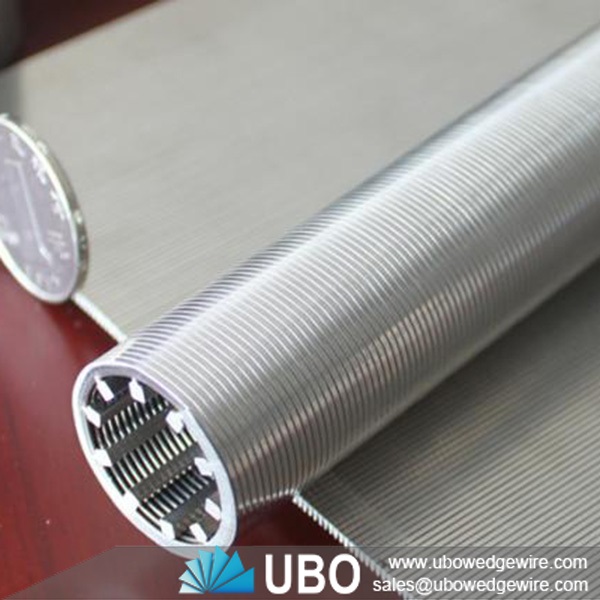

Wedge Wire screen casing pipe for oil well

More Views

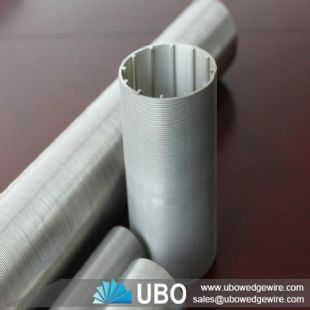

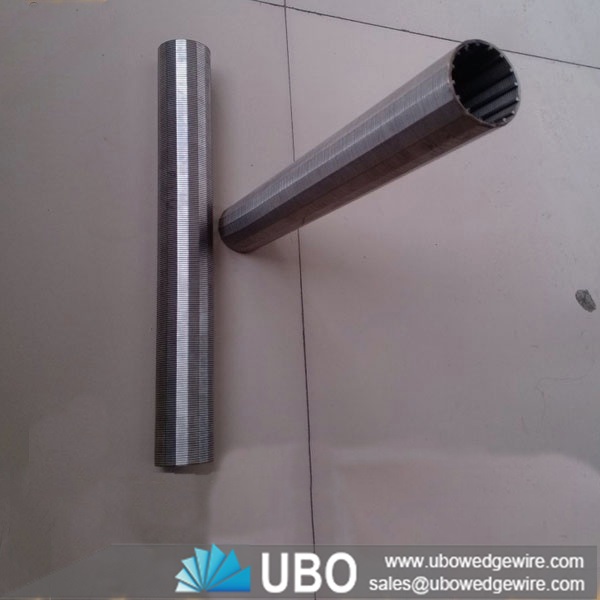

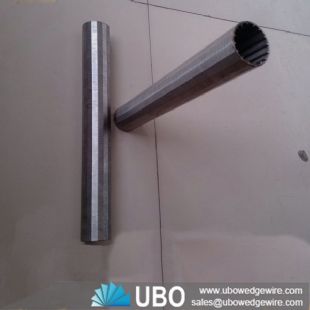

Wedge Wire screen casing pipe for oil wellWedge Wire screen casing pipe for oil wellWedge Wire screen casing pipe for oil well

Wedge Wire screen casing pipe for oil well

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire screen casing pipe for oil well

      Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Wedge Wire screen casing pipe for oil well:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters

Advantage for Wedge Wire screen casing pipe for oil well:

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Wedge Wire screen casing pipe for oil well

Specifications of Wedge Wire screen casing pipe for oil well:

Wedge Wire screen casing pipe for oil well




Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire screen casing pipe for oil well:

Wedge Wire screen casing pipe for oil well
