Coanda Screen Design

Hebei YUBO Filtration Equipment Co., Ltd. can custom design and produce Coanda screens. YUBO has advanced wedge wire screen manufacturing and separation technology and uses the Coanda effect to design Coanda screens.

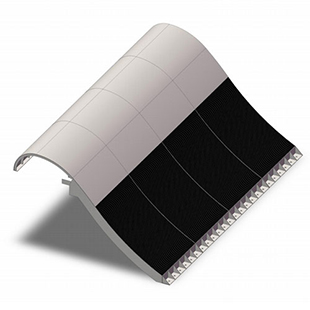

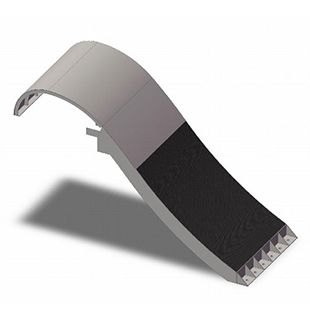

Coanda Screens is a self-cleaning screen with no moving parts that have been successfully used for debris and fish exclusion in a wide range of applications across the world including hydropower plant intakes, water conservation schemes, and irrigation programs. It uses a title wedge-wire screen partly down an Ogee-shaped slope. A solid acceleration plate forms the ogee slope above the screen and creates the high sweeping velocities necessary for self-cleaning.

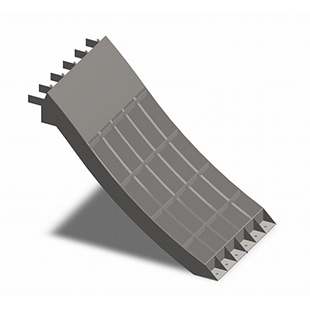

Assembly features of Coanda screen
Approach plate: deliver water screen at proper speed and direction
screen: cut the bottom layer of water using tilted wedge wire and has Removable screen panel for maintenance/replacement
Mounting angle: fastens assembly to structure and includes leveling bolts for quick adjustment during installation

Benefits of YUBO Coanda screens
1. The Coanda screen is self-cleaning. Almost no maintenance, reducing maintenance costs.
2. The gaps of slots can be customized according to your application requirements.
3. Wear-resistant, corrosion-resistant and durable.
4. Utilize the Kangda effect, no power supply is needed, saving money.
5. Easy to assemble

The applications of YUBO Coanda screens
Fisheries, Fish Farming.
Hydro Intake Screens.
Micro Herbs / Veg.
River Screening.
Irrigation.
Others.

More details about YUBO Coanda screens can be obtained by contacting us at any time.
