Welded Wedge Wire Slot Water Well Screen Pipe

More Views

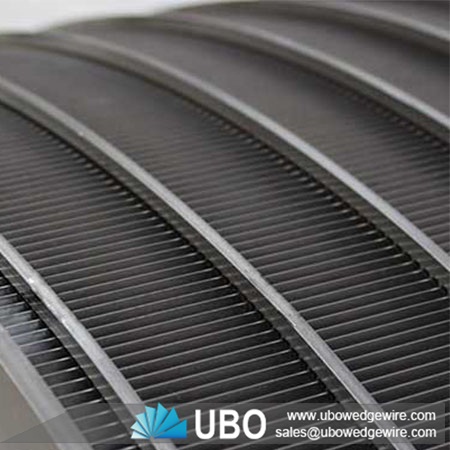

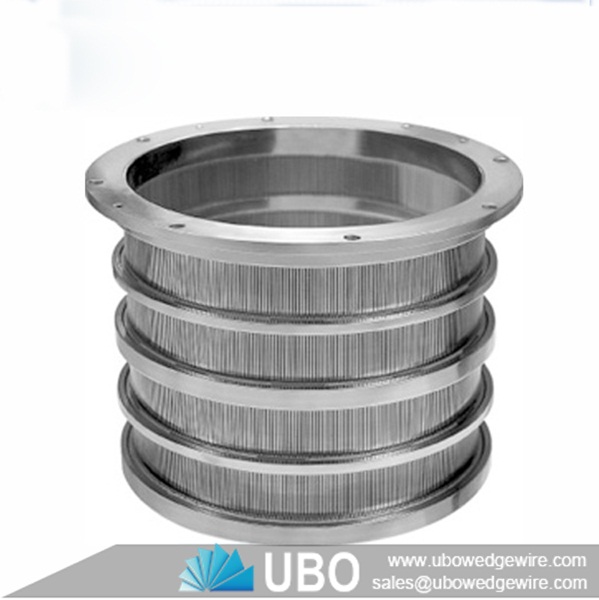

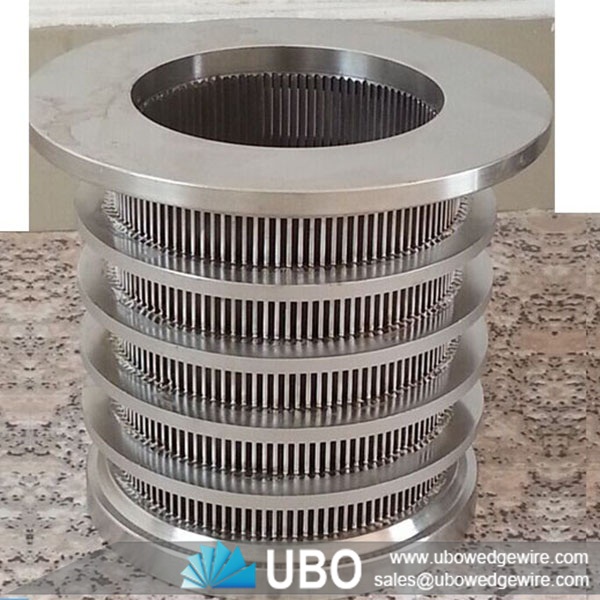

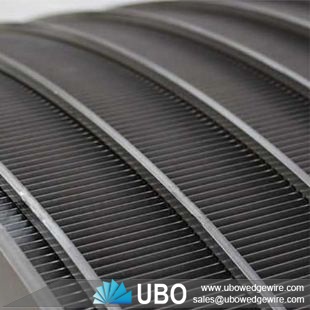

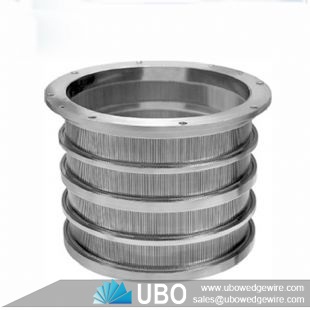

Welded Wedge Wire Slot Water Well Screen PipeWelded Wedge Wire Slot Water Well Screen PipeWelded Wedge Wire Slot Water Well Screen Pipe

Welded Wedge Wire Slot Water Well Screen Pipe

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Stainless Steel Pipe
Application:water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metal

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Welded Wedge Wire Slot Water Well Screen Pipe

Wedge wire screens are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. The world advanced all-weld technology is used with each intersecting point of these wire fusion welded, which creates the robust construction and excellent mechanical performance. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. The slots can be changed according to different strata.

Application for Welded Wedge Wire Slot Water Well Screen Pipe:

With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metal and wedge wire tube outside filter.

Features for Welded Wedge Wire Slot Water Well Screen Pipe:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantage for Welded Wedge Wire Slot Water Well Screen Pipe:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded Wedge Wire screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded Wedge Wire screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Feature for Welded Wedge Wire Slot Water Well Screen Pipe:

Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained.
Costly downtime for cleaning plugged screens is minimize.

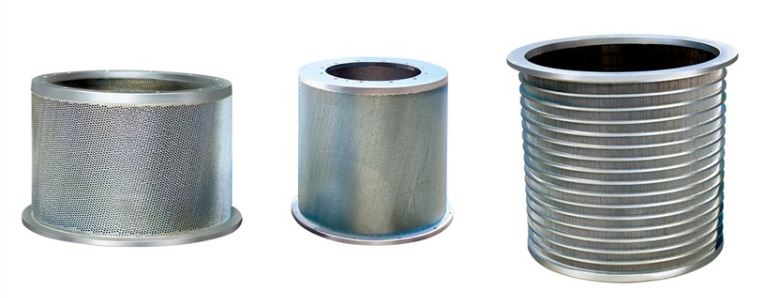

Welded wedge wire Wedge Wire continuous slot water well screen pipe China factory

Specifications of Welded Wedge Wire Slot Water Well Screen Pipe:

Welded wedge wire Wedge Wire continuous slot water well screen pipe China factory

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

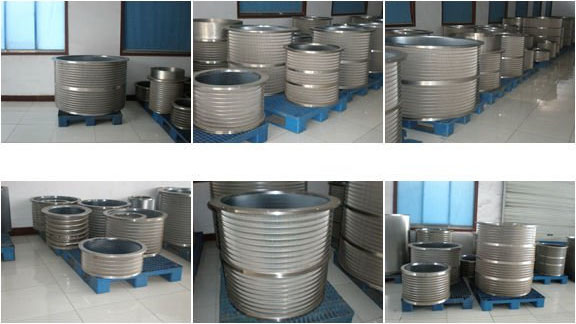

Packaging and Transportation of Welded Wedge Wire Slot Water Well Screen Pipe:

Welded wedge wire Wedge Wire continuous slot water well screen pipe China factory
