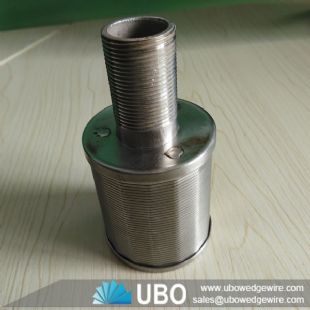

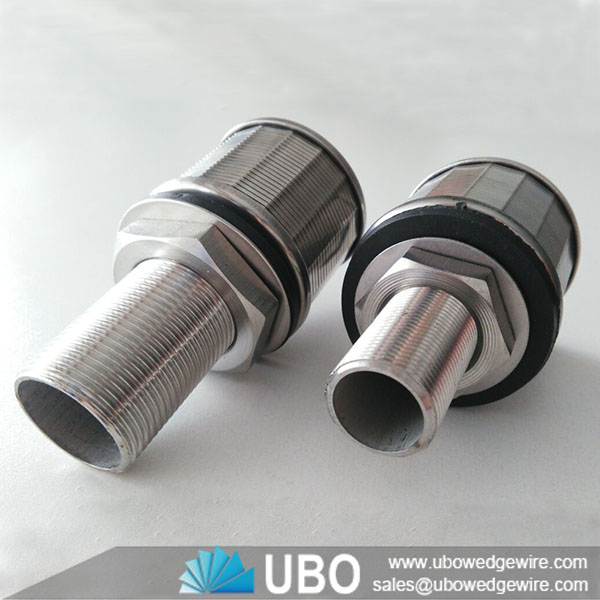

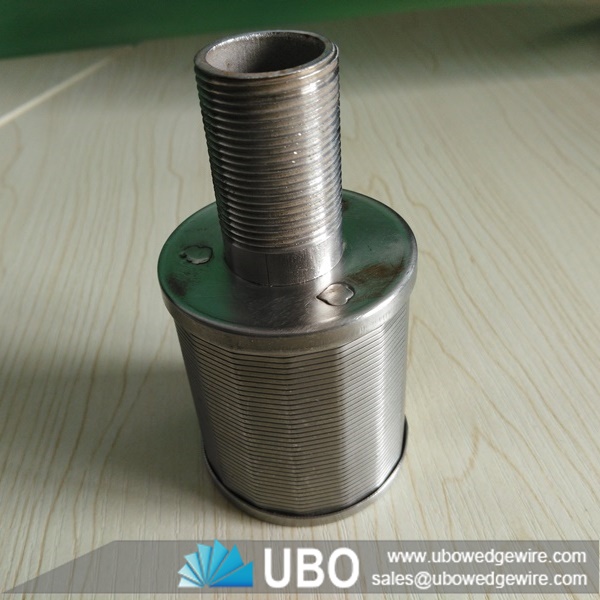

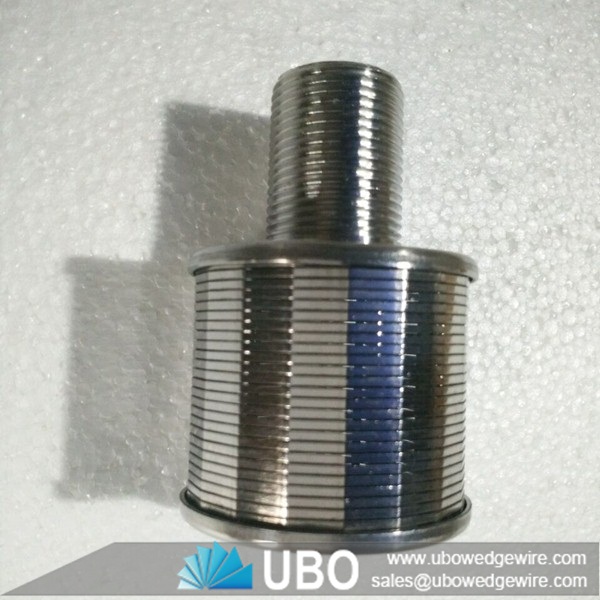

Wedge wire water filter nozzle for tank equipment
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge wire water filter nozzle for tank equipment
Wedge wire water filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.
Applications of Wedge wire water filter nozzle for tank equipment
The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries
Advantages of Wedge wire water filter nozzle for tank equipment
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly
Specifications of Wedge wire water filter nozzle for tank equipment:
Material:stainless steel
Type:filter nozzle
Connector:3/4'' NPT
OD (mm)
|
Material
|
Profile wire size
|
Support rod size
|
Support rod no.
|
Filtering Slot size
|
37
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
8
|
0.025~3.00mm
|
40
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
10
|
0.025~3.00mm
|
42
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
10
|
0.025~3.00mm
|
45
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
12
|
0.025~3.00mm
|
48
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
12
|
0.025~3.00mm
|
60
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
12
|
0.025~3.00mm
|
64
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
18
|
0.025~3.00mm
|
70
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
18
|
0.025~3.00mm
|
76
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
18
|
0.025~3.00mm
|
85
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
18
|
0.025~3.00mm
|
100
|
SS304/316L
|
10S/12S/18S
|
Q22/Q25
|
24
|
0.025~3.00mm
|
