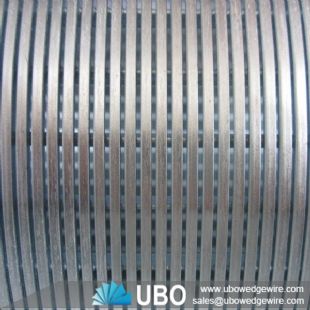

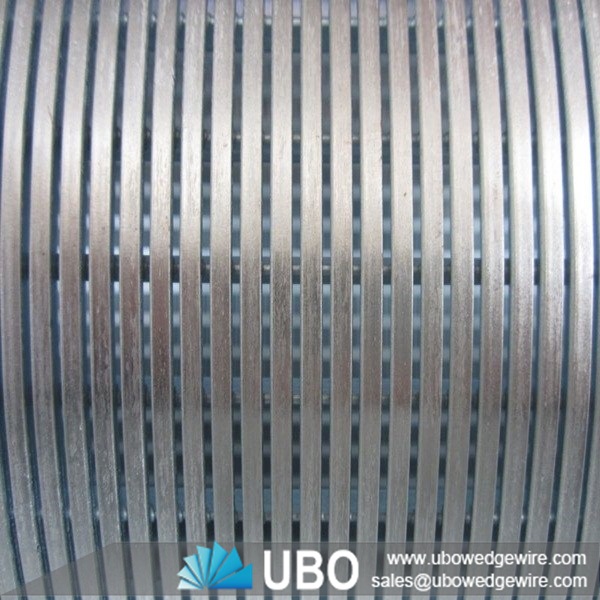

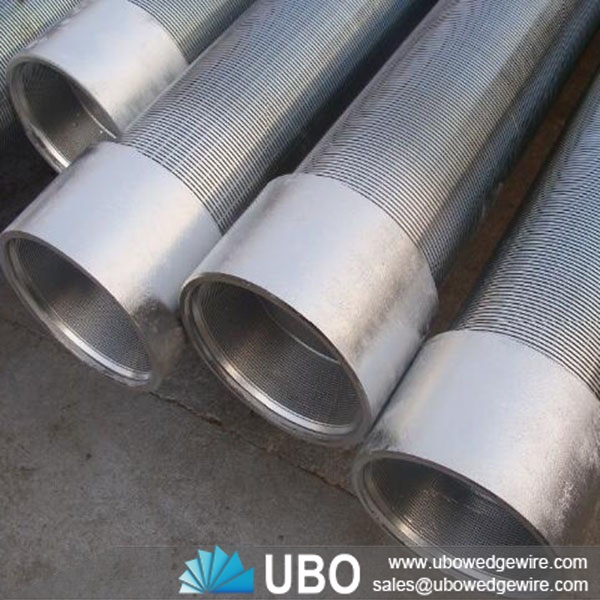

Wedge Wire Bridge Slot Water Well Screen Pipes

Wedge Wire Bridge Slot Water Well Screen Pipes

Category:	Wedge Wire Pipe&Cylinder
Material:	stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:	wedge wire screen pipe
Application:	water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

tag:Wedge wire, bridge slot, water well screen, screen filter,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Email to Us

Start Order

Skype:Enla

Email:sales@ubowedgewire.com

Details of Wedge Wire Bridge Slot Water Well Screen Pipes

Wedge wire bridge slot water well screen pipe is made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

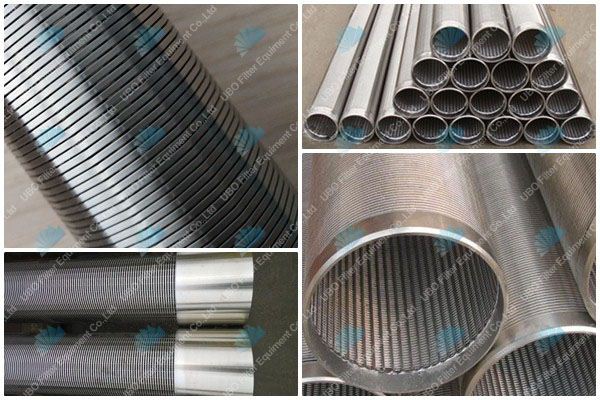

Wedge wire bridge slot water well screen filter

Features of Wedge Wire Bridge Slot Water Well Screen Pipe

Non-clogging surface .
Large open area .
Low pressure drop .
Hydraulic efficiency .
High flow rates .
Mechanical strength .
Abrasion-resistant .
Easy cleaning

Application of Wedge Wire Bridge Slot Water Well Screen Pipe

Separating , filtering
Dewatering
Classifying
Straining , drying .
Water intak

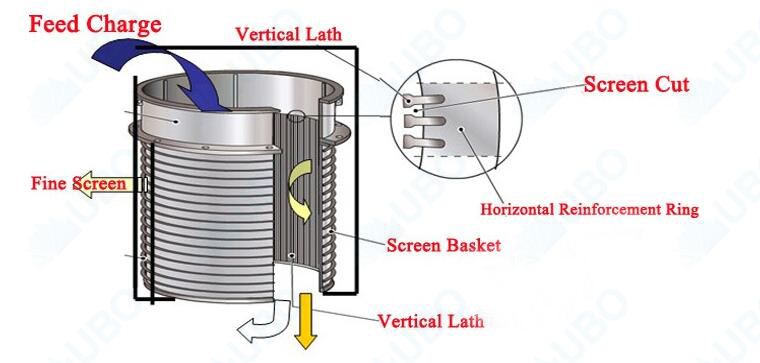

Wedge wire bridge slot water well screen filter

Specifications of Wedge Wire Bridge Slot Water Well Screen Pipes:

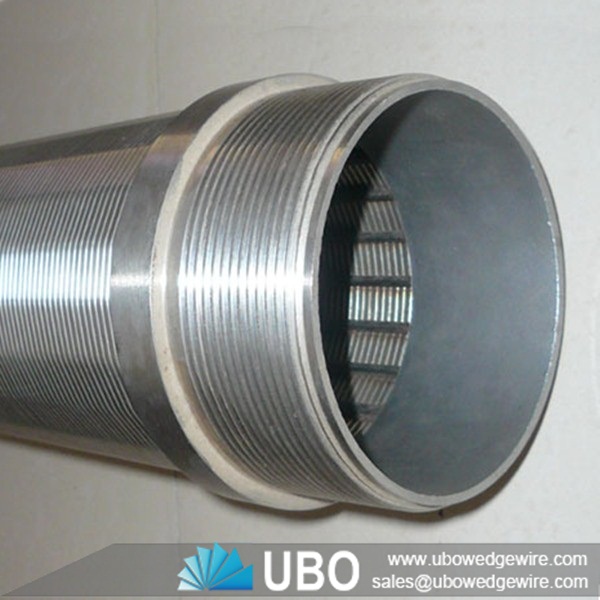

Wedge wire bridge slot water well screen filter

wedge wire	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters
Diameter	from 25mm to 1200mm.

Packaging and Transportation of Wedge Wire Bridge Slot Water Well Screen Pipes:

Package: in wood case

Delivery Time: 5-25 days
