Stainless Steel Wedge Wire Water Well Screen Pipe
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire pipe |
Application: | mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

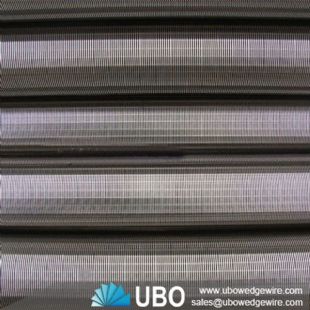

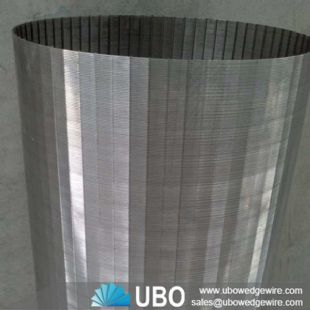

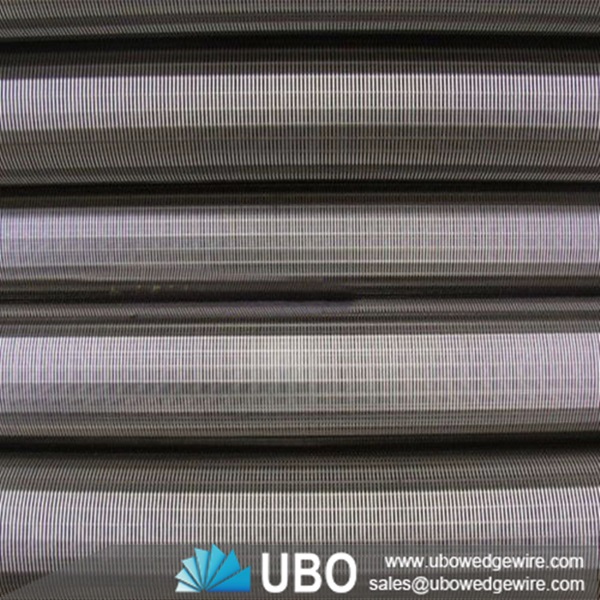

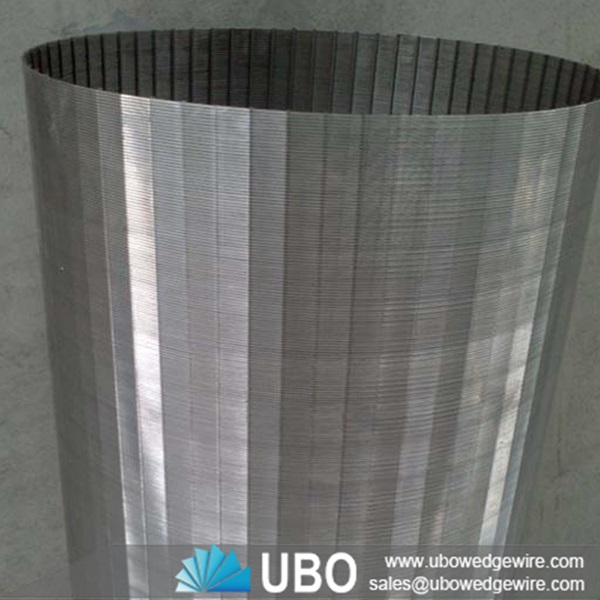

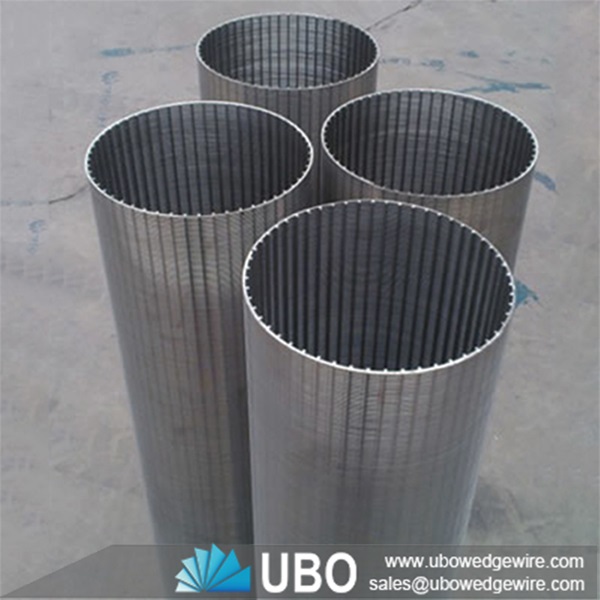

Details of Stainless Steel Wedge Wire Water Well Screen Pipe
Wedge Wire screen pipes are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.
Application for Stainless Steel Wedge Wire Wedge Wire water well screen pipe:
This screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.
Characteristics for Stainless Steel Wedge Wire Wedge Wire water well screen pipe:
1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.
Features for Stainless Steel Wedge Wire Wedge Wire water well screen pipe:
1).adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.
2).wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3).arrangement of the longitudinal support rods and the successive slots provide higher compressive property.
Specifications of Stainless Steel Wedge Wire Water Well Screen Pipe:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
Packaging and Transportation of Stainless Steel Wedge Wire Water Well Screen Pipe:
