Wedge Wire Wide Slit Screens for Filtration

More Views

Wedge Wire Wide Slit Screens for FiltrationWedge Wire Wide Slit Screens for FiltrationWedge Wire Wide Slit Screens for Filtration

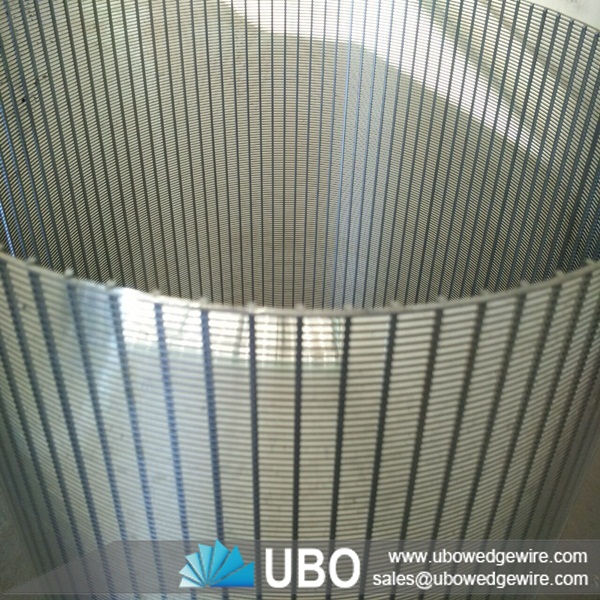

Wedge Wire Wide Slit Screens for Filtration

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Wide Slit Screens for Filtration

Wedge wire wide slit screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

Advantages of wedge wire wide slit screens for filtration

-- Reduced consumption of treated water for backwashin

-- Savings in filter height and volume

-- No maintenance, repair or shutdown

-- No need for suspended filter floor

Application of wedge wire wide slit screens for filtration

V Wire Screen pipe is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

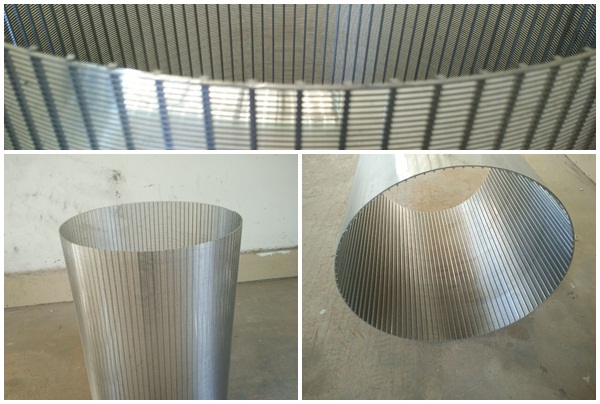

      wedge wire wide slit screens for filtration

Specifications of Wedge Wire Wide Slit Screens for Filtration:

Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.

Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”.

Open area: up to 60%.

Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).

Lengths up to 6 meters.

Diameter: ranging from 25 to 2000mm.

End connection: plain beveled ends for butt welding or threaded.

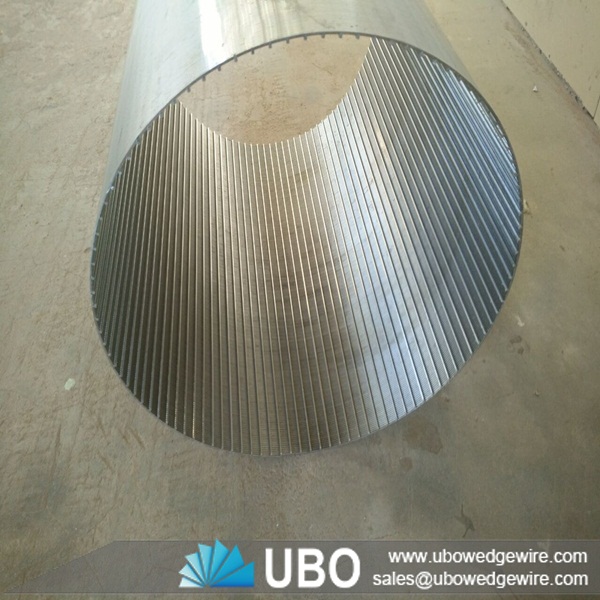

wedge wire wide slit screens for filtration




SIZE

(inch)

O.D

(mm)

SLOT

(inch)

LENGTH

(m)

Collapse

Strength

(psi)

Tensile

Weight

(ton)

Wire size

(mm)

RODS (mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/50



Packaging and Transportation of Wedge Wire Wide Slit Screens for Filtration:

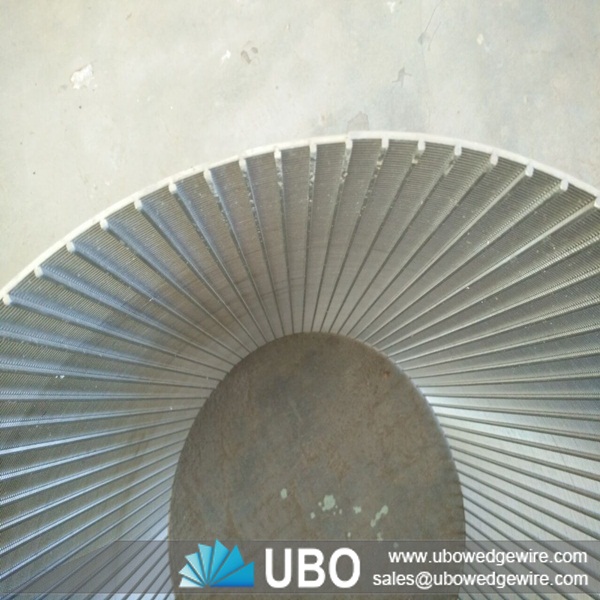

wedge wire wide slit screens for filtration
