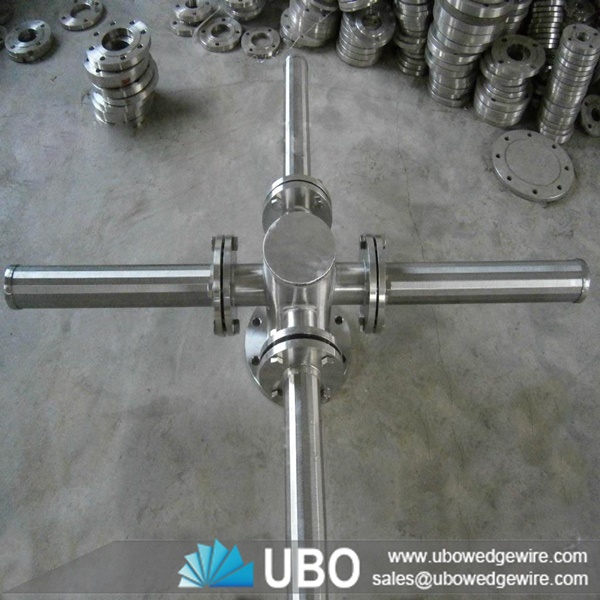

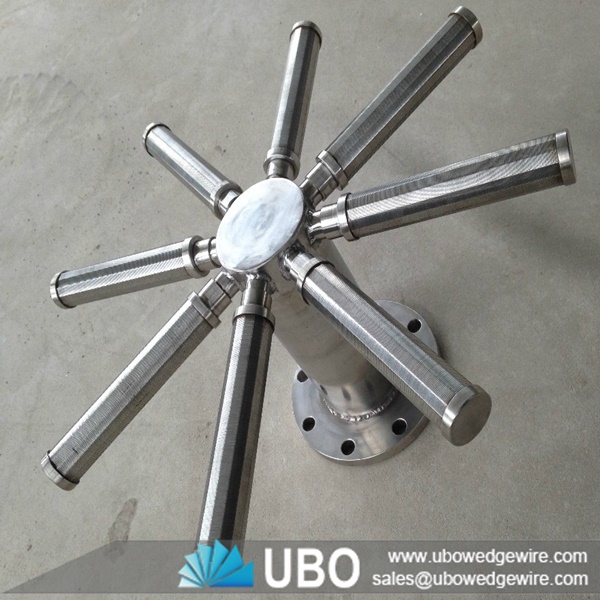

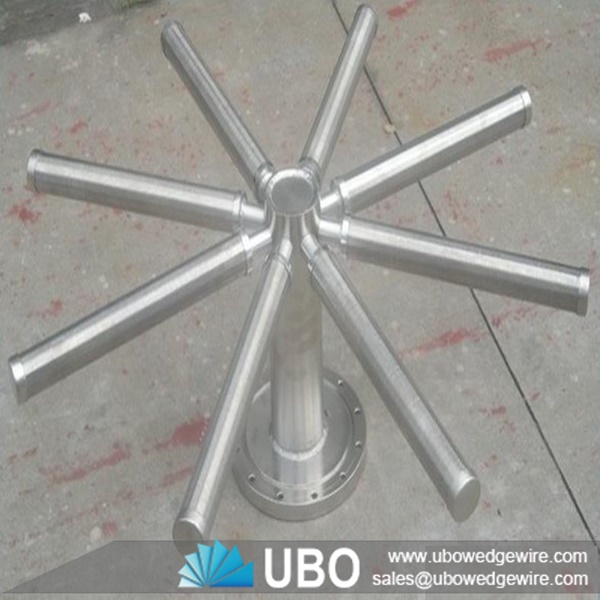

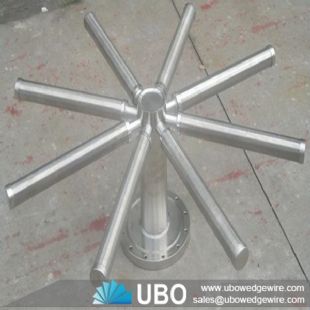

Profile screen lateral for filtration

More Views

Profile screen lateral for filtrationProfile screen lateral for filtrationProfile screen lateral for filtration

Profile screen lateral for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Profile screen lateral for filtration

Profile screen lateral for Process circulating water is made of V shaped stainless steel wire, It has flow area, water distribution uniformity, the high mechanical strength, temperature, pressure, anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

The profile screen lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.

Features of Profile Screen Lateral

-- High mechanical strength

--High wear resistance

--High impact resistance

-- Larger open area

-- Self-supporting structure

-- Non-plugging slot design

-- Lower operation and maintenance cost

Application of Profile Screen Laterals

Profile screen lateral systems are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and wastewater treatment applications.

         Profile screen lateral for filtration

Specifications of Profile screen lateral for filtration:

Material:stainless steel or as your special requestments

Slot:0.02,0.05,0.1,0.2,0.5mm etc.

No.

Model

DN
(mm)

O.D. of Branch Pipe(mm)

Number of Branch Pipe

Dimension of Main Pipe

1

HR-125

1250

25-57

6-8

DN80

2

HR-160

1600

28-57

6-8

DN80

3

HR-180

1800

32-65

8-12

DN80-DN100

4

HR-200

2000

42-89

8-12

DN80-DN125

5

HR-220

2200

42-89

8-12

DN100-DN125

6

HR-250

2500

57-89

8-16

DN100-DN125

7

HR-280

2800

57-89

8-20

DN100-DN150

8

HR-300

3000

57-89

8-20

DN125-DN200

9

HR-320

3200

57-89

8-22

DN125-DN250

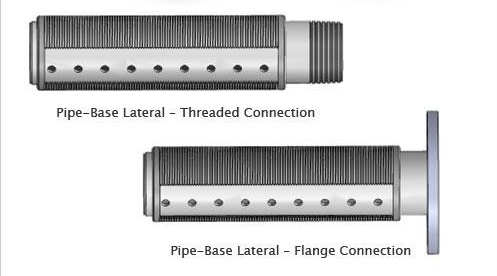

Connection type:

Profile screen lateral

Packaging and Transportation of Profile screen lateral for filtration:

production
