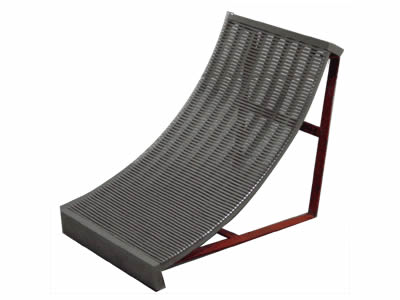

Curved Wedge Wire Screen for Static Run Down Screen

Static Rundown Screen

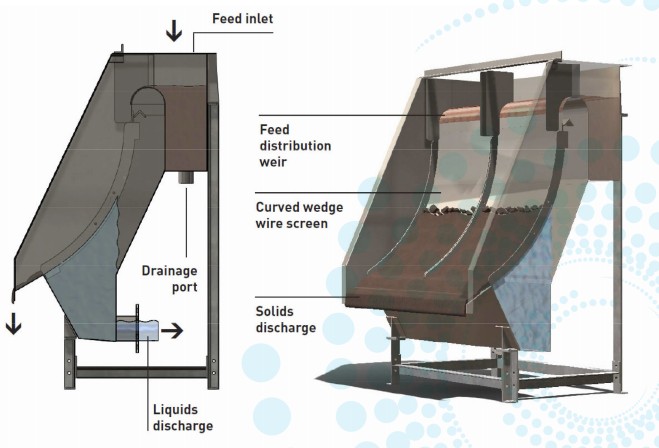

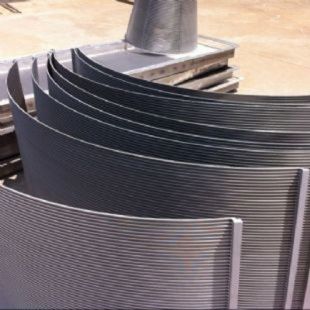

Curved wedge wire screens are a type of filter screen used in static run down screens for various industrial applications. These screens are made of high-quality stainless steel wire that is shaped into a curved wedge shape and welded onto a support structure. The curved wedge shape of the wire creates a continuous slot opening that allows for the filtration of liquids and gases while preventing the passage of unwanted particles.

The curved wedge wire screen is an efficient and reliable filtration solution that is widely used in various industries such as food and beverage, chemical processing, and water treatment.

Features of Curved Wedge Wire Screen for Static Run Down Screen

-- No moving parts to maintain

-- High capacity wedge wire screen

-- Effective technology, minimum wear

-- Simple proven design with hundreds of installations

-- Optional cleaning system and vibratory system

Benefits of Curved Wedge Wire Screen for Static Run Down Screen

-- Reduces down-time and maintenance costs

-- Designed for pumped flow or cascade applications.

-- Alternate option for more expansive machines.

-- OEM service available

-- Simple installation

Slots of this screens range from 0.10 to 7,0 mm

Capacities range from 10 to 1000  m3 /h with multiple units.

The standard used is AISI-304 (1.4301) stainless steel, AISI-316 and L grades are also available.

All static run down screen can be customized according to your requirement.

Package: in wood case

Delivery time: 15-30 days.
