316L wedge wire hub lateral for filtration

316L wedge wire hub lateral designs are typical for flat bottom vessel distributor or collector applications. System designs can accommodate side, center, top or bottom inlet piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Inlet/outlet piping of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and sand filtration applications, carbon towers and power plants with water systems. We designs each system to provide equal distribution or collection to avoid flow/pressure concentrations.

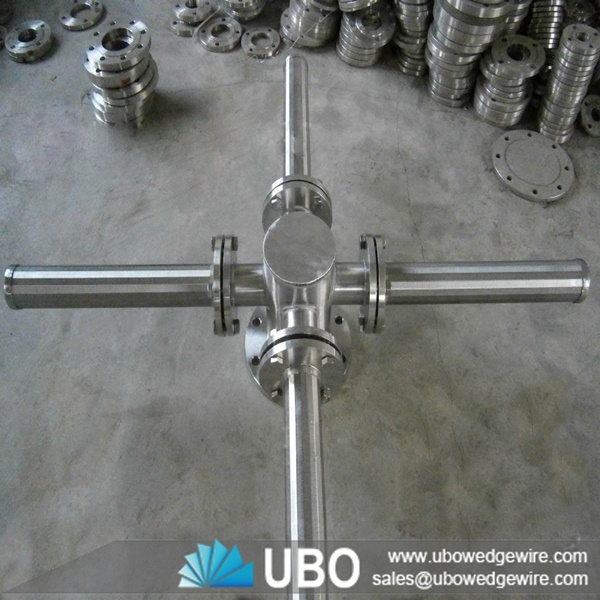

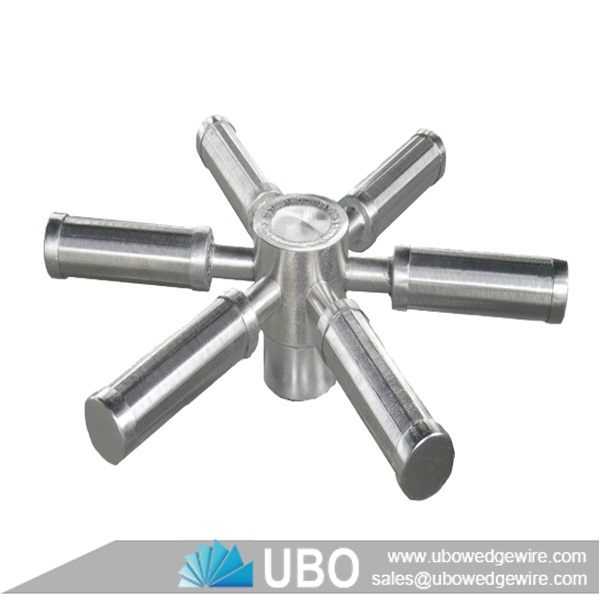

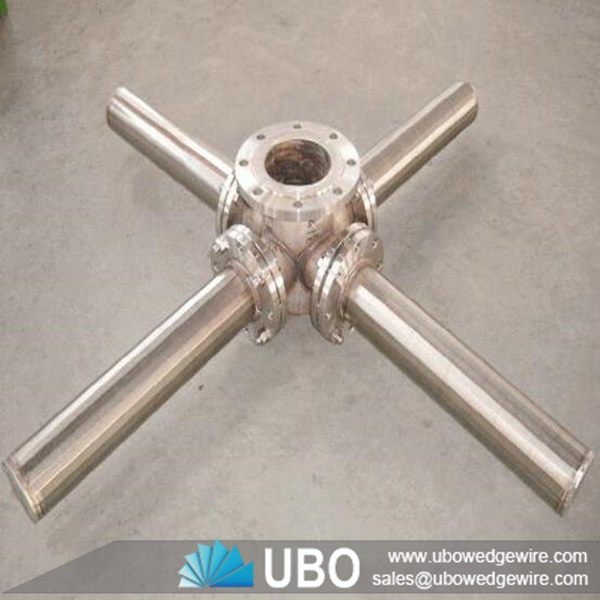

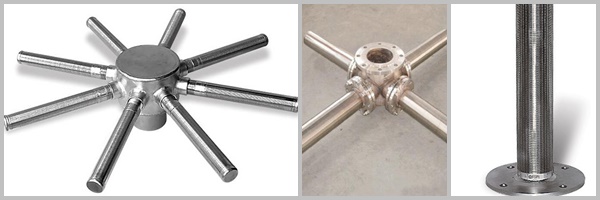

The wedge wire screen hub lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral.

Features of 316L wedge wire hub lateral for filtration

-- variours shape meet different filter need

-- high-effeciency filteration

-- easy to clean and mantain

-- long -term use life

-- Good strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Long work time.

-- Easy to clean and back wash

Application of 316L wedge wire hub lateral for filtration

Hub lateral systemsare important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and wastewater treatment applications.

Material:stainless steel

Wire diameter: 1.5x2mm, 2x3mm

Screen length: 0.5, 0.8, 1, 1.2, meters or according to you.

branch pipe length: 1.5, 1.8, 2, 2.5, 3, 5meter.

Diameter: 50, 80, 90, 110, 120 mm

Slot size: 1mm also achieved upon request.

Connector: flange or thread

Product structure: Wedge wire screen, pipe, cap.

Surface treatment: Polishing, chroming

packing:wooden case
