Quality Wedge Wire Screen Manufacturer in China

Wedge Wire resin trap for ion exchanger

More Views

Wedge Wire resin trap for ion exchangerWedge Wire resin trap for ion exchangerWedge Wire resin trap for ion exchanger

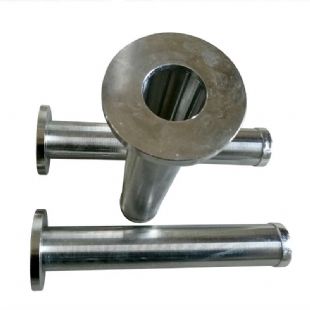

Wedge Wire resin trap for ion exchanger

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical
tag:

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire resin trap for ion exchanger

Wedge Wire screen resin trap strainer used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Wedge Wire screen resin trap strainers are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

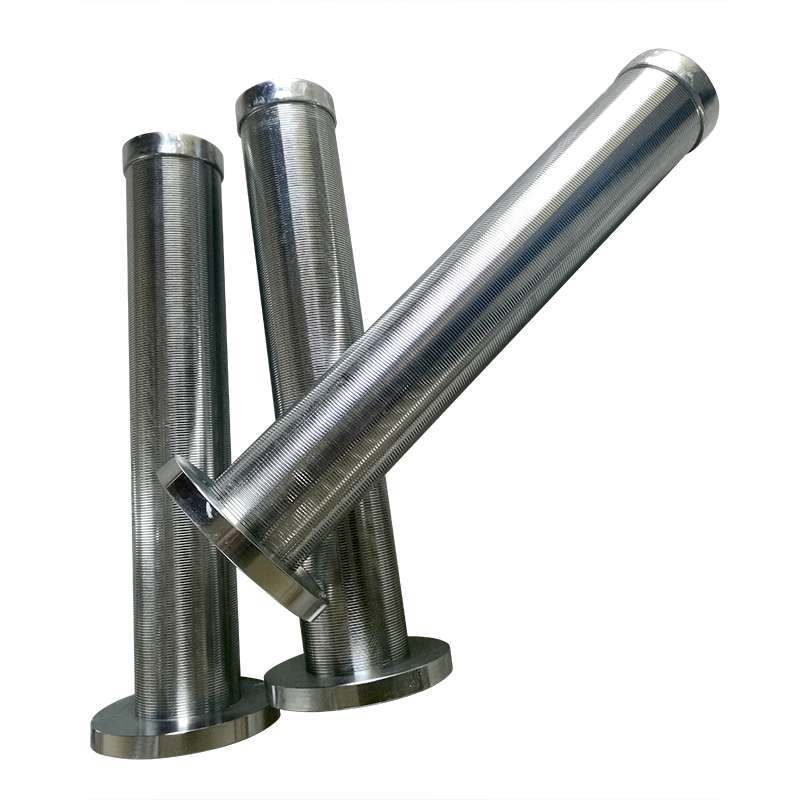

Wedge Wire screen pipe resin trap strainer used for ion exchanger


Feature of Wedge Wire screen resin trap strainer for ion exchanger

-- High mechanical strength can bear large pressure drop
-- Equal slots for filtering can form equally distributed filter cake
-- The wedge type slot can improve back flushing and regeration performance
-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.



Application of Wedge Wire screen resin trap strainer for ion exchanger

Mine Sieving Mesh Usage: Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries.

In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

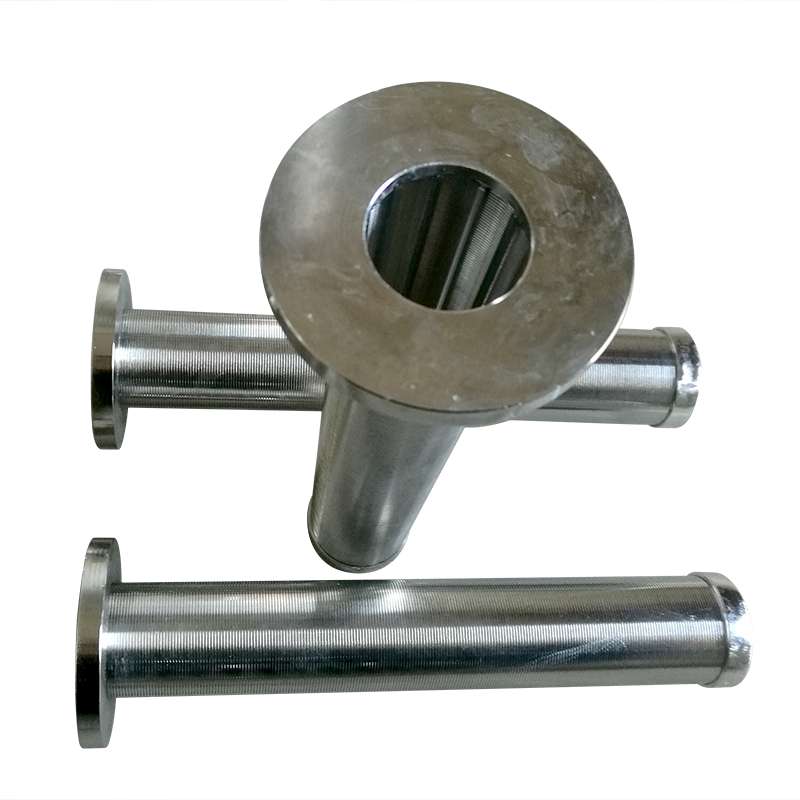

Wedge Wire screen pipe resin trap strainer used for ion exchanger

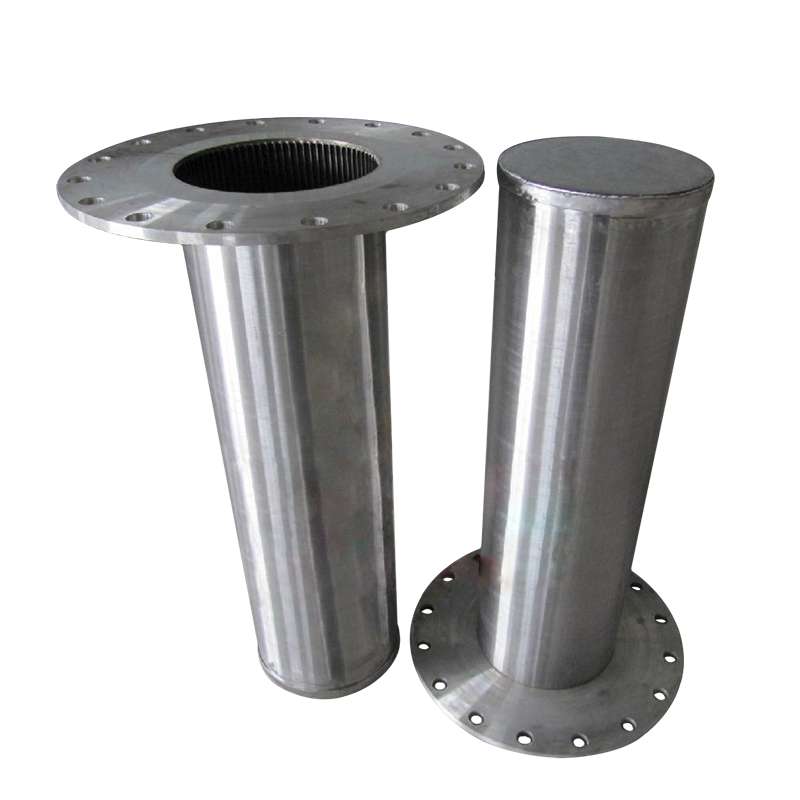

Wedge Wire screen pipe resin trap strainer used for ion exchanger

Wedge Wire screen pipe resin trap strainer used for ion exchanger

Specifications of Wedge Wire resin trap for ion exchanger:

Wedge Wire screen pipe resin trap strainer used for ion exchanger

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

25mm-2000mm

ID Range

19mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

3*5

3*5

Connection

Flange and thread

End Type

Closed plate

Note

Customized According To Special Requirement



Packaging and Transportation of Wedge Wire resin trap for ion exchanger:

Wedge Wire screen pipe resin trap strainer used for ion exchanger
