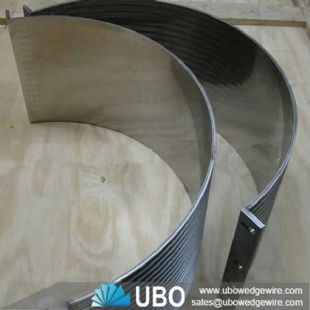

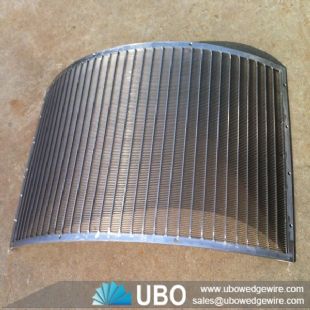

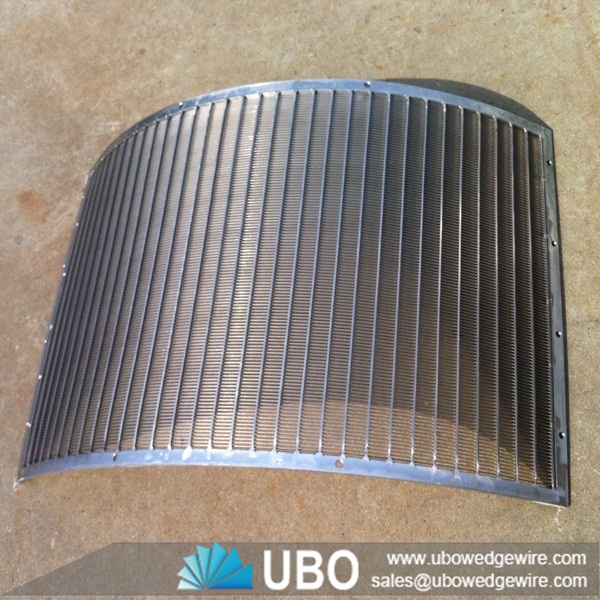

Stainless Steel Wedge Water V wire Slot DSM ScreensStainless Steel Wedge Water V wire Slot DSM ScreensStainless Steel Wedge Water V wire Slot DSM Screens

Stainless Steel Wedge Water V wire Slot DSM Screens

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Water V wire Slot DSM Screens

The Stainless Steel Wedge Water V wire Slot DSM Screens, also known as the run down screen, side hill screen, DSM screen, Parabolic screen, curve screen and so on.
The sieve bend screen could be custom made and designed according to the application.

This Stainless Steel Wedge Water V wire Slot DSM Screens is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

Stainless Steel Wedge Water V wire Slot DSM Screens

Stainless Steel Wedge Water V wire Slot DSM Screens



Advantages of Stainless Steel Wedge Water V wire Slot DSM Screens

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Application of Stainless Steel Wedge Water V wire Slot DSM Screens

The dsm sieve bend screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Stainless Steel Wedge Water V wire Slot DSM Screens

Stainless Steel Wedge Water V wire Slot DSM Screens

Stainless Steel Wedge Water V wire Slot DSM Screens

Specifications of Stainless Steel Wedge Water V wire Slot DSM Screens:

Stainless Steel Wedge Water V wire Slot DSM Screens

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement
