Stainless Steel Water Filter Nozzle

More Views

Stainless Steel Water Filter NozzleStainless Steel Water Filter NozzleStainless Steel Water Filter Nozzle

Stainless Steel Water Filter Nozzle

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request
Properties:wedge wire screen filter nozzle
Application:water treatment, wastewaster treatment, Filtration, liquid/solid separation

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

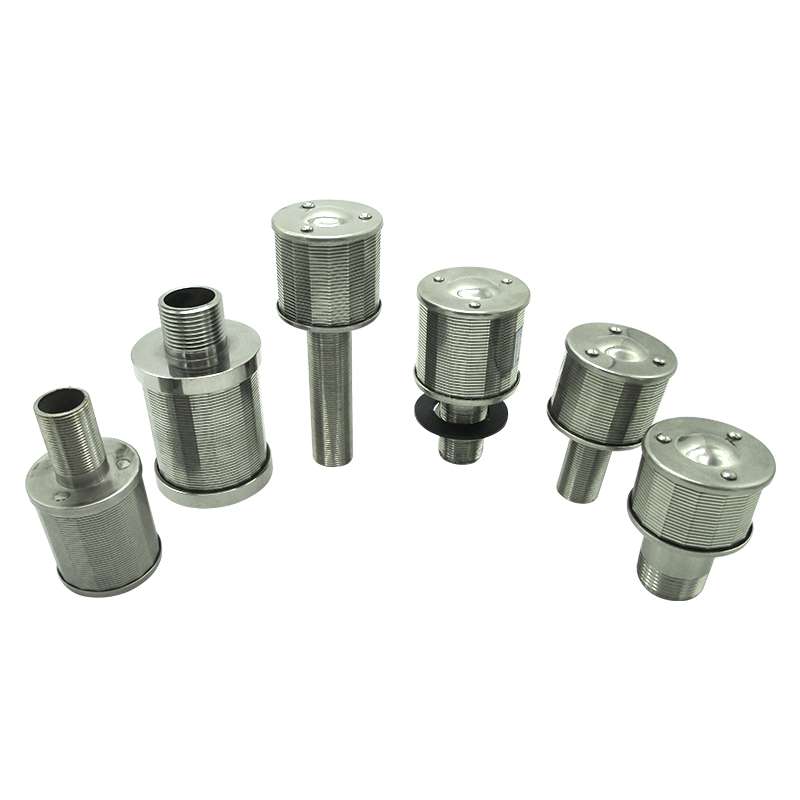

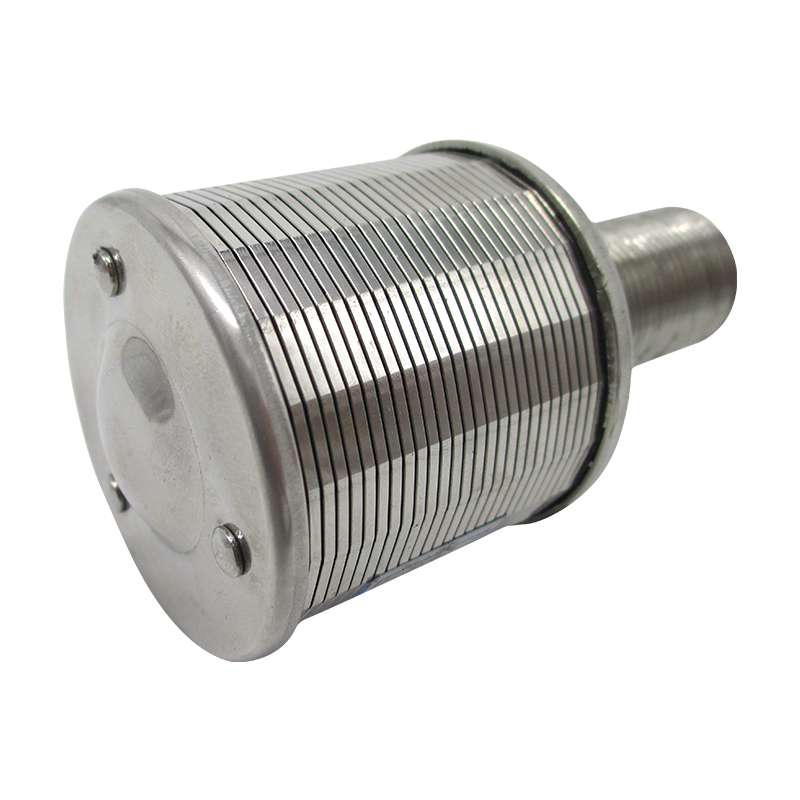

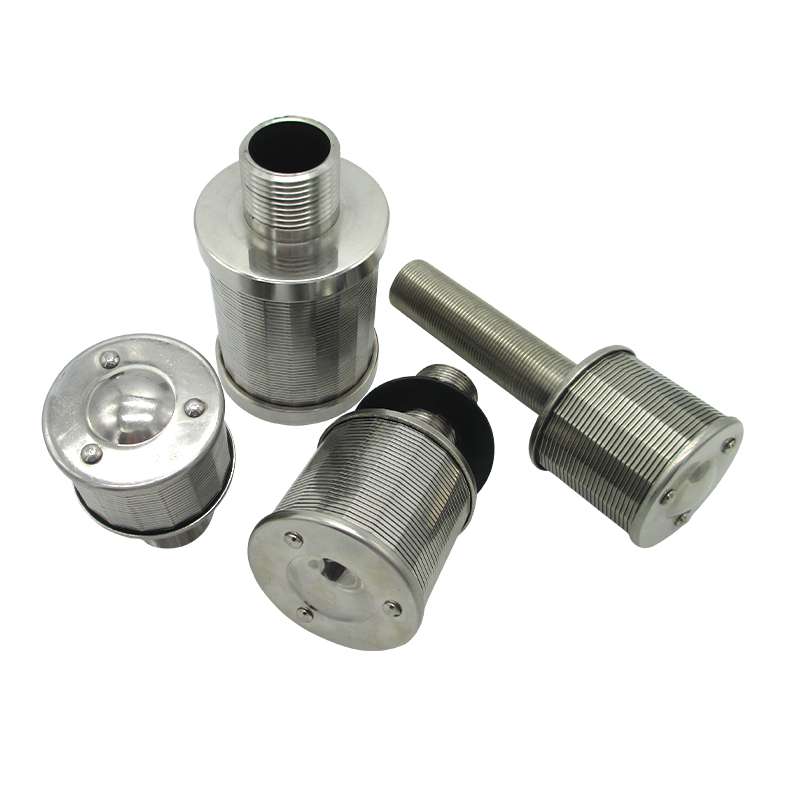

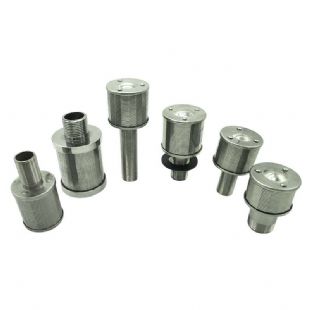

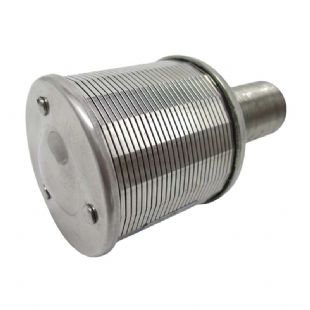

Details of Stainless Steel Water Filter Nozzle

Details of Wedge Wire Water Filter Nozzle Strainer Supplier

Wedge wire water filter nozzle strainer, have many called, for example, strainer nozzle, stainless steel filter nozzle, header lateral, stainless steel lateral arm, water &gas Strainers.

Water filter screen nozzle which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.

Wedge wire water filter nozzle strainer

Wedge wire water filter nozzle strainer



Application of Wedge Wire Water Filter Nozzle Strainer



Wedge wire water filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening,sugar mill, conversion of sea water into fresh water, the filter of food chemistry.



Feature of Wedge Wire Water Filter Nozzle Strainer



Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

structure of Wedge wire water filter nozzle strainer

other type Wedge wire water filter nozzle strainer

Specifications of Stainless Steel Water Filter Nozzle:

Wedge wire water filter nozzle strainer

Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
YUBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
YUBO-1.0 0.25 53 45 90/request 1.0
YUBO-1.5 0.25 57 45 90/request 1.5
YUBO-2.0 0.25 57 55 100/request 2.0
YUBO-2.5 0.25 70 55 100/request 2.5
YUBO-3.0 0.25 70 70 120/request 3.0
Note * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application
3. Thread according to requirement

Packaging and Transportation of Stainless Steel Water Filter Nozzle:

transportation of Wedge wire water filter nozzle strainer supplier
