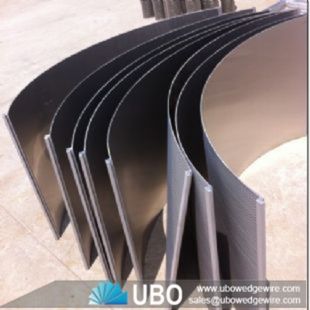

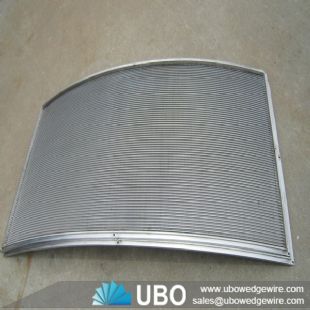

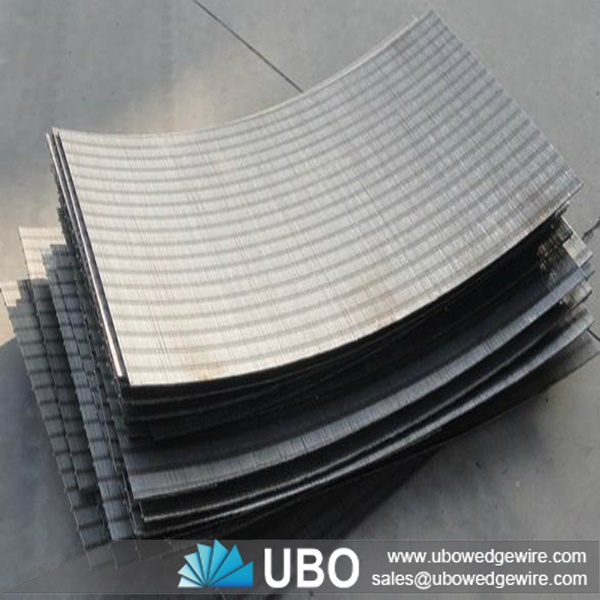

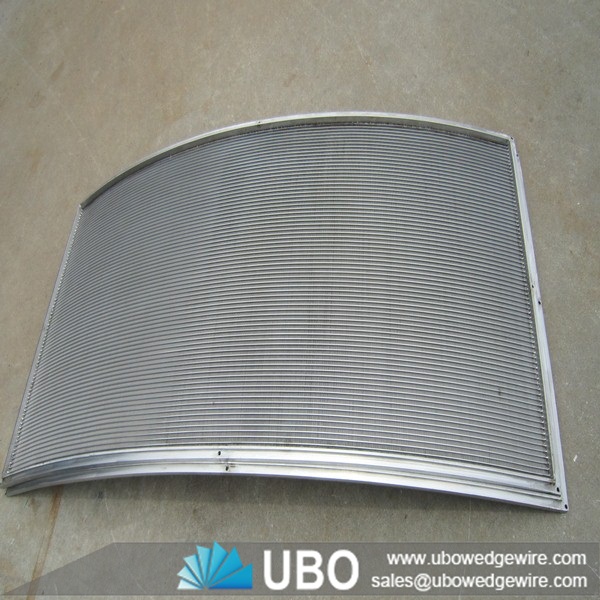

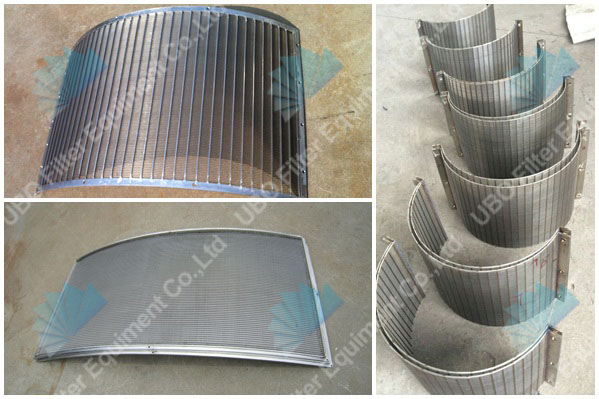

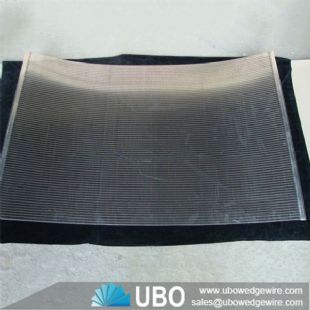

Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications
Category: | Sieve Bend Screen |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | sieve bend screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications
Wedge Wire DSM Sieve Bend Curved Screens Panel is also known as a parabolic, arc screen etc. Wedge Wire DSM Sieve Bend Curved Screens Panels are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.

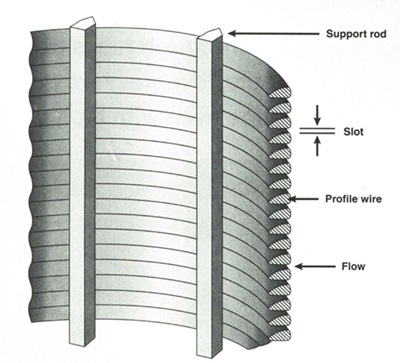

The Wedge Wire DSM Sieve Bend Curved Screens Panels are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each jointpoint of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.
Usages of Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications
1) Widely used in vairous kinds of medium filtering
2) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4) The organic solution recycling filter
Features of Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications
-- flatness to within tight tolerances
-- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
-- accurate distance between support profiles
-- possibility of different support wires in one screen
-- possibility of variable spacing between support wires in one screen
Specifications of Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications:
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
Arc Length Range |
Up to 6000mm |
||||||
Width Range |
Up to 6000mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2.5 |
2x3 |
2x4 |
3x5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5*2.5
2x3 |
2x3 |
3*5 |
3x5 |
3x5
4*6
5*8 |
Angle |
90°,120°,140°,150°,160° etc. |
||||||
Arc height |
10mm,15mm,20mm,50mm or depend on you size of screen panel. |
||||||
Frame |
No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. |
||||||
Note |
Customized according to requirement |

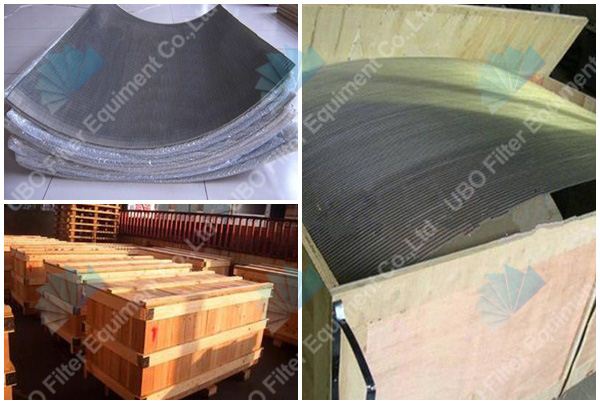

Packaging and Transportation of Wedge Wire DSM Sieve Bend Curved Screens Panel For Dewatering Applications:
