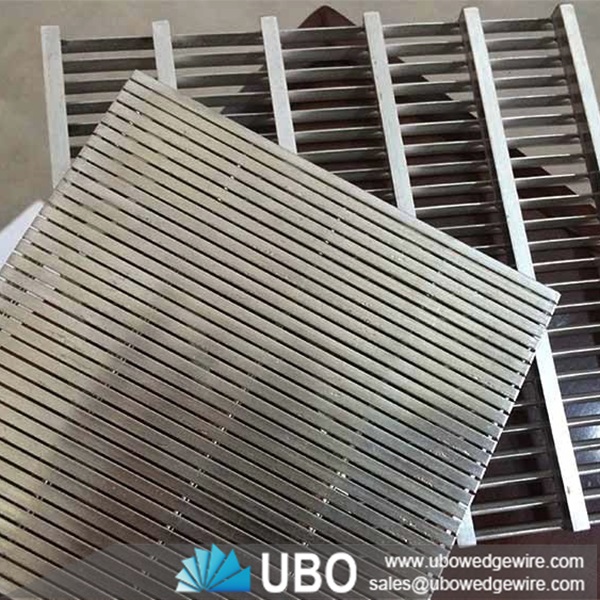

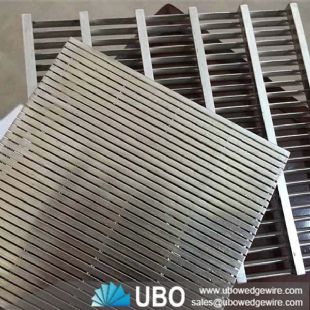

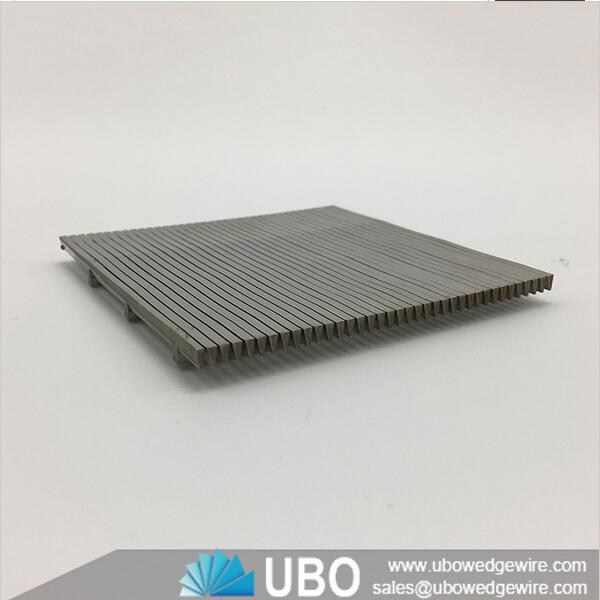

wedge wire wrapped continous slotted flat screen
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen panel |
Application: | water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire wrapped continous slotted flat screen
The wedge wire wrapped continous slotted flat screen can be manufactured with a variety of rectangular or round support rods. The wire width and relief angle is determined by weight per square foot and efficiency requirements. This screen decking magnifies vibration with drum-tight tension and withstands the violent vibrating action. These industrial profile screens are also used in fluid bed dryers, coolers and much more.
UBO Wedge Wire v wire screen panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel Wedge Wire screens on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your need.
Application of wedge wire wrapped continous slotted flat screen
Wedge wire wrapped continous slotted flat screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.
Advantages of wedge wire wrapped continous slotted flat screen
wedge wire wrapped continous slotted flat screen is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
Specifications of wedge wire wrapped continous slotted flat screen:
wedge wire wrapped continous slotted flat screen
|
|
Material:
|
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
|
Wedge Wire (mm):
|
Width : 1.50 1.80 2.30 3.00 3.30 3.70
|
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
|
Support Rod (mm):
|
Width : 2.30 3.00 3.30 3.70
|
Height : 2.70 3.60 4.70 5.60 6.30
|
|
Round : 2.50mm -- 6.0mm
|
|
Width ranging
|
from 1 inch -----45 inch.
|
Length:
|
lengths up to 6 meters.
|
Slot size:
|
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
|
Note: Other specifications can be customized according to your requirement
|
