Stainless Steel Square Hole Wedge Wire Screen Cylinder

More Views

Stainless Steel Square Hole Wedge Wire Screen CylinderStainless Steel Square Hole Wedge Wire Screen CylinderStainless Steel Square Hole Wedge Wire Screen Cylinder

Stainless Steel Square Hole Wedge Wire Screen Cylinder

Category:Wedge Wire Application
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

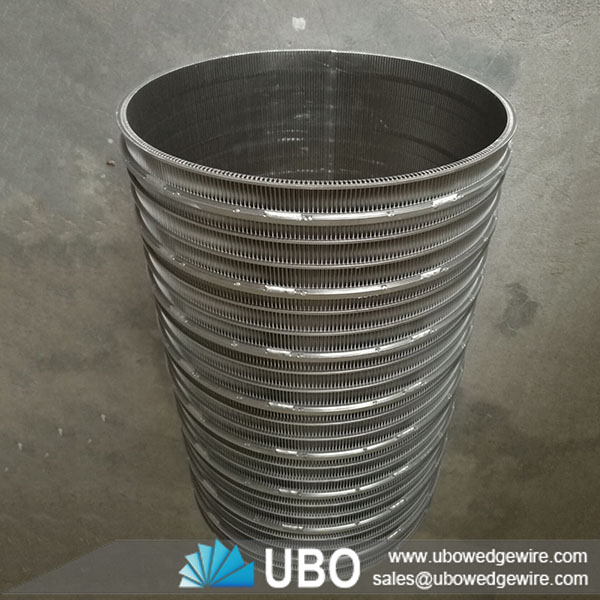

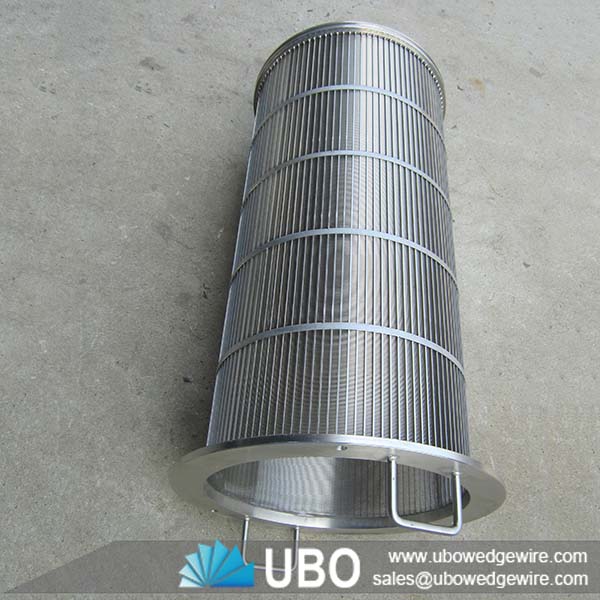

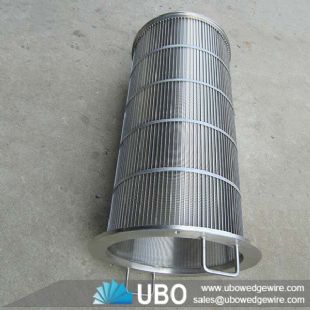

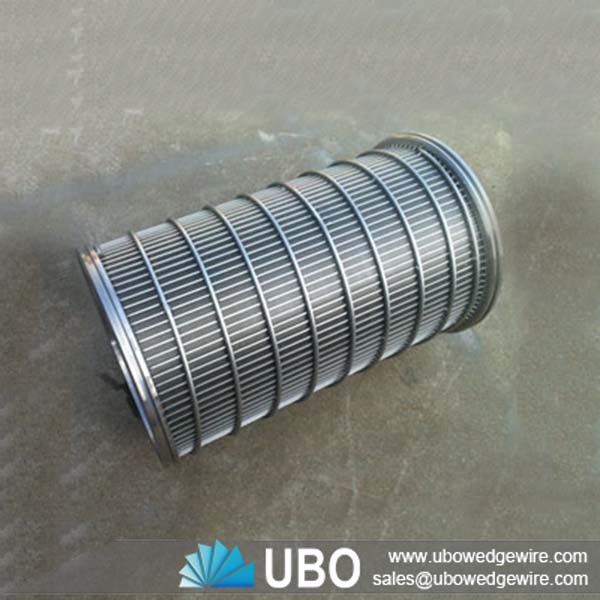

Details of Stainless Steel Square Hole Wedge Wire Screen Cylinder

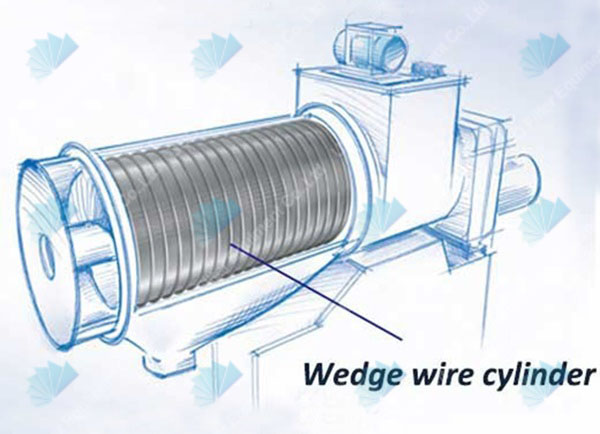

Stainless steel square hole wedge wire screen cylinders are highly efficient cylindrical rotating wedge wire screens used to separate solids from liquids or solids from solids. The flow of material is fed into the inside of the drum and the screen where the centrifuge rotating action forces any particles smaller than the slot size through the screen and any particles larger than the slot size off the end of the screen. The  wedge wire screen cylinder of the profile wires help minimise pegging and blinding. UBO supplies complete trommel units, including a motor and base frame, or a replacement screen for existing units.

Stainless steeel square hole wedge wire screen cylinder

Stainless steeel square hole wedge wire screen cylinder

Stainless steeel square hole wedge wire screen cylinder

Stainless steeel square hole wedge wire screen cylinder



Feature of Stainless Steel Square Hole Wedge Wire Screen Cylinder



• Wedge-shaped wires provide large open areas allowing material to flow through the screen

• Reduces pegging and blinding

• Custom made to flat and curved shapes, cylinders and cones

• Manufactured according to slot size (0.2mm to 20mm)

• Large selection of profile wires - varying head widths, heights and relief angles

• Variety of support rods - catering to light and heavy loads

• Selection of stainless steel graded panels including high corrosion resistant grades.



Applications of Stainless Steel Square Hole Wedge Wire Screen Cylinder



• Sugar industry

• Fruit processing industry

• Mineral processing

• Sewerage treatment

• Fertilizer processing

• Abattoirs

• Water treatment

Stainless steeel square hole wedge wire screen cylinder

Specifications of Stainless Steel Square Hole Wedge Wire Screen Cylinder:

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

According to request and the actual flange and strengthen bar

Normal ID

176mm, 200mm, 230mm, 255mm. According to request

Normal Length

600mm, 602mm, According to request

Normal Slot

0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.

Slot Direction

Radial Direction

Wedge Wire

0.75x1.5

1x2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6



2x4

3x5

3x6

5x6

3x5

3x6

5x6



End Finishing

Flange, , Metal Ring, etc

Note

Customized According To Requirement

Packaging and Transportation of Stainless Steel Square Hole Wedge Wire Screen Cylinder:

Package: in wood case.

Delivery time: 5-15 days
