Wedge Wire Pressure Screen Basket Cylinder

More Views

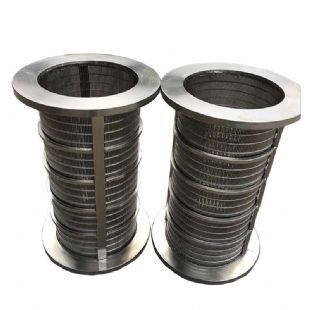

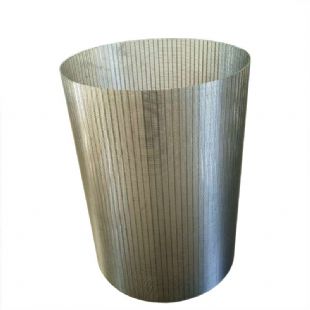

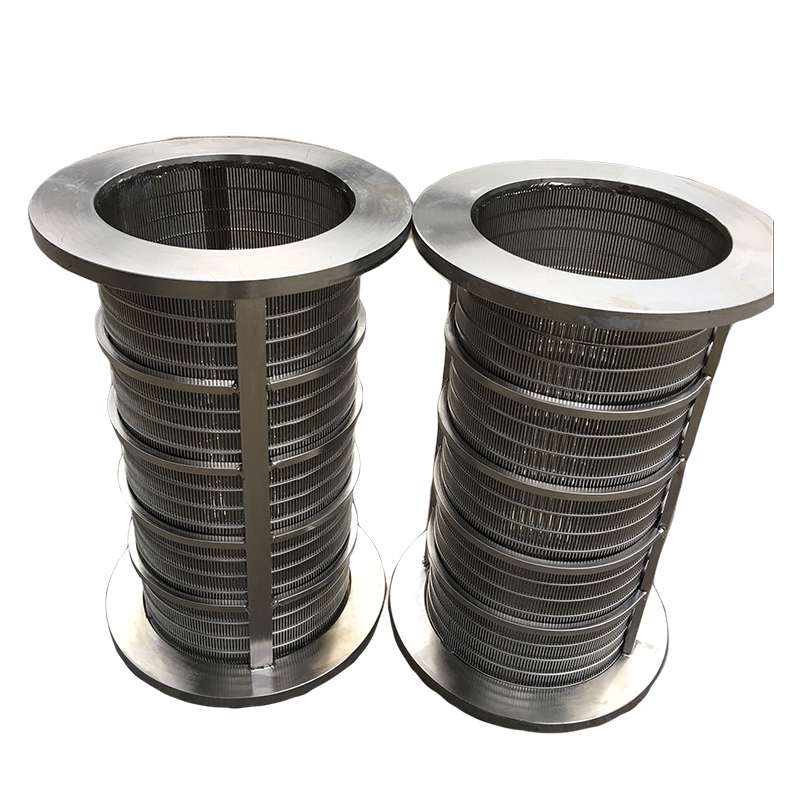

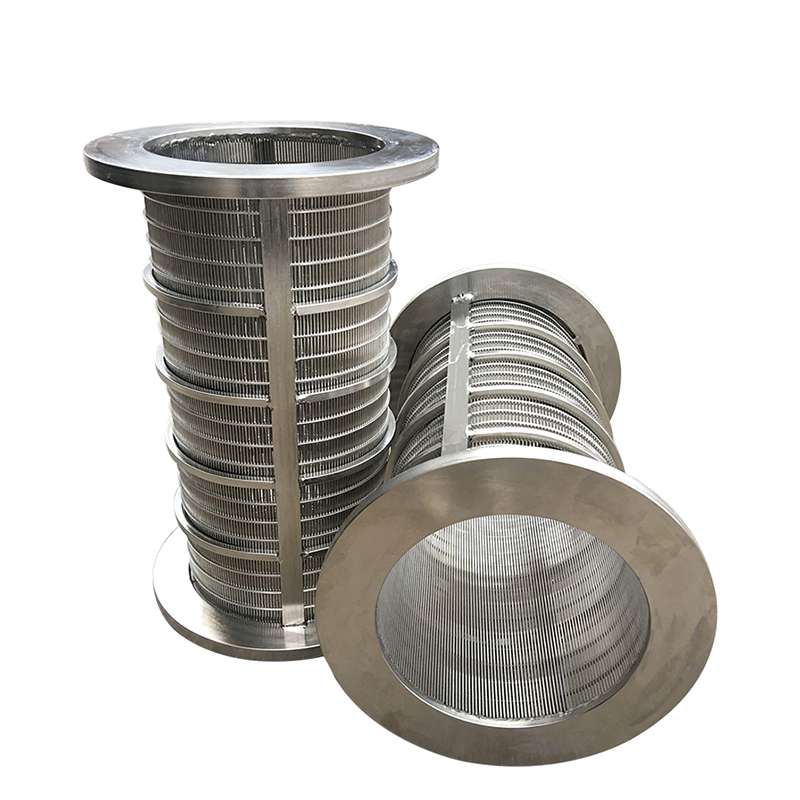

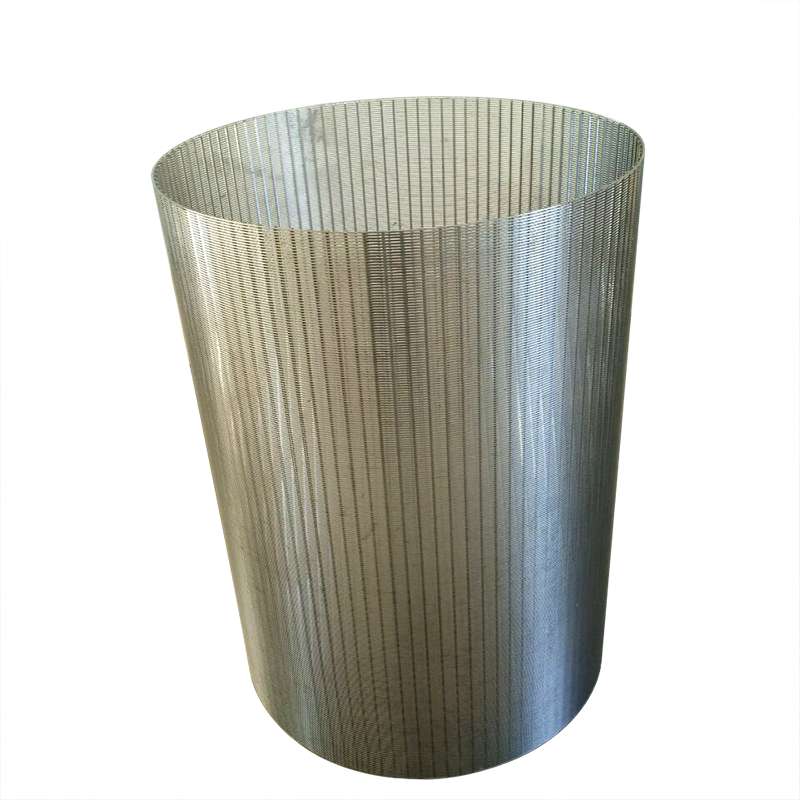

Wedge Wire Pressure Screen Basket CylinderWedge Wire Pressure Screen Basket CylinderWedge Wire Pressure Screen Basket Cylinder

Wedge Wire Pressure Screen Basket Cylinder

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:
Application:coal-cleaning plant, refining & petrochemical, paper pulp, etc industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Pressure Screen Basket Cylinder

The Wedge Wire Pressure Screen Basket Cylinder  is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

Wedge Wire Pressure Screen Basket Cylinder can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.

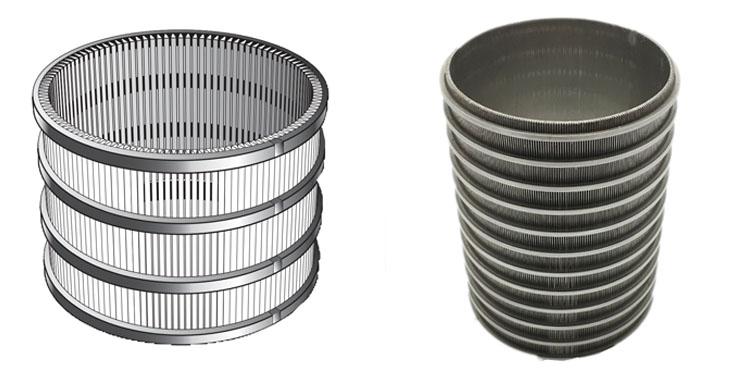

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp



Application of Wedge Wire Pressure Screen Basket Cylinder

The stainless steel wedge wire screen cylinders can be used in crossing flow sieves, vibrating screen decking, mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, architectural decorative food processing.



Features of Wedge Wire Pressure Screen Basket Cylinder

• Each filter constructed of 316 stainless steel and features a permanent handle for easy installation, removal and cleaning

• Manfre basket filter designed for maximum operating pressures of up to 150 psi (9.0 bar) and high flow rates

• Cleanable permanent media

• Optional ratings available down to 550 mesh (25 micron)

• Five standard ratings available from 20 to 100 mesh

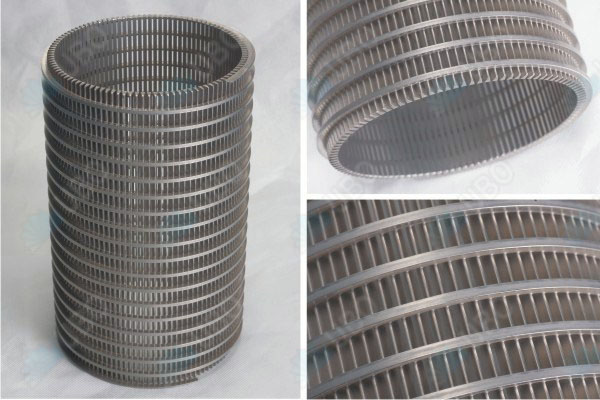

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Specifications of Wedge Wire Pressure Screen Basket Cylinder:

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

According to request and the actual flange and strengthen bar

Normal ID

176mm, 200mm, 230mm, 255mm. According to request

Normal Length

600mm, 602mm, According to request

Normal Slot

0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.

Slot Direction

Radial Direction

Wedge Wire

0.75x1.5

1x2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6


2x4

3x5

3x6

5x6

3x5

3x6

5x6


End Finishing

Flange, , Metal Ring, etc

Note

Customized According To Requirement

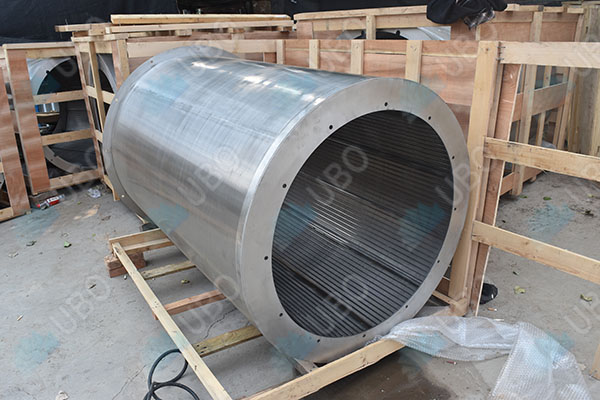

Packaging and Transportation of Wedge Wire Pressure Screen Basket Cylinder:

Wedge Wire Pressure Screen Basket Cylinder for Paper Pulp
