Ion Exchange Wedge Wire Stainless steel Resin Trap strainer

More Views

Ion Exchange Wedge Wire Stainless steel Resin Trap strainerIon Exchange Wedge Wire Stainless steel Resin Trap strainerIon Exchange Wedge Wire Stainless steel Resin Trap strainer

Ion Exchange Wedge Wire Stainless steel Resin Trap strainer

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Ion Exchange Wedge Wire Stainless steel Resin Trap strainer

Ion exchange Wedge Wire resin trap strainers are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

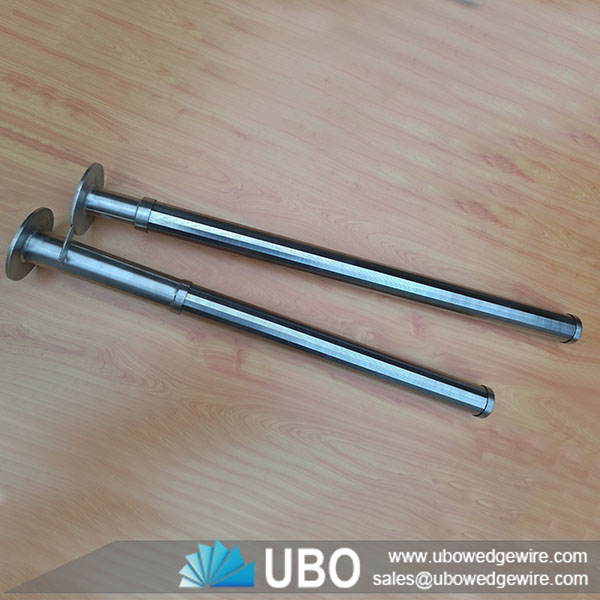

Ion exchange Wedge Wire wire resin trap strainer

Ion exchange Wedge Wire wire resin trap strainer

Feature of Ion exchange Wedge Wire screen resin trap strainer

· Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Applications of Ion exchange Wedge Wire screen resin trap strainer

Ion exchange Wedge Wire screen resin trap strainer predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

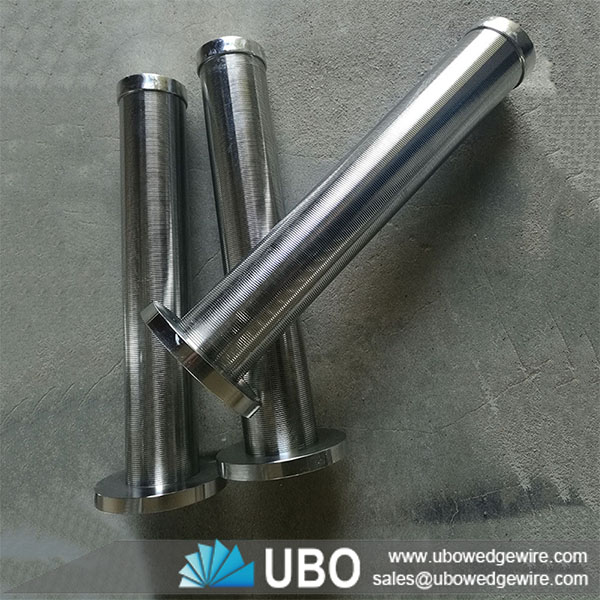

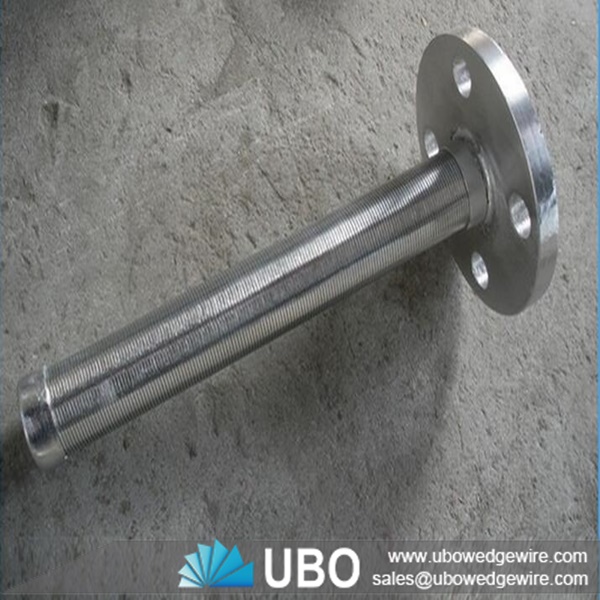

Ion exchange Wedge Wire wire resin trap strainer

Ion exchange Wedge Wire wire resin trap strainer

Specifications of Ion Exchange Wedge Wire Stainless steel Resin Trap strainer:

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

25mm-2000mm

ID Range

19mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

3*5

3*5

Connection

Flange and thread

End Type

Closed plate

Note

Customized According To Special Requirement

Packaging and Transportation of Ion Exchange Wedge Wire Stainless steel Resin Trap strainer:

Transportation of Ion exchange Wedge Wire wire resin trap strainer
