wedge wire strainer for liquid filtration

More Views

wedge wire strainer for liquid filtrationwedge wire strainer for liquid filtrationwedge wire strainer for liquid filtration

wedge wire strainer for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire strainer for liquid filtration

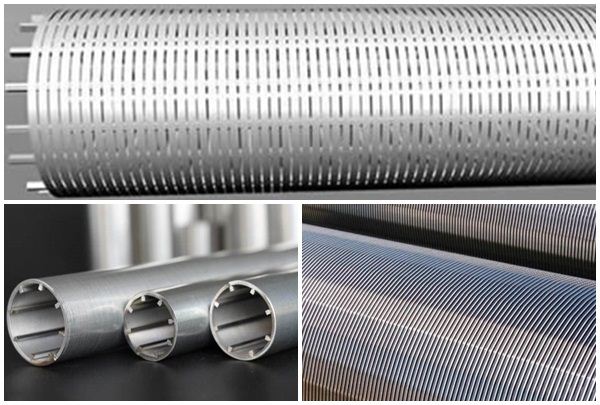

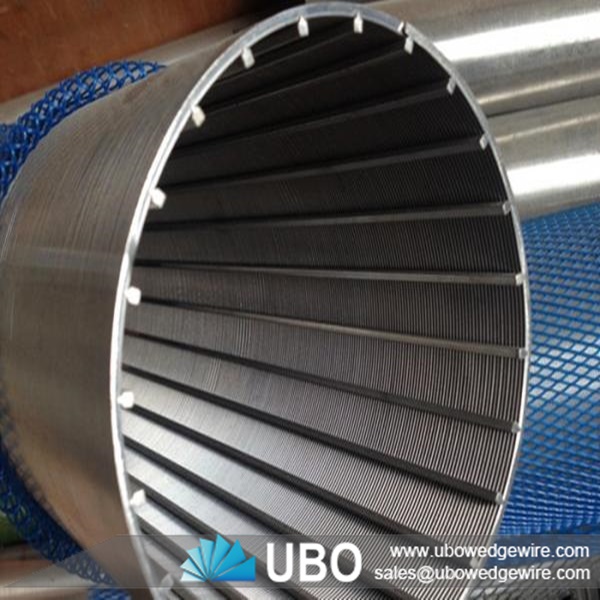

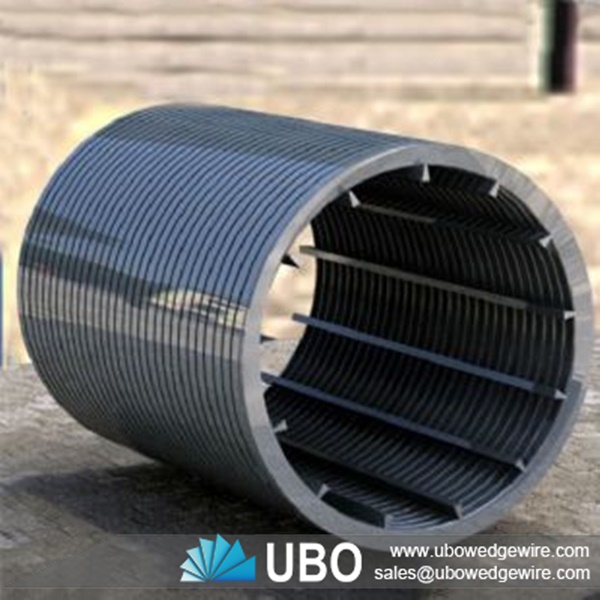

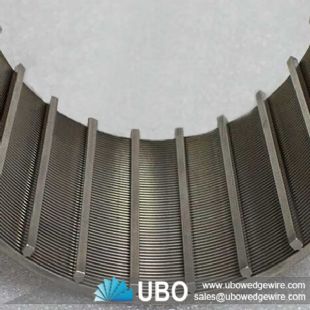

wedge wire strainer is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.

Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.

This spacing gives passage for water to enter.

Features of wedge wire strainer for liquid filtration

1) The slotted liner is a robust and cost-effective solution for long completions or low productivity wells.

2) We offer straight and keystone slot type in the wide range of slotting patterns to create the required open area.

Application of wedge wire strainer for liquid filtration

- Separating;

- Sizing;

- Straining;

- De-watering;

- Filtering;

- Drying;

- Water intake;

- Media retention

wedge wire strainer for liquid filtration

Specifications of wedge wire strainer for liquid filtration:

Material: stainless steel or as your request

Length:max 6 meters

Wire Diameter: 3.5"or as your request

Slot size: 300µm

Open area of screen: 12%

Shape: Panel or round shape

SIZE
(inch)
O.D
(mm)
SLOT
(inch)
LENGTH
(m)
Collapse
Strength
(psi)
Tensile
Weight
(ton)
Wire size
(mm)
RODS (mm)
4 117 0.040 3 395 6 2.2*3.0 3.8mm/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50

Packaging and Transportation of wedge wire strainer for liquid filtration:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
