wedge wire sieve bend screen for liquid filter

More Views

wedge wire sieve bend screen for liquid filter

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Construction industry,Bathroom drainage,Mineral processing,Water treatment,Food processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire sieve bend screen for liquid filter

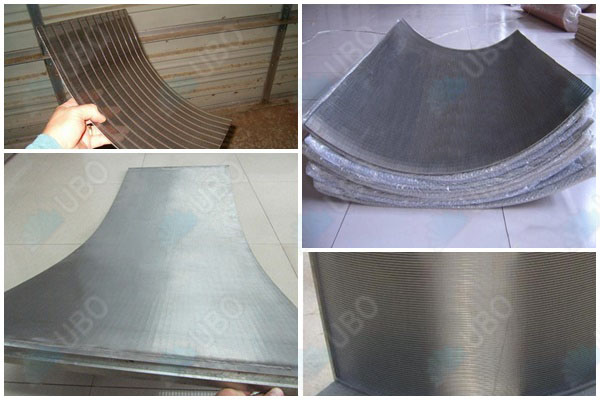

wedge wire sieve bend screen also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.

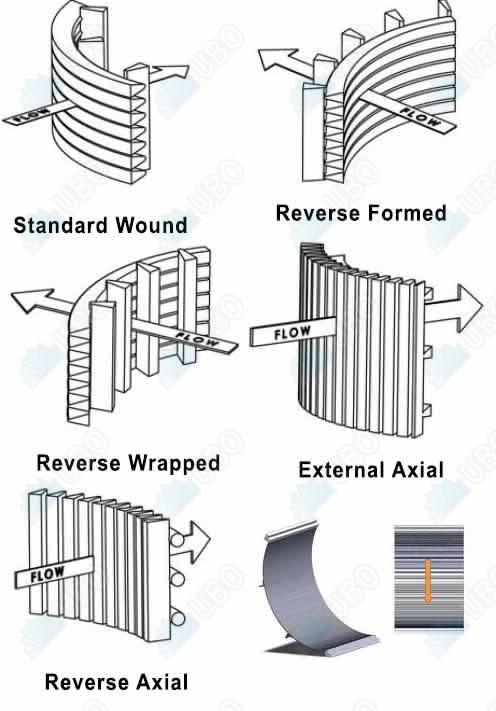

Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Advantagesof wedge wire sieve bend screen for liquid filter

-- High strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Fairly well precision and roundness;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap.

      wedge wire sieve bend screen for liquid filter

Specifications of wedge wire sieve bend screen for liquid filter:

wedge wire sieve bend screen



Profile Wire Width

Relief Angle

Typical Support Rod

1/16”  (.063”)

13 degrees

Small round rod

3/32”  (.093”)

13 degrees

Round or Rectangular bar

1/8” (.125”)

13 or 5 degrees

Round or Rectangular bar



Packaging and Transportation of wedge wire sieve bend screen for liquid filter:

Based on the quantity of wedge wire sieve bend screen, we will found the most available delivery way for client,Gurantee client receive goods in time .

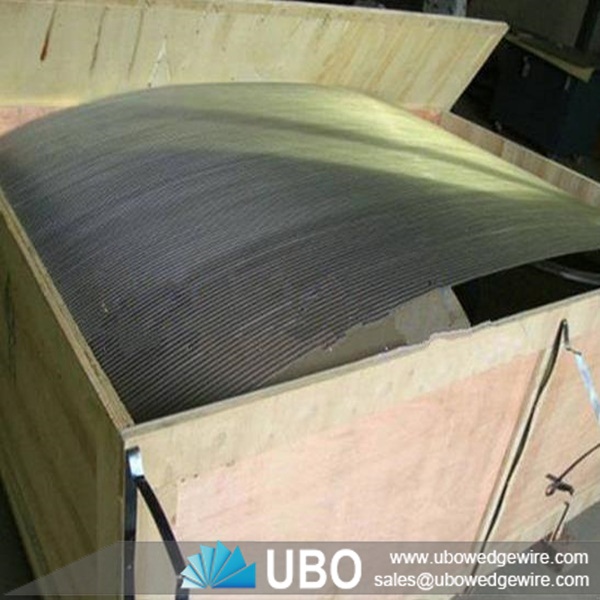

About the package material:normally we use lignifiedwood wooden case with water-proof bag,make sure that client see their goods in good quality and complete quantity !
