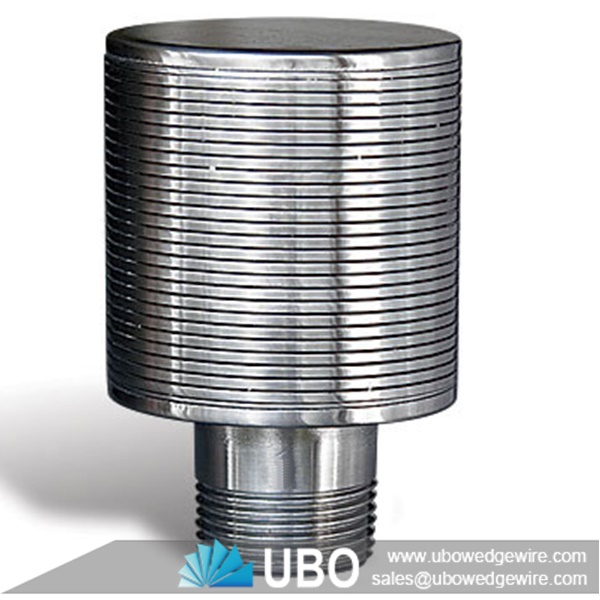

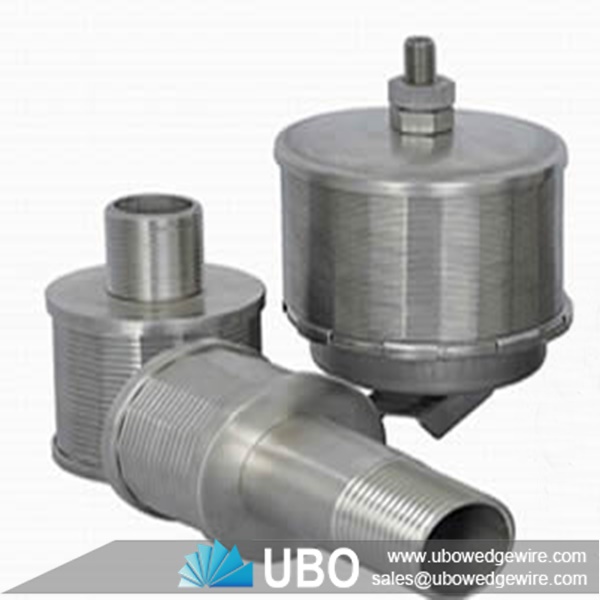

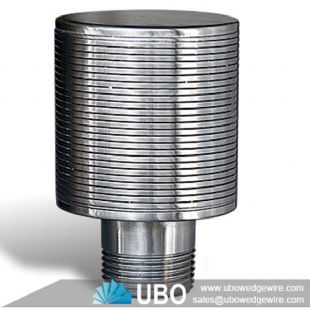

wedge wire screen v-wire screen filter nozzle for water

More Views

wedge wire screen v-wire screen filter nozzle for waterwedge wire screen v-wire screen filter nozzle for waterwedge wire screen v-wire screen filter nozzle for water

wedge wire screen v-wire screen filter nozzle for water

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen v-wire screen filter nozzle for water

UBO wedge wire screen v-wire screen filter nozzle for water, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system.

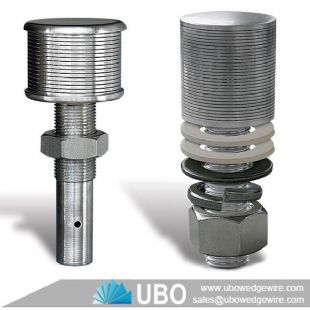

The wedge wire element in a nozzle is a screen pipe. Profile Screen Nozzles are closed on one side and have a threaded fitting on the other. One rubber shim, one steel shim and two thin nuts of the same material for a nozzle.

UBO can provides you with a wedge wire screen which designed by your own specifications manufactured from either grade 304 stainless steel or grade 316 stainless steel. Length, width, shape and spacing of profile wire are made to meet your special application requirements.

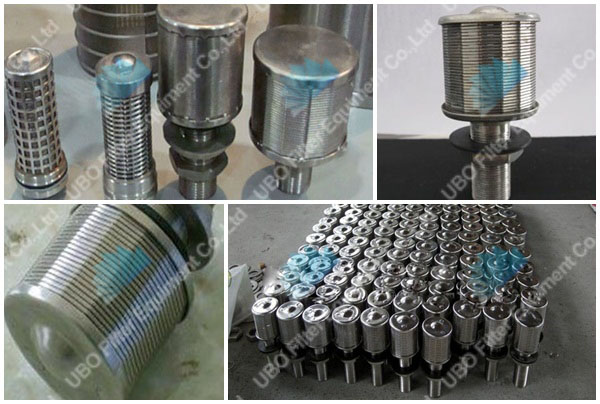

wedge wire screen v-wire screen filter nozzle for water

Usages of wedge wire screen v wire screen filter nozzle for water

Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

Advantage of wedge wire screen v wire screen filter nozzle for water

• high strength compared to plastic nozzles

• flexibility in design

• strong construction (self supporting)

• large open area

• plug-resistant slot design

wedge wire screen v-wire screen filter nozzle for water

Specifications of wedge wire screen v-wire screen filter nozzle for water:

  • Material:stainless steel
  • OD is 76mm as your request
  • The Filtering slot is 700micron.
  • Thread 5/16" BSW thread
  • Height is 50 mm
  • One end is opening
  • Everage filtering slot, tolerance + - 0.02mm
  • Strong welding with nice welding
  • Perfect roundness with smooth surface


 Data of Wedge wire screen part.


No.

(mm)TYPE

OD
(mm)

 ID
(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

wedge wire screen v-wire screen filter nozzle for water

Packaging and Transportation of wedge wire screen v-wire screen filter nozzle for water:
