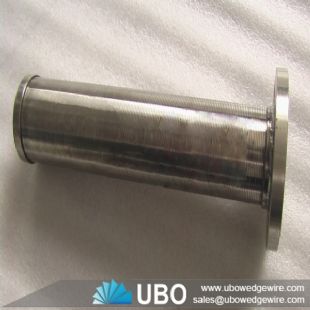

wedge wire screen strainer resin trap filter for water filtration

More Views

wedge wire screen strainer resin trap filter for water filtrationwedge wire screen strainer resin trap filter for water filtrationwedge wire screen strainer resin trap filter for water filtration

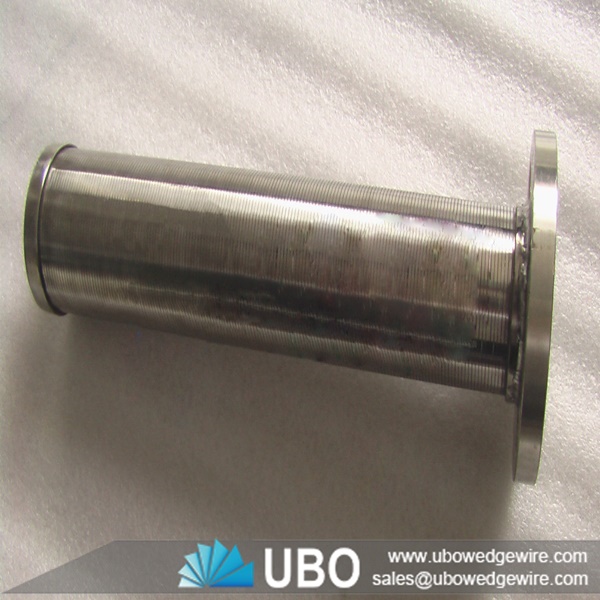

wedge wire screen strainer resin trap filter for water filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen strainer resin trap filter for water filtration

UBO wedge wire screen strainer resin trap filter provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

wedge wire screen strainer resin trap filter for water filtration

Features of wedge wire screen strainer resin trap filter for water filtration

The wedge wire element in a Resin Trap/ Strainer is normally a slot tube, but can also be a cylinder. A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.

Principle of wedge wire screen strainer resin trap filter for water filtration

A resin trap/strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low, so that cleaning can be done during flow interruption.

Application of wedge wire screen strainer resin trap filter for water filtration

A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Advantages of wedge wire screen strainer resin trap filter for water filtration

very precise slots for perfect particle retention combined with minimum obstruction of the process flow. Flexibility in design. Strong construction (self supporting). Large open area. Plug-resistant slot design.

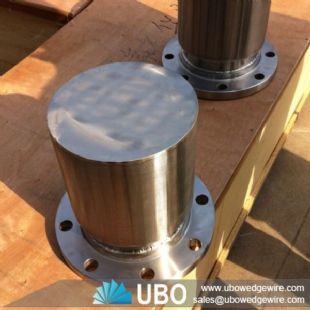

wedge wire screen strainer resin trap filter for water filtration

Specifications of wedge wire screen strainer resin trap filter for water filtration:

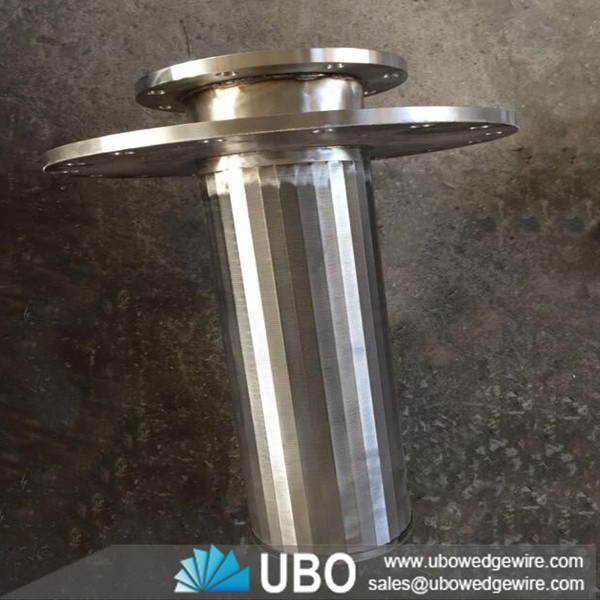

wedge wire screen strainer resin trap filter for water filtration



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.306.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
