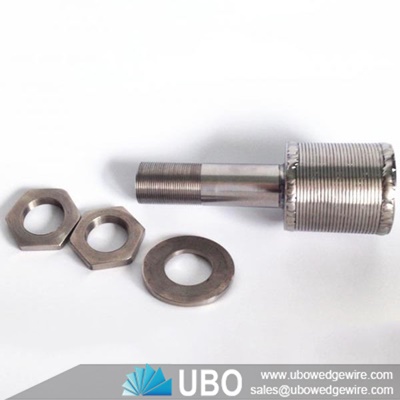

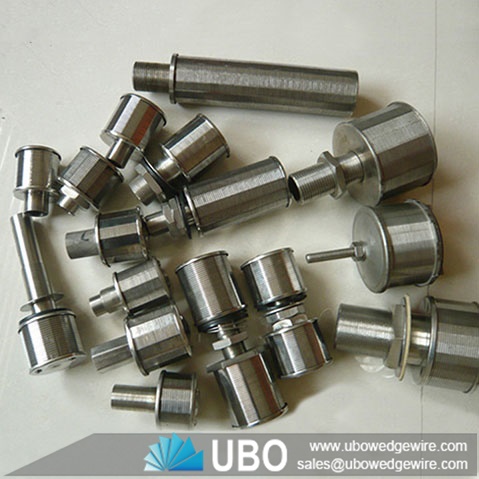

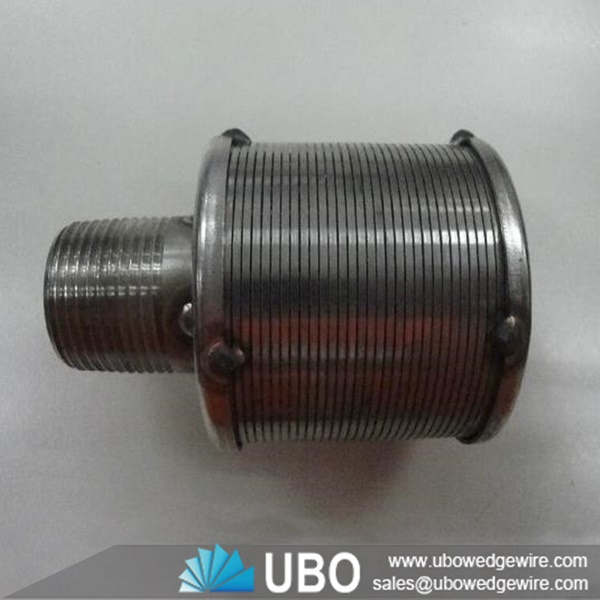

wedge wire screen stainless steel sand filter screen nozzle

More Views

wedge wire screen stainless steel sand filter screen nozzlewedge wire screen stainless steel sand filter screen nozzlewedge wire screen stainless steel sand filter screen nozzle

wedge wire screen stainless steel sand filter screen nozzle

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Filter Nozzle
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen stainless steel sand filter screen nozzle

We use wedge shaped profile wire in order to make the slot v shaped.It can stop the impurities very well. The wedge wire was welded on the support wire well proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities. After work for a period of time, the filter can be back flush. It can use for many times.

Application for wedge wire screen stainless steel sand filter screen nozzle:

1) Water well and oil/gas well

2) water and waste water treatment

3) Water supply

4) Petro Chemical

5) Food and beverage

6) Pulp and paper

7) Sugar and Starch

Advantages for wedge wire screen stainless steel sand filter screen nozzle:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Technology for wedge wire screen stainless steel sand filter screen nozzle:

UBO introduce advanced korea technology, the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents

wedge wire screen stainless steel sand filter screen nozzle

Specifications of wedge wire screen stainless steel sand filter screen nozzle:

wedge wire screen stainless steel sand filter screen nozzle

Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5...

Packaging and Transportation of wedge wire screen stainless steel sand filter screen nozzle:

wedge wire screen stainless steel sand filter screen nozzle
