Quality Wedge Wire Screen Manufacturer in China

wedge wire screen resin traps supplier

More Views

wedge wire screen resin traps supplierwedge wire screen resin traps supplierwedge wire screen resin traps supplier

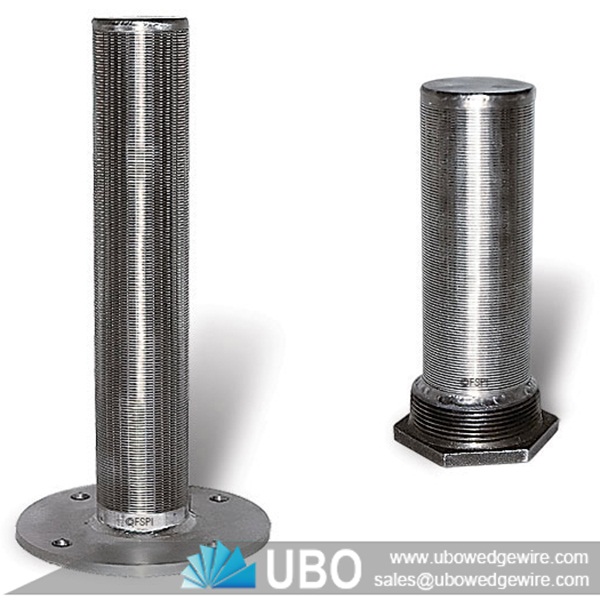

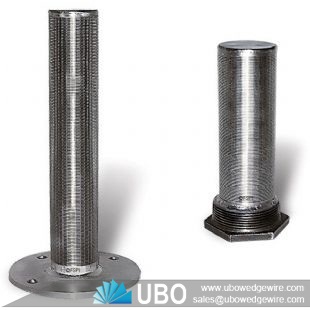

wedge wire screen resin traps supplier

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:Food & Beverage Screens,Mineral & Aggregate Processing,OEM Screen Components,Pulp & Paper Screens,Refining & Petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen resin traps supplier

      Resin traps are custom designed to minimize pressure loss through the screen. They are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. Pepso offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Application for wedge wire screen resin traps supplier:

Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Water Process & Fluid Treatment
Water/oil Well

Characteristics for wedge wire screen resin traps supplier:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Resin traps can prevent:

Loss of expensive resins
Cross-contamination of resins
Damage to pumps, valves, etc. further down process disturbance
Environmental damage incurred by loss of resins.

wedge wire screen resin traps supplier

Specifications of wedge wire screen resin traps supplier:

wedge wire screen resin traps supplier

Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

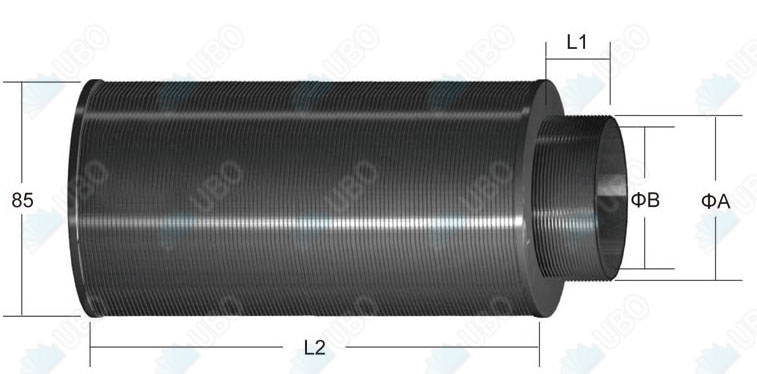

wedge wire screen resin traps supplier

Type
Slots mm
ΦA
ΦB
L1mm
L2mm
AM
0.05,
0.1,
0.2,
0.3,
0.5,
1.0
G2"
G1 1/2"
G2"
G2"
Φ60
1 1/2"NPT
2 1/2"
Φ50
Φ38
1 1/4"NPT
1 1/2"NPT
G2"
1 1/4"NPT
Φ60
30,55
30,55
30
30
30
30
20
73, 126, 180, 231, 284, 338, 389

Packaging and Transportation of wedge wire screen resin traps supplier:

wedge wire screen resin traps supplier
