wedge wire screen resin trap for filtration

Wedge wire screen resin trap predominantly used in water treatment processes namely in Ion Exchange and other numerous media filter systems, Completion Products offers a Resin Trap Screen.

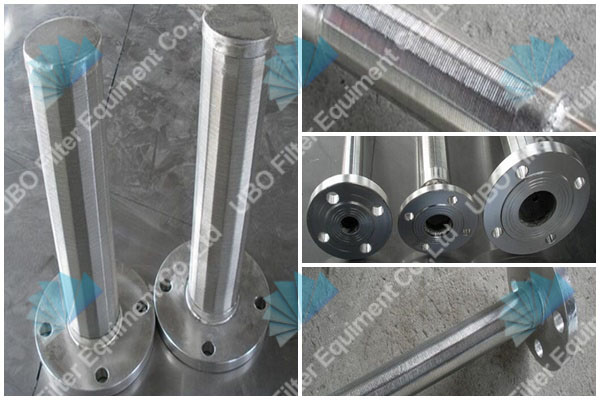

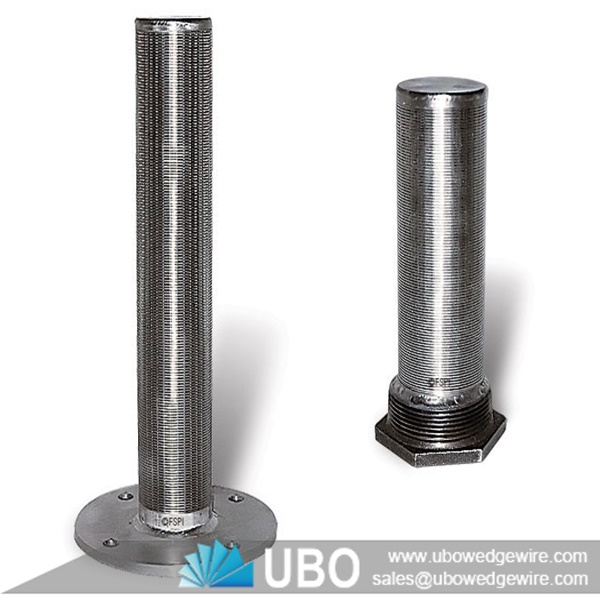

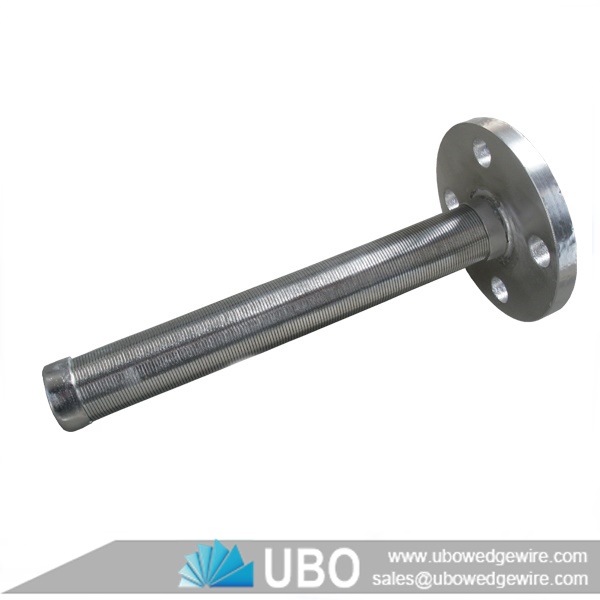

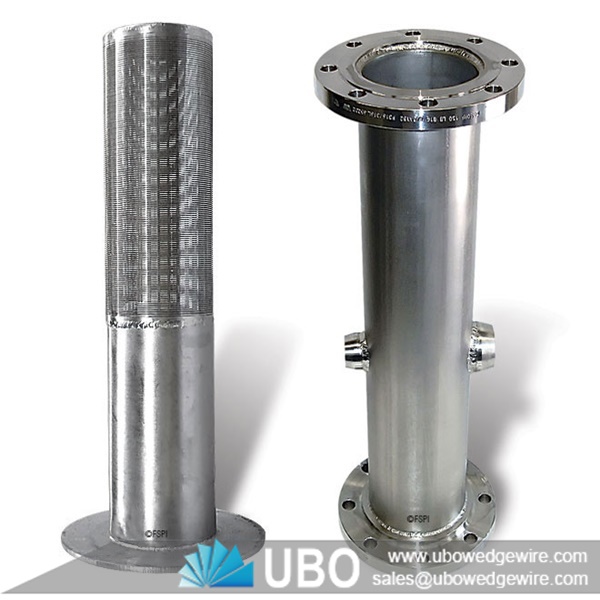

This Wedge Wire screen resin trap system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor. The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

Features of wedge wire screen resin trap for filtration

-- High mechanical strength

-- High wear resistance

-- High impact resistance

-- Larger open area

-- Self supporting structure

-- Non plugging slot design

-- Lower operation and maintenance cost

Applications of wedge wire screen resin trap for filtration

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Material:stainless steel 304 316L

Wire diameter:1.5*2mm,2*3mm.etc

Length:0.5m or as per your request

Diameter:80mm or as per your request

Application:

water treatment, resin traps, oilfield, mining, food industry, chemical industry, papermaking industry, decoration Surface treatment:polishing,chroming

Product structure:wedge wire screen,pipe,cap.
