wedge wire screen header lateral for filtration

More Views

wedge wire screen header lateral for filtrationwedge wire screen header lateral for filtrationwedge wire screen header lateral for filtration

wedge wire screen header lateral for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen header lateral for filtration

UBO is specializing in wedge wire screen and other wedge wire filtration products founded in 1986. For many years development in technique and equipments, now our preponderant products including wedge wire screen cylinder, continuous slot screen, filter strainers, header & hub lateral, resin traps, sieve bend screen, etc.

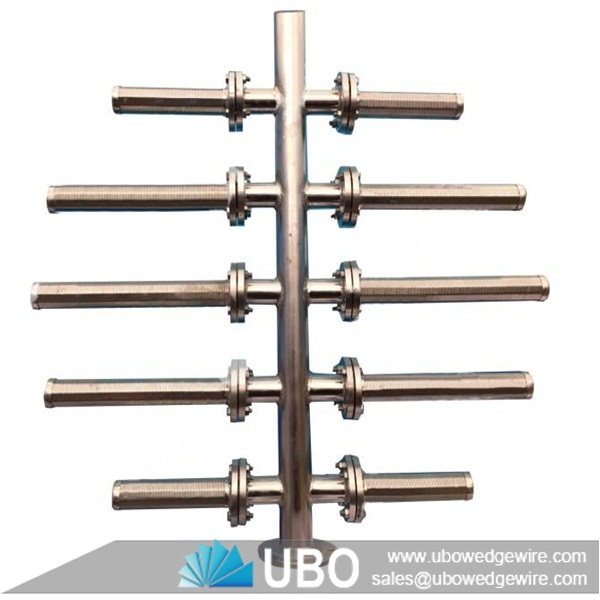

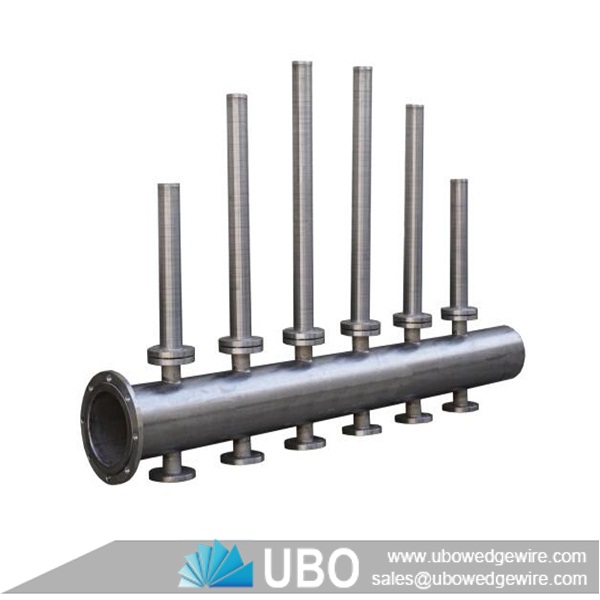

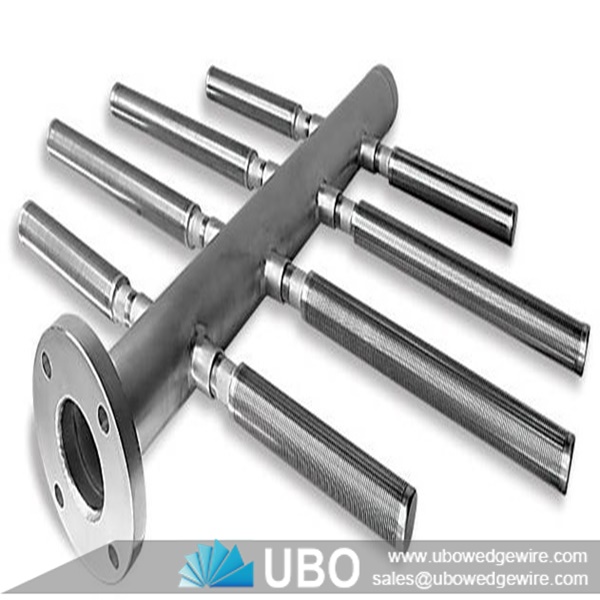

The header lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design makes it possible to suit different applications and machines.

Usages of wedge wire screen header lateral for filtration

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Advantage of wedge wire screen header lateral for filtration

1) Uniform slot, no leakage of resin or material
2) High opening area, high flow area which can meet large flow requirement
3) Large liquid distribution area and uniform distribution
4) Diversified structure which can meet the requirements of the container
5) High pressure tolerance of branch pipe
6) High quality material ensures the longer life

wedge wire screen header lateral for filtration

Specifications of wedge wire screen header lateral for filtration:



Type

Slot

mm

φA

mm

φB

mm

L1

mm

L2

mm

L3

mm

Branch Qty.

Flange 1 DN

mm

Flange 2 DN

mm

Length L



  99, 127, 157,

  199,224, 254,

284, 326, 351,

381, 411, 453,

480, 508, 538,

 580, 607, 635, 665, 707, 734,

762, 792, 834,

861, 889, 919,

961, 988, 1016,

1046, 1088 etc









General

0.02

0.05

0.1

0.2

0.3

0.5

1



32

40

57

76

89

76

89

108

133

159

219

1100

1280

1500

1700

1800

2000

2500

3200



420

480

600

680

720

1100

1280

1500

1700

1800

6

8

10

12



25

32

40

50

65

80

50

65

80

100

125

150

wedge wire screen header lateral for filtration
