wedge wire screen for refining petrochemical

More Views

wedge wire screen for refining petrochemicalwedge wire screen for refining petrochemicalwedge wire screen for refining petrochemical

wedge wire screen for refining petrochemical

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen for refining petrochemical

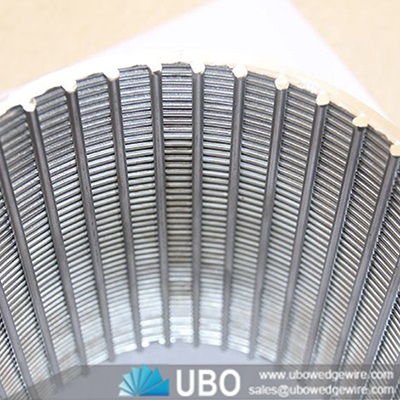

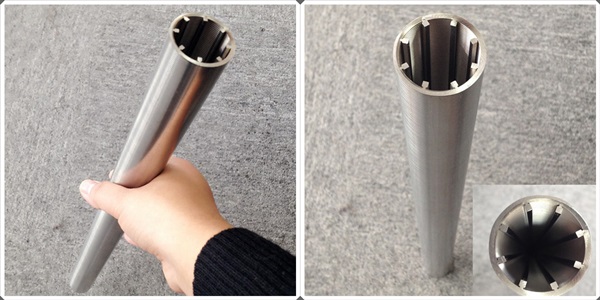

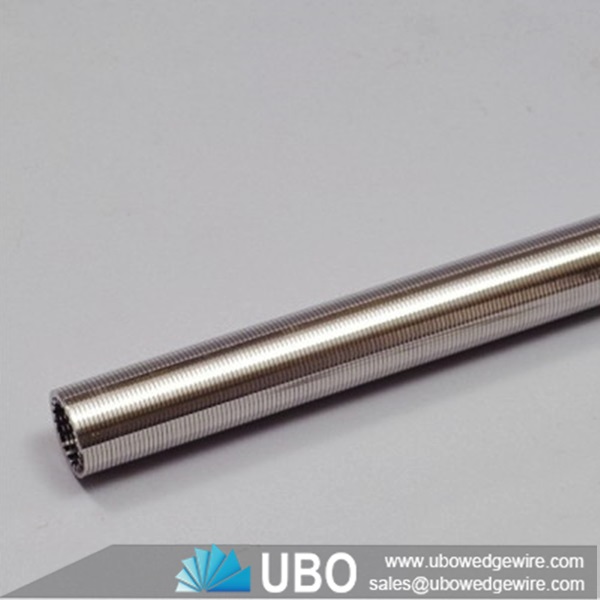

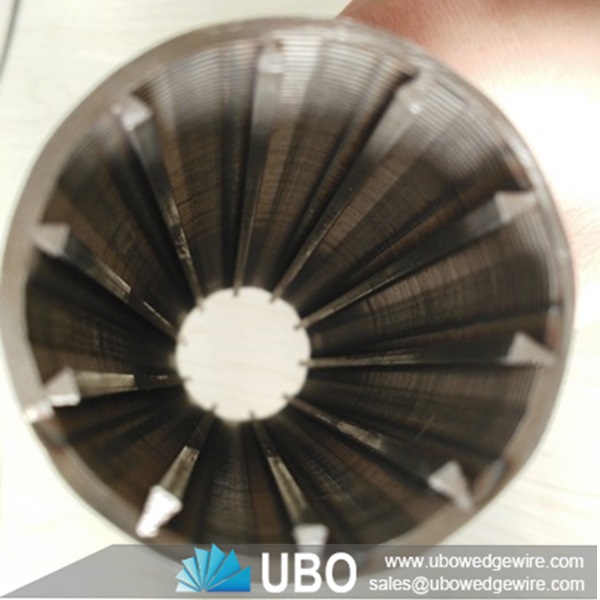

wedge wire screen for refining petrochemical is made up of rods and warp. The rod can beround wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

wedge wire screen for refining petrochemical

Applications for wedge wire screen pipe for refining petrochemical:

The stainless steel wire wrapped screen pipes are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Wedge wire filters are the most popular mining screen due to its strength.

Advantages for wedge wire screen pipe for refining petrochemical:

-- wedge wire screen for refining petrochemical

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Manufacturer for wedge wire screen pipe for refining petrochemical:

The wedge wire water well screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.
The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (Vshaped wire).
Water well screens have a structure and high open area, as well as accurate slot dimension.

At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Working Principle for wedge wire screen pipe for refining petrochemical:

Inside the well, the all-welded wedge wire water screen is placed into the sand stratum. Then the gravel slurry together with the oil will be pumped into the space between the screen pipe and well.

Through the multistage filtering, sand and gravel will be removed. Simultaneously, oil will get into the pipe from the holes, and then it will be continuously lifted to the ground. The sand will be controlled to turn back to the sand stratum, thus ensuring the normal production of the well. Moreover, the screen has no damage to the oil layer.

wedge wire screen for refining petrochemical

Specifications of wedge wire screen for refining petrochemical:

wedge wire screen for refining petrochemical


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of wedge wire screen for refining petrochemical:

wedge wire screen for refining petrochemical
