Quality Wedge Wire Screen Manufacturer in China

wedge wire screen filter pipe for industry filtration

More Views

wedge wire screen filter pipe for industry filtrationwedge wire screen filter pipe for industry filtrationwedge wire screen filter pipe for industry filtration

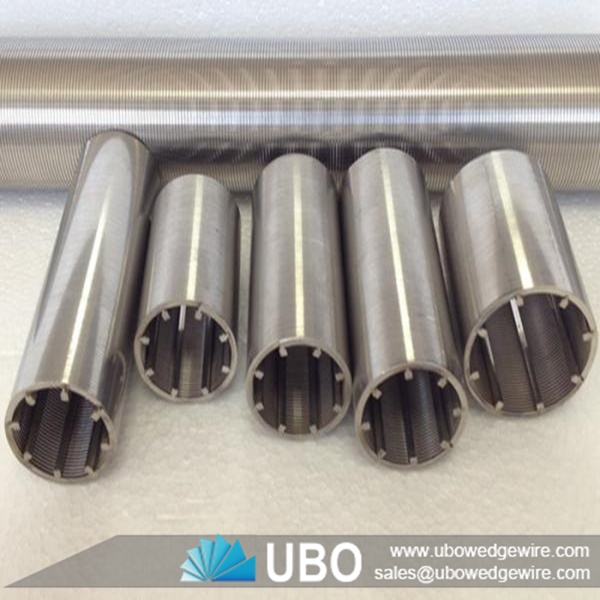

wedge wire screen filter pipe for industry filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

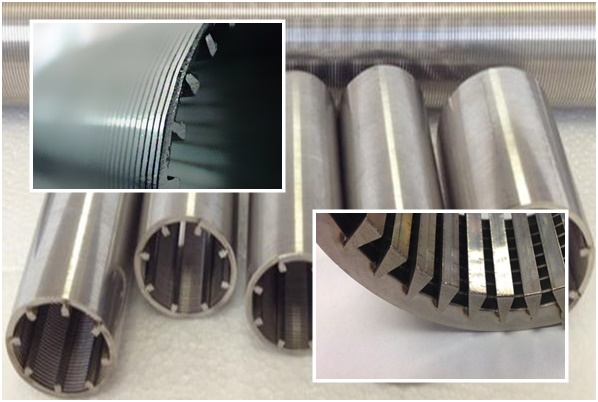

Details of wedge wire screen filter pipe for industry filtration

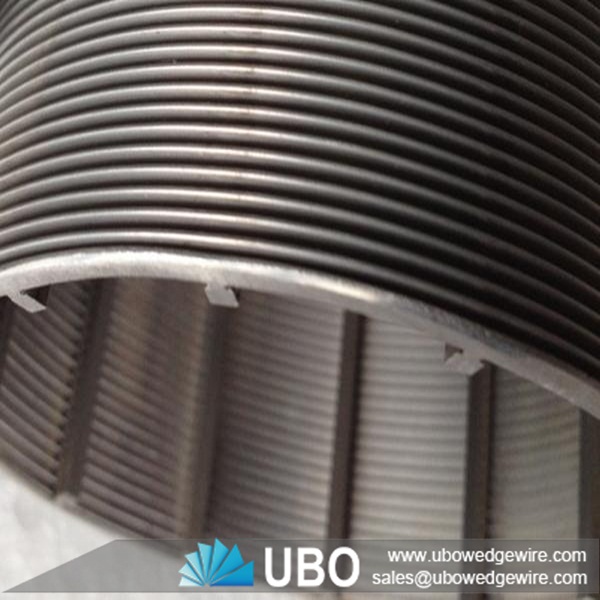

The wedge wire screen filter pipe is made of SS "V"shaped and SS "V"shaped or SS "V"shaped and SS rod ,and SS "V"shaped and SS "Square "shaped rod with an unique weldeding process, offering great strenght .precision, long service life. The Screen have a perfectly flat and smoothsurface with rectangular openings , also named v wire screen pipe,Wedge Wire screen pipe or wegde wire .

Characteristic of wedge wire screen filter pipe for industry filtration

1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Application of wedge wire screen filter pipe for industry filtration

1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter

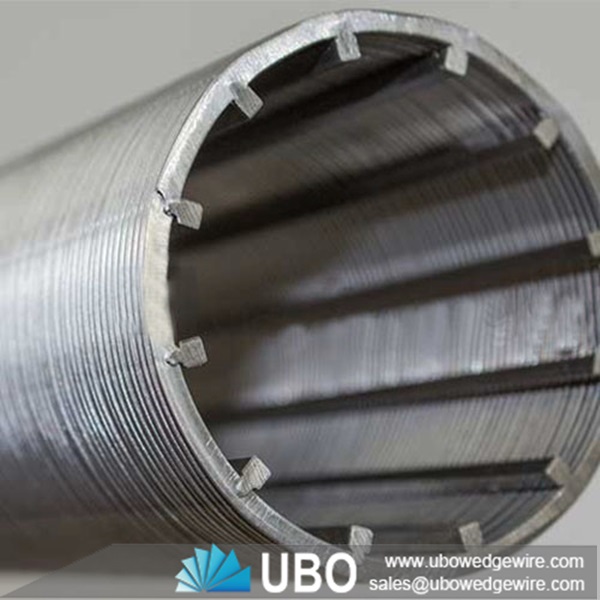

         wedge wire screen filter pipe for industry filtration

Specifications of wedge wire screen filter pipe for industry filtration:

Specification
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt/Width Can be customized as your request
Diameter 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.
