Quality Wedge Wire Screen Manufacturer in China

wedge wire screen filter panel supplier

More Views

wedge wire screen filter panel supplierwedge wire screen filter panel supplierwedge wire screen filter panel supplier

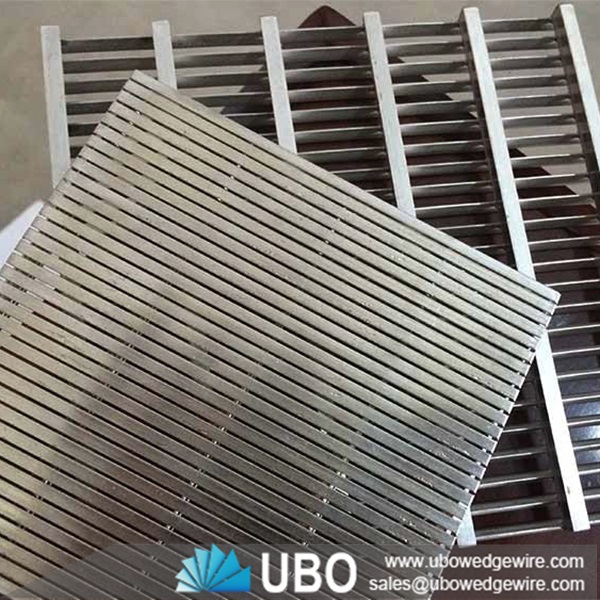

wedge wire screen filter panel supplier

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen filter panel supplier

Wedge wire screen is made from surface profiles and support profiles, profile wire is usually triangle wire, support wire can be triangle wire, round wire, flat wire, wedge wire.

Wedge Wire Screen Panels are made using only the highest quality standard stainless steel materials. The screen's surface structure is welded at 90 degrees angle with the support profiles which widen inwardly.

UBO can custom make any Wedge Wire Screen Panel to fit any customer's specified width and length requirements. The quality of workmanship that comes with constructing the panels, superior materials used and high precision slots ensure that our panels will meet even the most demanding applications in the industry.

wedge wire screen filter panel supplier

Features of wedge wire screen filter panel supplier

-- High mechanical strength

-- High wear resistance

-- High impact resistance

-- Larger open area

-- Self-supporting structure

-- Non-plugging slot design

-- Lower operation and maintenance cost

Applications of wedge wire screen filter panel supplier



  • Fish Diversion Screen Panels
  • Flooring for malt kiln, germination and grain drying
  • Food Processing
  • Hatchery Screens
  • Mineral Processing
  • Surface water intake screens
  • Vibrating or Static intake screens

Availability of support frames and troughs for drainage needs in different varieties. Customers can request for custom made grates to fit existing frames or troughs. Sample designs are also available to suit customer's requirements.

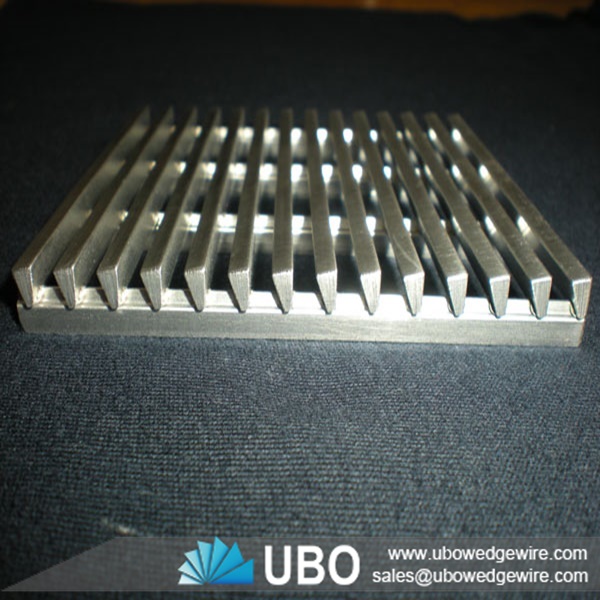

wedge wire screen filter panel supplier

Specifications of wedge wire screen filter panel supplier:

SLOT

(INCH)

LENGTH

 (m)

WIDTH

(m)

COLLAPSE STERENG

(PSI)

TENSILE WEIGHT

(TON)

WRAP (thick*deep)

(mm)

RODS

(mm)

0.040

1-6

0.5-2

395

6

2.2*3.0

3.8mm/22

0.040

1-6

0.5-2

395

6

2.3*3.0

3.8mm/22

0.040

1-6

0.5-2

252

8

2.3*3.5

3.8mm/32

0.010

1-6

0.5-2

399

10.5

3.0*5.0

3.8mm/48

0.020

1-6

0.5-2

370

10.5

3.0*5.0

3.8mm/48

0.040

1-6

0.5-2

323

10.5

3.0*5.0

3.8mm/48

0.010

1-6

0.5-2

206

11

3.0*5.0

3.8mm/50

0.020

1-6

0.5-2

191

11

3.0*5.0

3.8mm/50

0.040

1-6

0.5-2

167

11

3.0*5.0

3.8mm/50





Opening area calculation



                                          Slot Size * 100

 Open Area (%) =    ---------------------------------

                                     Slot size + Wire width

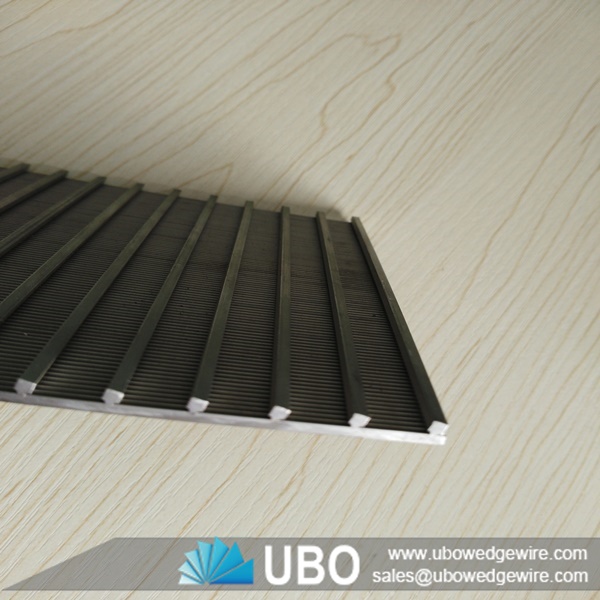

wedge wire screen filter panel supplier

Packaging and Transportation of wedge wire screen filter panel supplier:

transportation
