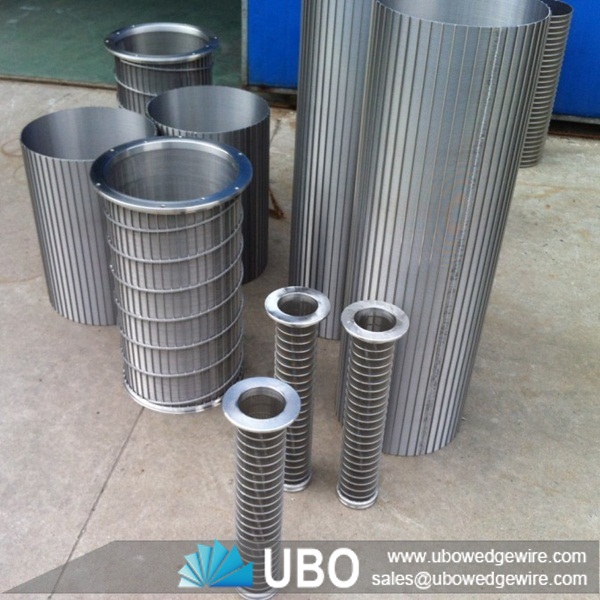

wedge wire screen cylinder basket for filtration

More Views

wedge wire screen cylinder basket for filtrationwedge wire screen cylinder basket for filtrationwedge wire screen cylinder basket for filtration

wedge wire screen cylinder basket for filtration

Category:Wedge Wire Application
Material:stainless steel302,321,304,316
Properties:wedge wire screen
Application:water,oil,liquid filtration,solid filtration, papermaking,industry etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen cylinder basket for filtration

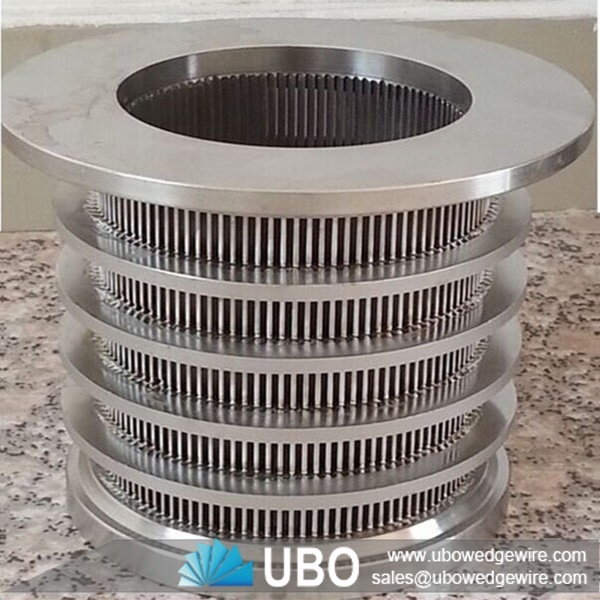

Wedge wire screen cylinder basket can be designed with slot openings and wires running on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder.

Cylinders diameters are from 1/2" pipe size to 35". It can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability. Various combinations of wire and rod can be used to produce the best screening cylinders and tubes.

Wedge wire screen cylinder basket typically use wedgewire for the screening media. The above externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.

Features of wedge wire screen cylinder basket for filtration

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

Avoids clogging and ensures uninterrupted flow.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Styles of connection: Flange

Usage of wedge wire screen cylinder basket for filtration

Be suitable for all kinds pressure screen in pulp making system and paper making system.

wedge wire screen cylinder basket for filtration

Specifications of wedge wire screen cylinder basket for filtration:

1.Materials: SS201, 304, 316, 316L
2.Structure: perforation/hole or slot/wedge wire
3.Be suitable for pressure screen
4. Hardness: chrome-plated 200-250 micron, electrical polished
• Standard perforation diameter: more than φ1.2mm
Plate thickness:6mm-12mm
• Screen slot: more than 0.1mm
Plate thickness: 6mm-12mm
• Advanced technology, high machining accuracy, long service life
Bar coating guarantee more than 0.20 mm

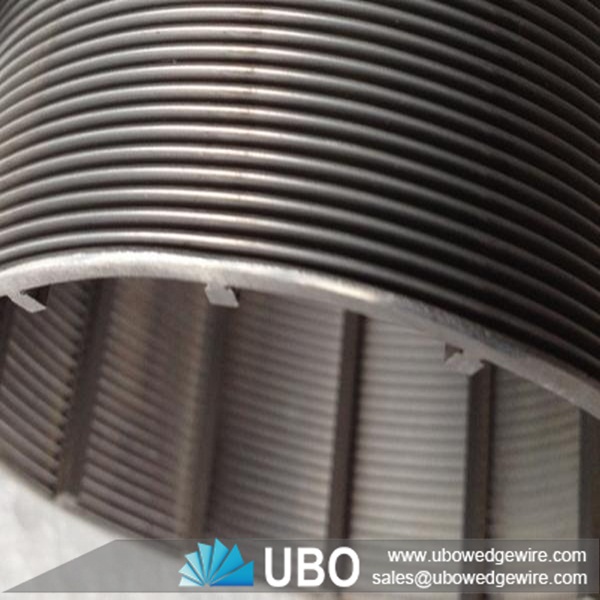

wedge wire screen cylinder basket for filtration

Packaging and Transportation of wedge wire screen cylinder basket for filtration:

packing & transportation
