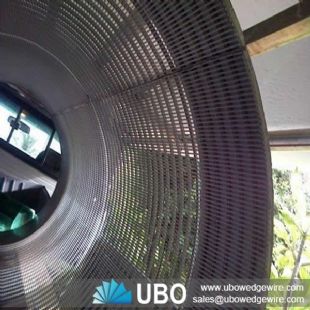

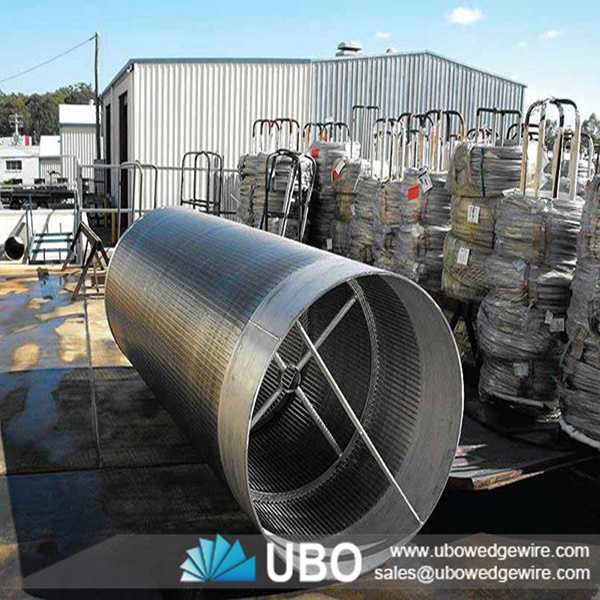

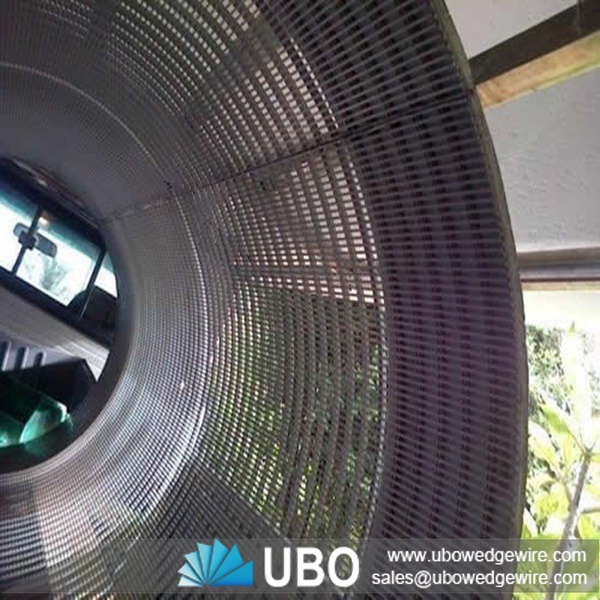

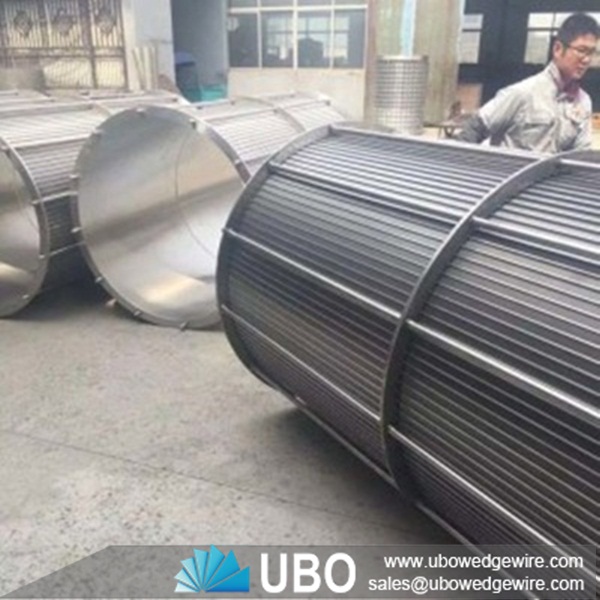

wedge wire rotary screen filter for filtration

More Views

wedge wire rotary screen filter for filtrationwedge wire rotary screen filter for filtrationwedge wire rotary screen filter for filtration

wedge wire rotary screen filter for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire rotary screen filter for filtration

The wedge wire rotary screen filter is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Features of wedge wire rotary screen filter for filtration

1. The wedge wire water screen adopts the T shaped slot which has self-clean function. It is easy to back wash, and won't be blocked.
2. Due to its excellent resistance to acid and alkali, it has a long service life.
3. The optimal hole design and all-welded structure ensure the high strength.
4. Designed with the minimum slot width of 0.1mm, the screen is suitable for many sand-prevention applications.
5. It not only has excellent sand prevention effect, but also offers a large flow area.

Application of wedge wire rotary screen filter for filtration

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

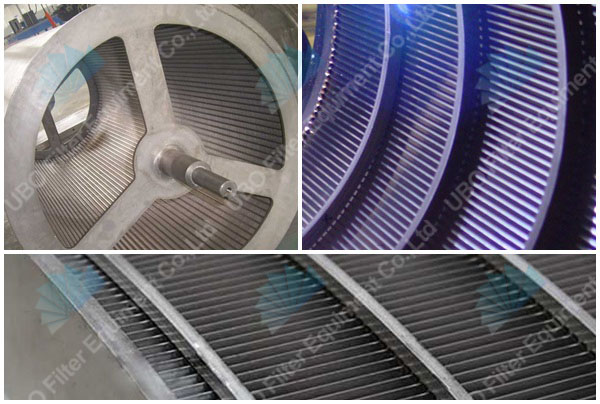

wedge wire rotary screen filter for filtration

Specifications of wedge wire rotary screen filter for filtration:

Model
Mixed Juice Capacity (t/hr)
Drum Diameter (mm)
Drum Length (mm)
Drive (KW)
Feed (inlet) Size
Discharge (outlet)Size
Approx. Mass (kg)
WT610
40
600
1000
1.5
DN100
DN150
535
WT615
73
600
1500
1.5
DN100
DN150
650
WT1015
99
1000
1500
2.5
DN150
DN200
1050
WT1018
132
1000
1800
2.5
DN150
DN200
1170
WT1518
165
1500
1800
4.0
DN200
DN250
1775
WT1521
214
1500
2100
4.0
DN250
DN300
1940
WT1824
264
1500
1400
5.5
DN250
DN300
2130



wedge wire rotary screen filter for filtration

Packaging and Transportation of wedge wire rotary screen filter for filtration:
