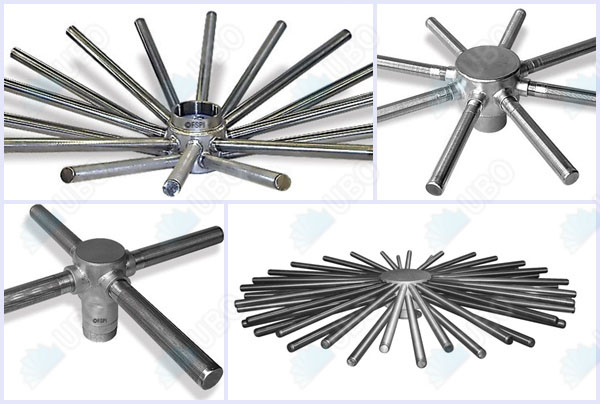

wedge wire outlet distributor for larger diameter filters
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Hub Laterals |
Application: | dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire outlet distributor for larger diameter filters
Fractal collectors and distributors are fractal in that the residence time for a path through the upper header lateral and collector header lateral is the same for each exit/entrance pair in the system. It allows for a better use of the media and an increase in overall process efficiency.
Providing for equal contact time with media and resonance time in the system, these fractal laterals have an exit flow variation as low as three percent for the entire assembly.
Applications for wedge wire outlet distributor for larger diameter filters:

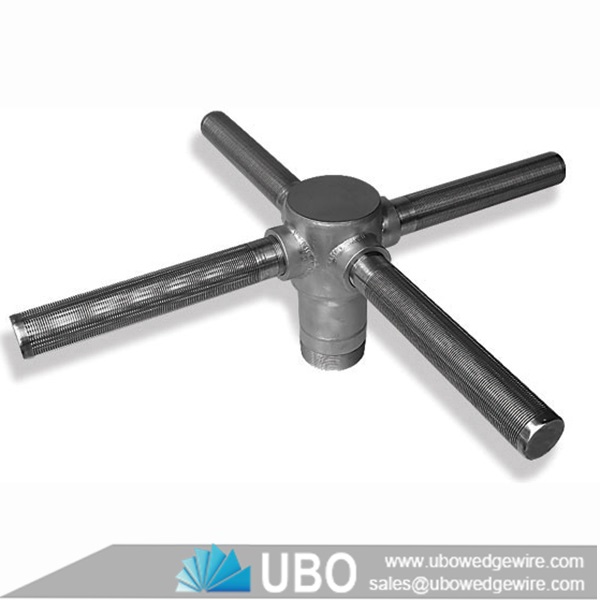

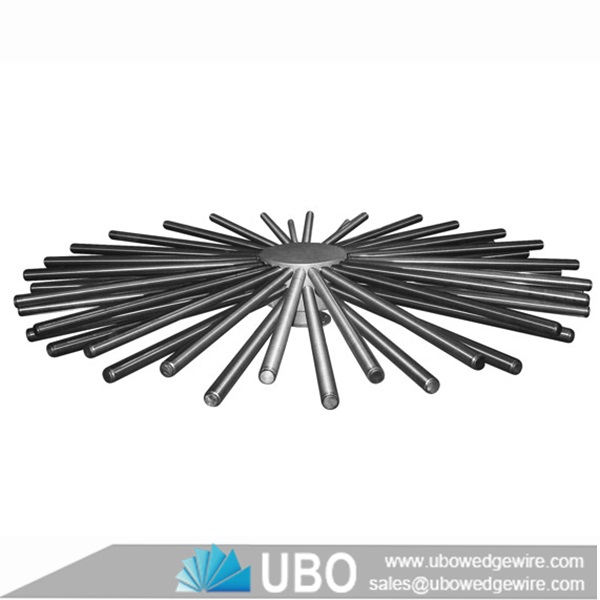

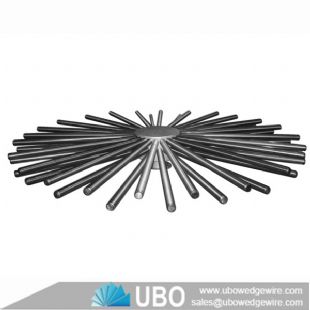

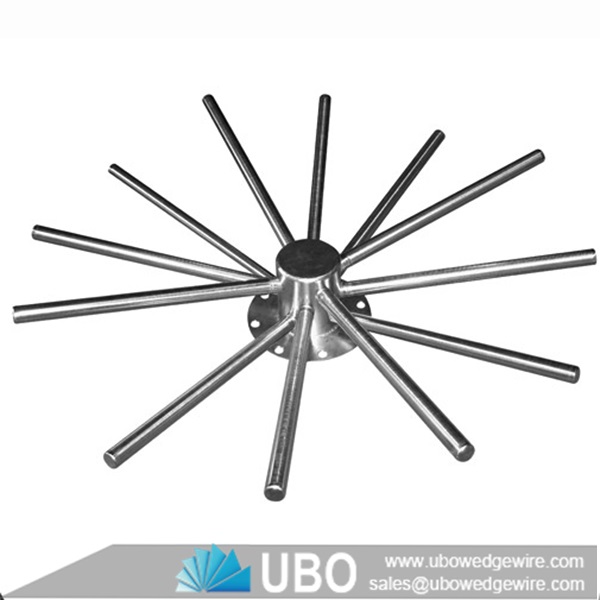

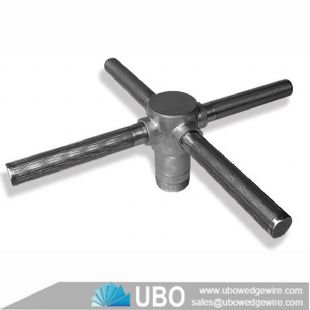

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.
Features for wedge wire outlet distributor for larger diameter filters:
bigger circulation area, water distribution uniformity. High mechanical strength. Thermal enduance. Resistance to pressure, Anti-aging, Resistance to corrosion. The size for slot can be decided by the size of resin.
Specifications of wedge wire outlet distributor for larger diameter filters:
nominal diameter |
Branch diameter |
Branch Qty |
The specification of the nominal flange |
1500 |
45-76 |
4-12 |
DN100 |
2000 |
45-76 |
4-12 |
DN125 |
2500 |
57-89 |
4-12 |
DN150 |
3000 |
57-108 |
4-12 |
DN200 |
3200 |
57-108 |
4-12 |
DN200 |
The above specifacation are our nomal products, usually, we design according to client's request.
