wedge wire oil filter for filtration

More Views

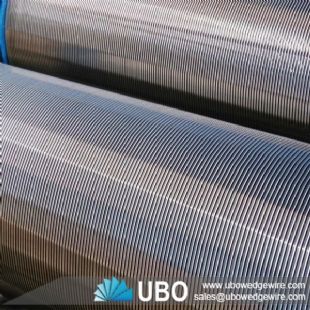

wedge wire oil filter for filtrationwedge wire oil filter for filtrationwedge wire oil filter for filtration

wedge wire oil filter for filtration

Category:Wedge Wire Application
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:liquid filter,water filtration, oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire oil filter for filtration

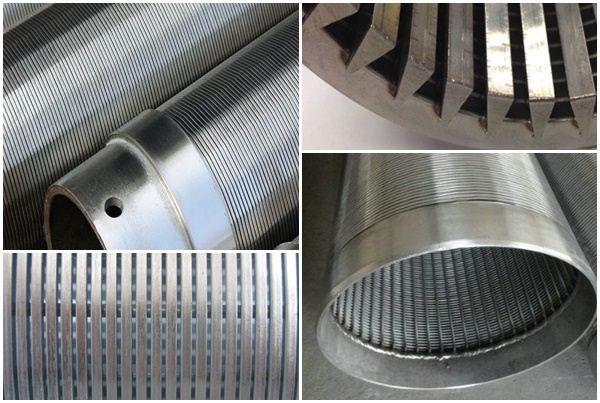

The wedge wire oil filter is appearanced of welded pipe. Seam is welded in straight line with unique spiral distribution formed by welding and greater filter strength. The center tube has high precision perforated tube with standard oil and glove tubes. The center tube reduces the opening area of the tube cross section and maintains the strength of the center tube to the maximum. The sand is blocked outside of the perforated screen while the oil, gas or water goes through the perforated opening then enters into the screen.

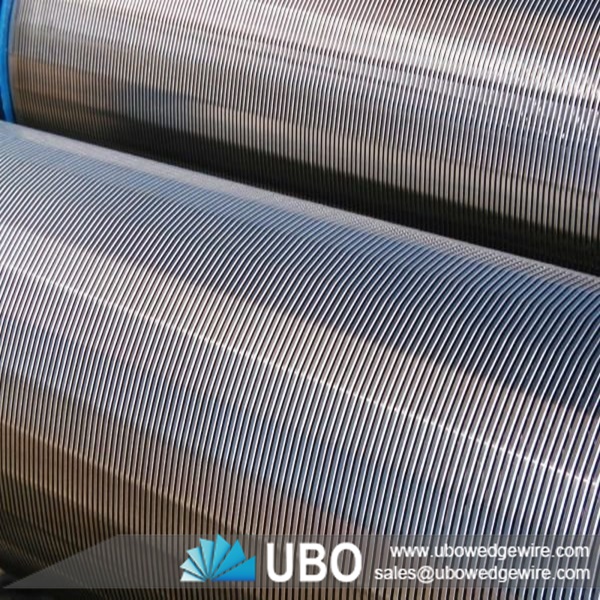

wedge wire oil filter

Features of wedge wire oil filter for filtration

1) Oil filter pipe and exterior protection cover are welded with the side ring to form a unit. The aperture of welding between the filter structure and the center tube are reduced to the minimum, hence greatly reduce the effect of the welding to the sand strength.

2) In the oil and gas wells production, using of it can effectively prevent the direct erosion and damage of the fluid to the grade sand control filter layer and it can extend the service life of screen.

3) Characterized with small external diameter and light weight, the oil filter pipe is easy to move in the long-distance horizontal level.

Applications of wedge wire oil filter for filtration

Wedge wire oil filter pipe can be used for vertical wells, the inclined shaft, horizontal wells and various gas, oil and water wells. Can also be used individually as sand control tube.

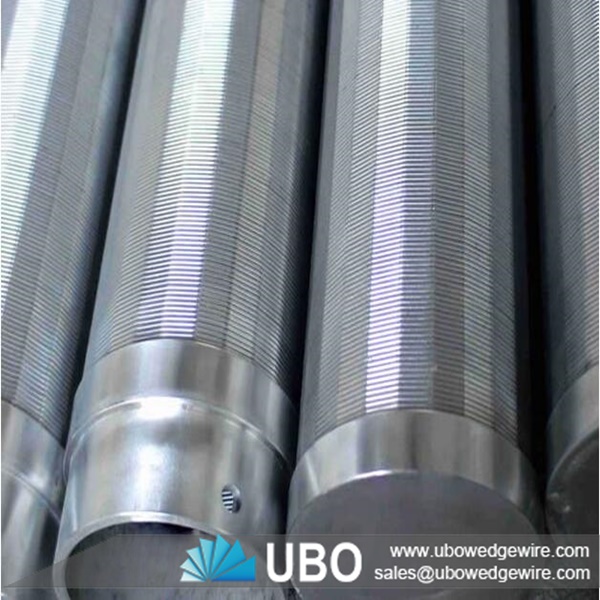

        wedge wire oil filter

Specifications of wedge wire oil filter for filtration:




Nominal Size
(mm)

159

219

273

325

377

426

529

Thickness(p)

5

6

5

6

5

6

8

5

6

8

5

6

8

5

6

8

6

7

8

Tension strength
(KN)

230

270

320

390

400

490

653

480

570

760

560

670

893

630

760

1084

782

944

1296

Critical crushing resistance
stress(N/mm2)

520

690

340

450

170

230

306

136

203

270

128

183

244

92

135

203

90

136

186



wedge wire oil filter

Packaging and Transportation of wedge wire oil filter for filtration:

 Packing: wooden case or as your request
