wedge wire drum Pressure screen basket

More Views

wedge wire drum Pressure screen basketwedge wire drum Pressure screen basketwedge wire drum Pressure screen basket

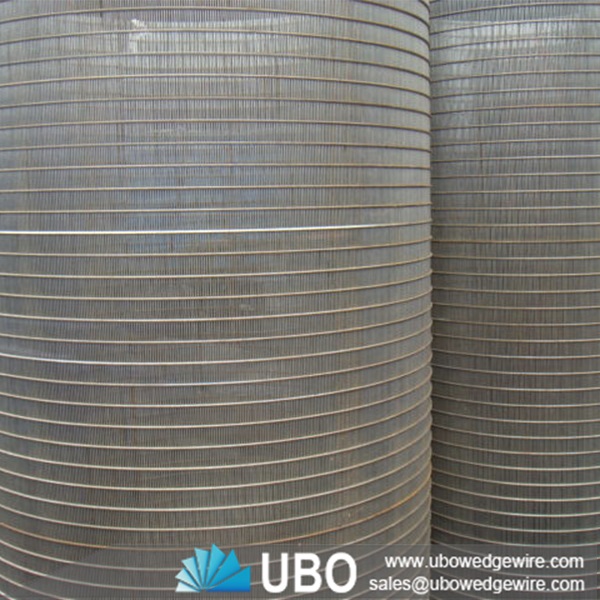

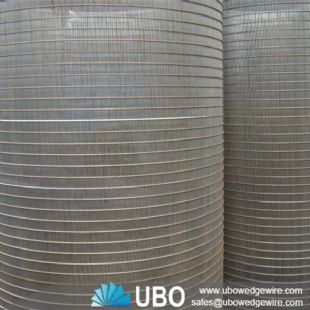

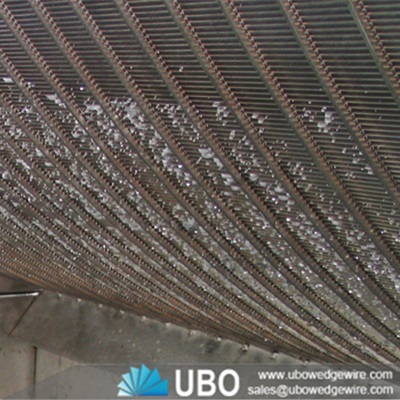

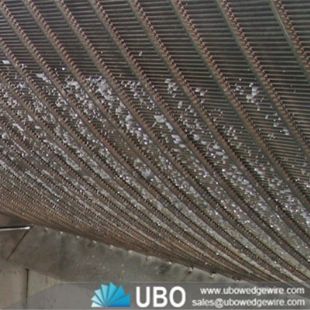

wedge wire drum Pressure screen basket

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire drum Pressure screen basket

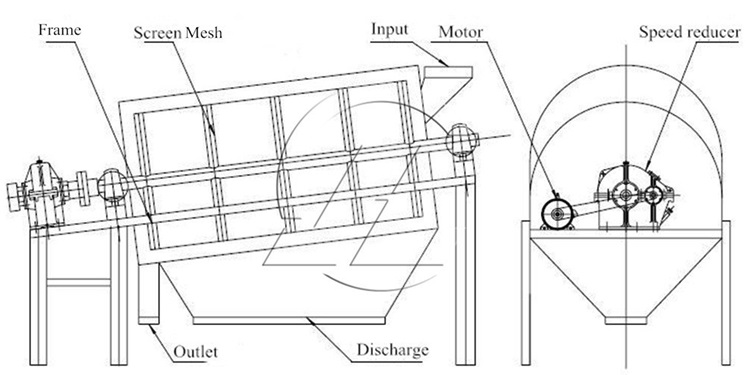

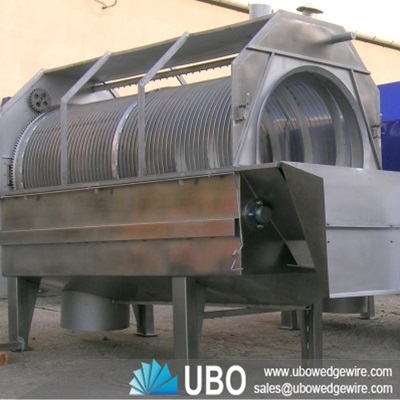

Drum Screens are designed to self clean, with wedge wire tubes supporting and reinforcing the structure. Our Rotary Drum Screens and Trommel Screens are produced to work uninterruptedly. This maintains higher efficiency and productivity whilst at the same time minimising energy consumption. Making the benefits of installing Rotary Drums Screens for your waste water screening needs from Gap Technology a definite must.

Applications for wedge wire drum pressure screen basket:

Rotary Drum Screens are used to mechanically separate liquids from solid particles. Gap Technology offer a wide range of Rotary Drum screens and Rotary Wedge Wire Screens / Trommel Screens for industrial waste water screening applications to our large and varied customer base throughout the United Kingdom and across Europe.

Characteristics for wedge wire drum pressure screen basket:

-- More efficient screening increased up to 70%.

-- Excellent coating technology and longer durability of slot.

-- Stronger structure by solid joints of sleeve and bolt.

-- Recyclable screen baskets and much cost effective.

Advantages for wedge wire drum Pressure screen basket:

Our EM hybrid processing techniques give our screens several competitive advantages, including:

-- High weld strength

-- Higher accuracy and consistency of wire gap

-- Lower surface roughness

-- Single piece cylinder construction (As opposed to welded patched cylinders)

-- Axially-seamless cylinder construction

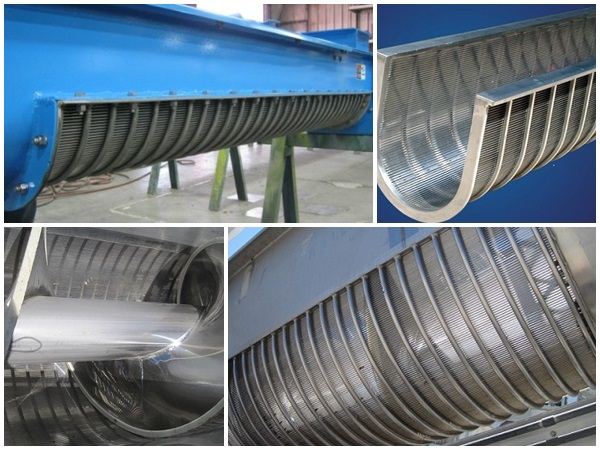

wedge wire drum Pressure screen basket

Specifications of wedge wire drum Pressure screen basket:

wedge wire drum Pressure screen basket



Model
Mixed Juice Capacity (t/hr)
Drum Diameter (mm)
Drum Length (mm)
Drive (KW)
Feed (inlet) Size
Discharge (outlet)Size
Approx. Mass (kg)
WT610
40
600
1000
1.5
DN100
DN150
535
WT615
73
600
1500
1.5
DN100
DN150
650
WT1015
99
1000
1500
2.5
DN150
DN200
1050
WT1018
132
1000
1800
2.5
DN150
DN200
1170
WT1518
165
1500
1800
4.0
DN200
DN250
1775
WT1521
214
1500
2100
4.0
DN250
DN300
1940
WT1824
264
1500
1400
5.5
DN250
DN300
2130

Packaging and Transportation of wedge wire drum Pressure screen basket:

wedge wire drum Pressure screen basket
