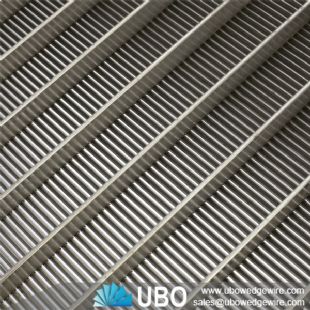

Stainless Steel V-shaped Wedge Wire Screen Panel Filtration

More Views

Stainless Steel V-shaped Wedge Wire Screen Panel FiltrationStainless Steel V-shaped Wedge Wire Screen Panel FiltrationStainless Steel V-shaped Wedge Wire Screen Panel Filtration

Stainless Steel V-shaped Wedge Wire Screen Panel Filtration

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Screen Panel
Application:waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V-shaped Wedge Wire Screen Panel Filtration

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Our stainless steel wedge Wedge Wire screen panel are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel flat panel screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs

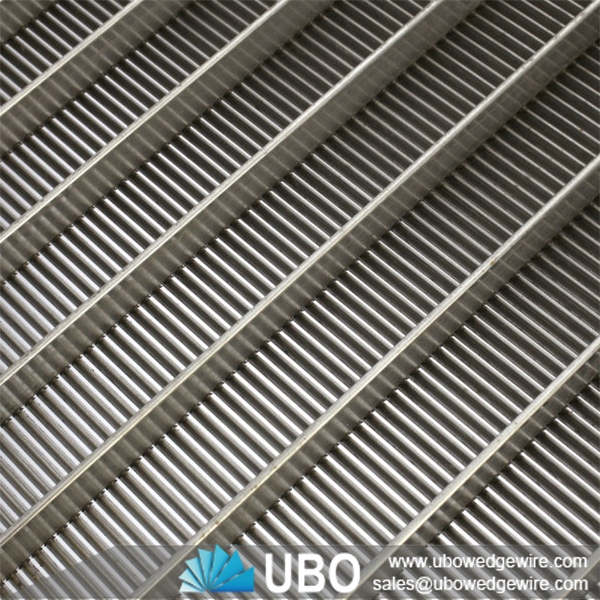

Stainless Steel V-shaped Wedge Wire Screen Panel Filtration

Advantage for Stainless Steel V-shaped Wedge Wire Screen Panel Filtration:

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

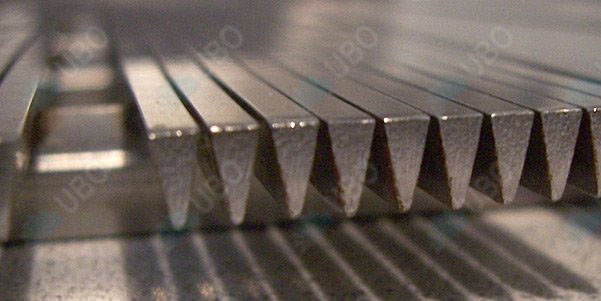

A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

A uniform and efficient well development due to the continuous slot opening.

Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Usages for Stainless Steel V-shaped Wedge Wire Screen Panel Filtration:

Flat wedge wire screen panel can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

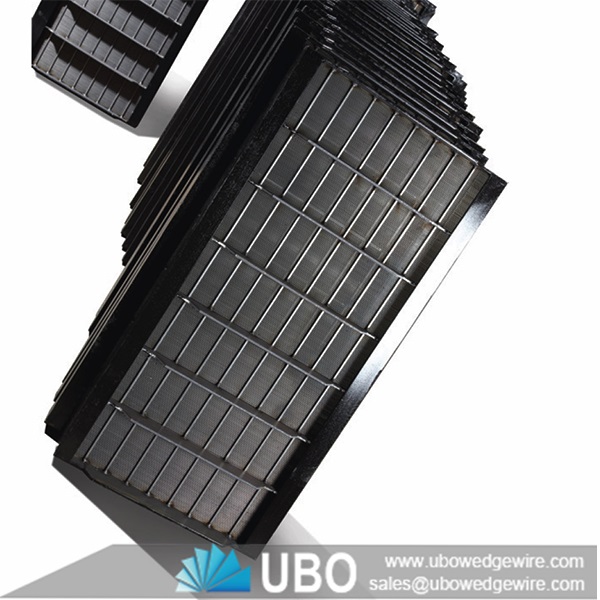

Stainless Steel V-shaped Wedge Wire Screen Panel Filtration

Specifications of Stainless Steel V-shaped Wedge Wire Screen Panel Filtration:

Stainless Steel V-shaped Wedge Wire Screen Panel Filtration


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

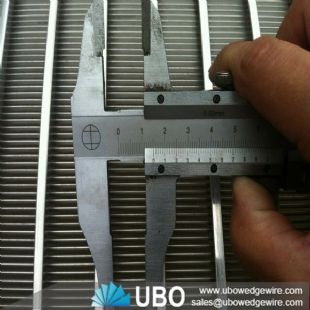

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings


Packaging and Transportation of Stainless Steel V-shaped Wedge Wire Screen Panel Filtration:

Package: in wood case

Delivery Time: 5-25 days
