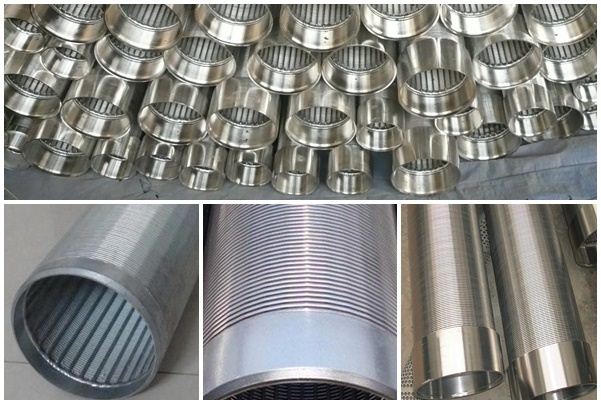

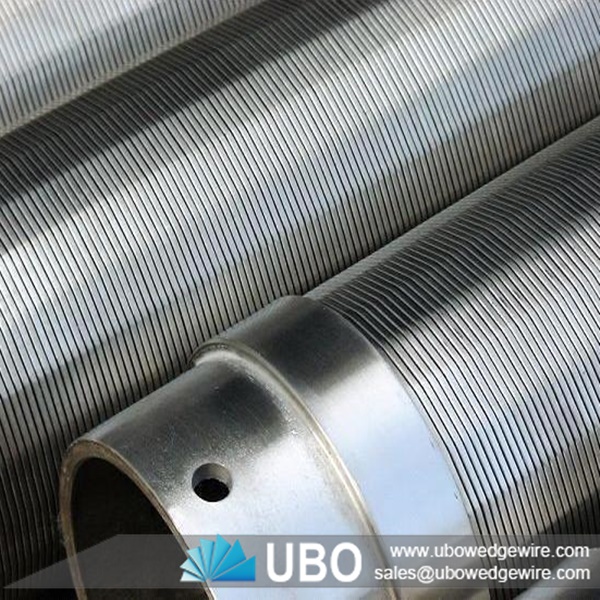

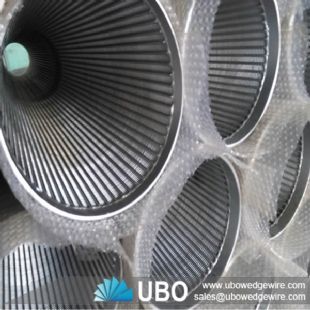

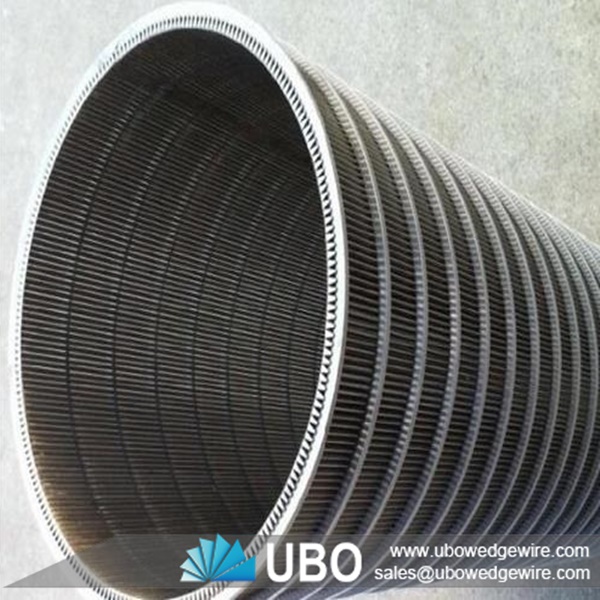

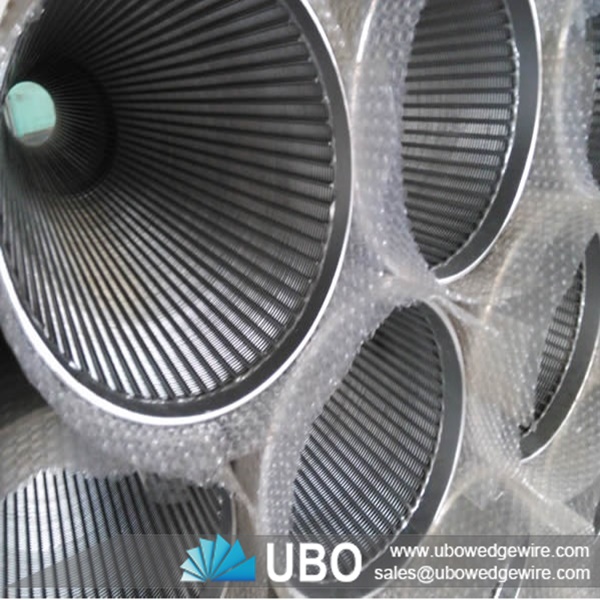

wedge wire cylinder screen for filtration

UBO wedge wire cylinder screen has a delicate structure and high open area, as well as accurate slot dimension. At the same time, it has characteristics of heat-resisting, anti-corrosive, good machine capability, long service life, safety and reliability and so on. It can be used in many kinds of medium filtering. Such as oil, chemical acid, the alkali liquid filters, the ethyl alcohol, etc.

Advantages of wedge wire cylinder screen for filtration

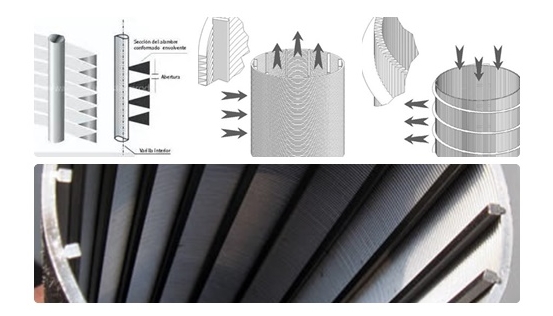

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Applications of wedge wire cylinder screen for filtration

1) Architecture & Construction

2) Food & Beverage Screens

3) Mineral & Aggregate Processing

4) OEM Screen Component

5) Pulp & Paper Screens

6) Refining & Petrochemical

7) Waste Water Treatment

8) Water Well & Oil well

9) Coal

10) Mine

Diameter: 20-1200mm

Slot: 0.015-15mm

Length: 50-6000mm

Type: Reflexed Oil Screen tubes

Material: Stainless steel LCG

Profile wire: V shape Wedge shap

Wire width: 1.5-3.7mm Customized accepted

Wire height: 2.2-6.3mm Customized accepted

Suppot rod: Wedge Round

Application: almost every industry
