wedge wire central header lateral for water treatment

More Views

wedge wire central header lateral for water treatmentwedge wire central header lateral for water treatmentwedge wire central header lateral for water treatment

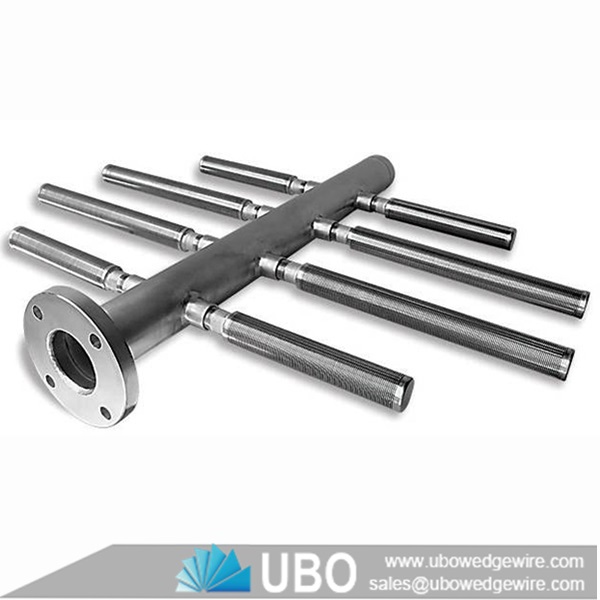

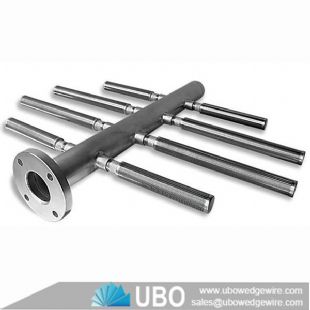

wedge wire central header lateral for water treatment

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:Header Laterals
Application:dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire central header lateral for water treatment

     Header lateral screen distributor can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header lateral design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.
   Available as both Header Lateral and Hub lateral assemblies, wedge wire screen laterals and pipe based laterals can be connected to headers or hubs by the following methods : -standard NPT threaded connections -flanged connections. fabricated or ANSI -welded as one assembly Laterals are available in all standard pipe and tube outside diameters. Available in a variety of standard designs or can be customer designed to meet your requirements

Application for wedge wire central header lateral for water treatment:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features forwedge wire central header lateral for water treatment:

UBO technology can also make several kinds of lateral collector / center distribution deainage device: Crossing type,fish bone lateral type and straight type.the characterics of our center distibution drainage device:bigger circulation area,Water distribution uniformity.High mechanical strength.Thermal enduance.Resistance to pressure,Anti-aging,Resistance to corrosion.The size for slot can be decided by the size of resin.

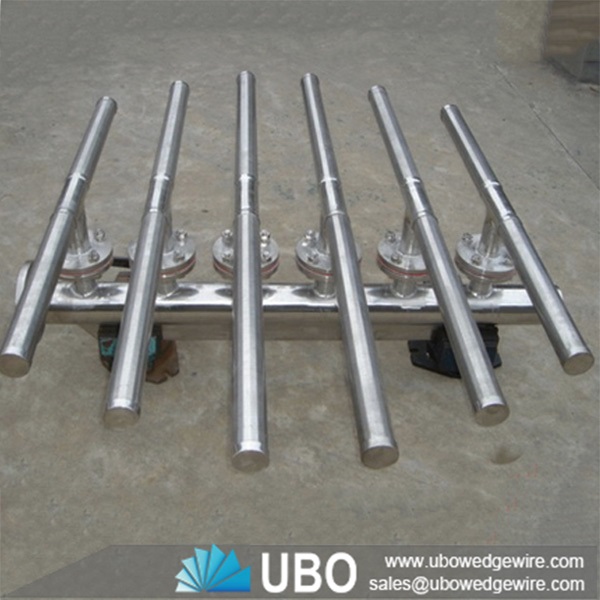

wedge wire central header lateral for water treatment

Specifications of wedge wire central header lateral for water treatment:

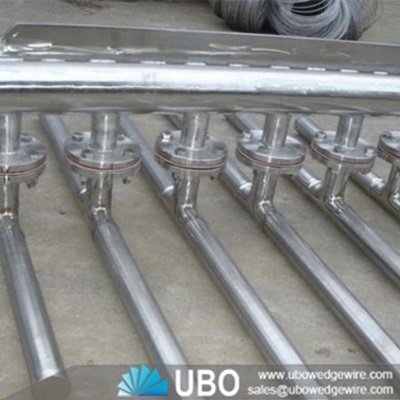

wedge wire central header lateral for water treatment

Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2

0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150, 200

442,496,547, 600,654,705,

758,812,863, 916,970,1021,

1074,1128,1179, 1232, 1286

Packaging and Transportation of wedge wire central header lateral for water treatment:

  wedge wire central header lateral for water treatment
