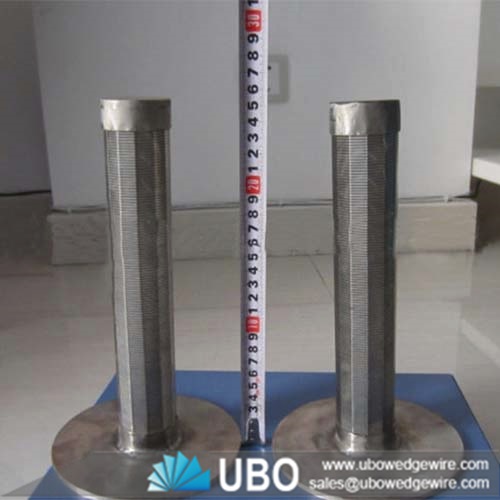

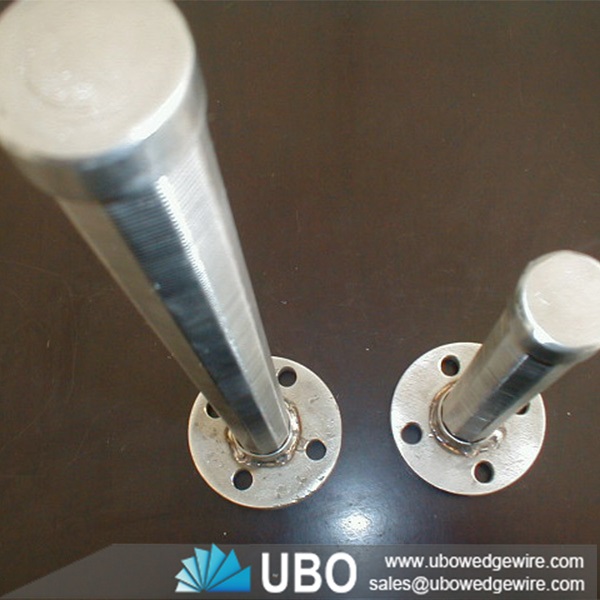

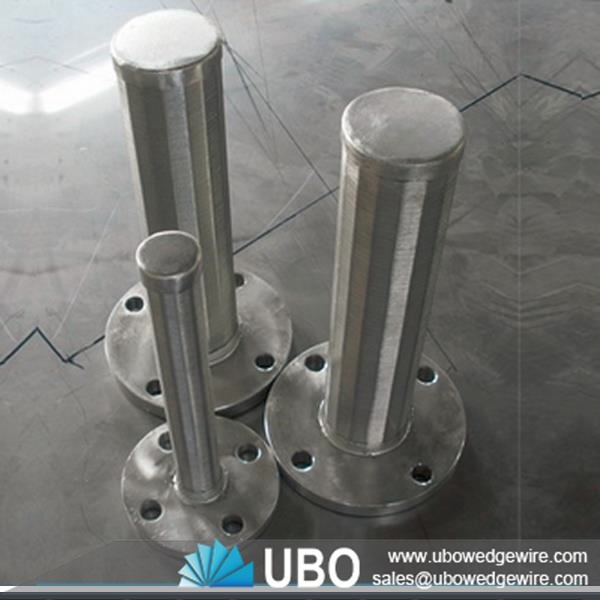

wedge wire candle filter trap manufactorywedge wire candle filter trap manufactorywedge wire candle filter trap manufactory

wedge wire candle filter trap manufactory

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water,oil, liquid filtration, industry filtration,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire candle filter trap manufactory

wedge wire candle filter trap predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.
In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

Feature of wedge wire candle filter trap manufactory

1.Eliminates mass resin/media loss into piping distribution system
2.Prevents loss of resin during backwashing
3.Protects downstream equipment and pumps
4.Visual detection of minor resin/media losses in advance of major equipment failure

Application of wedge wire candle filter trap manufactory

wedge wire candle filter trap used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

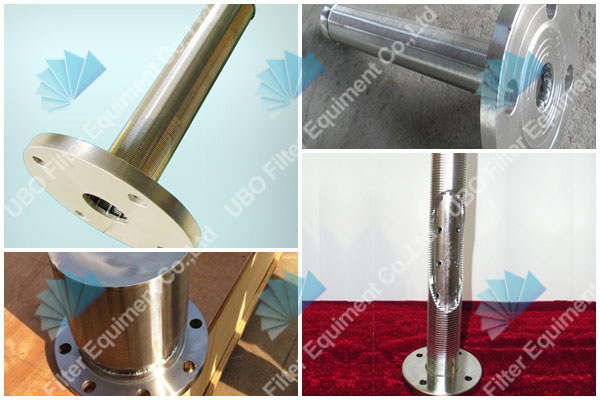

wedge wire candle filter trap manufactory

Specifications of wedge wire candle filter trap manufactory:

Type Slots mm ΦA ΦB L1mm L2mm
AM 0.05, 0.1,   0.2,   0.3,   0.5,    1.0 G2" Φ50 30,55 73, 126, 180, 231, 284, 338, 389
G1 1/2" Φ38 30,55
G2" 1 1/4"NPT 30
G2" 1 1/2"NPT 30
Φ68 G2" 30
1 1/2"NPT 1 1/4"NPT 30
2 1/2" Φ60 20

wedge wire candle filter trap manufactory

Packaging and Transportation of wedge wire candle filter trap manufactory:

transportation
