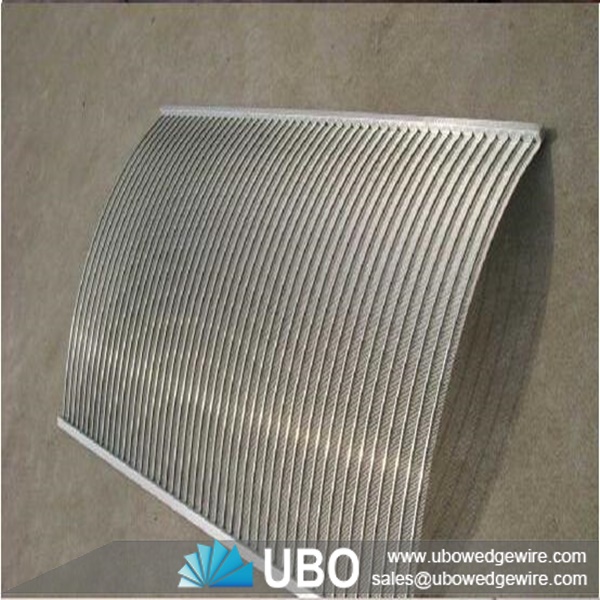

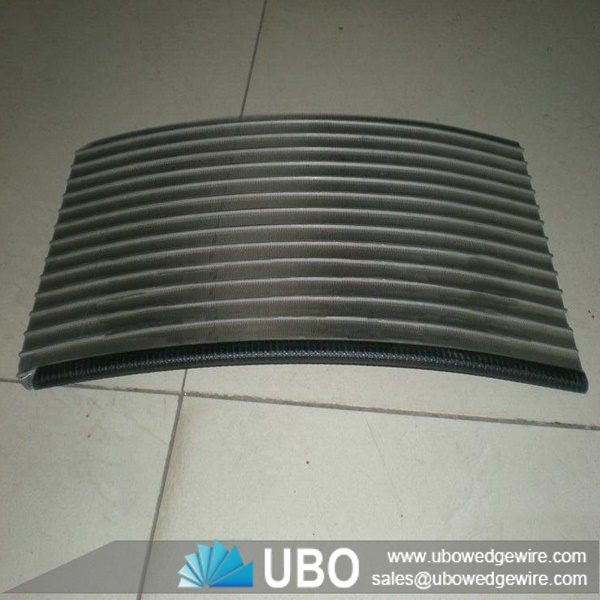

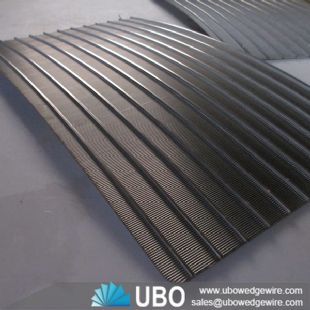

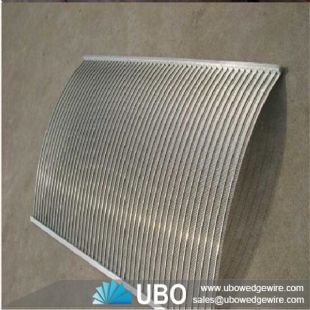

wedge wire arched screen for filtration

More Views

wedge wire arched screen for filtrationwedge wire arched screen for filtrationwedge wire arched screen for filtration

wedge wire arched screen for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, liquid filtration, industry filtration.etc

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire arched screen for filtration

Wedge wire arched screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A wedge wire arched screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Features of Wedge Wire Arched Screen for Filtration

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Application of Wedge Wire Arched Screen for Filtration

Mainly used for coal preparation and ore dressing plant for material dehydration, desliming, medium draining and classification & recycling of coal slime. It can also be used in paper industry: whitewater fiber recycling, pulp condensation, spray water and seal water purification, the length of fiber grading, fiber / filler separation, white water filtration and sewage treatment.

wedge wire arched screen for filtration

Specifications of wedge wire arched screen for filtration:

Wedge Wire Arched Screen

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot Size:

Slot size

Radian:

15º,30º,45º as your request

wedge wire arched screen for filtration

Packaging and Transportation of wedge wire arched screen for filtration:

packing
