Quality Wedge Wire Screen Manufacturer in China

wedge  wire round screen tube for oil

More Views

wedge  wire round screen tube for oilwedge  wire round screen tube for oilwedge  wire round screen tube for oil

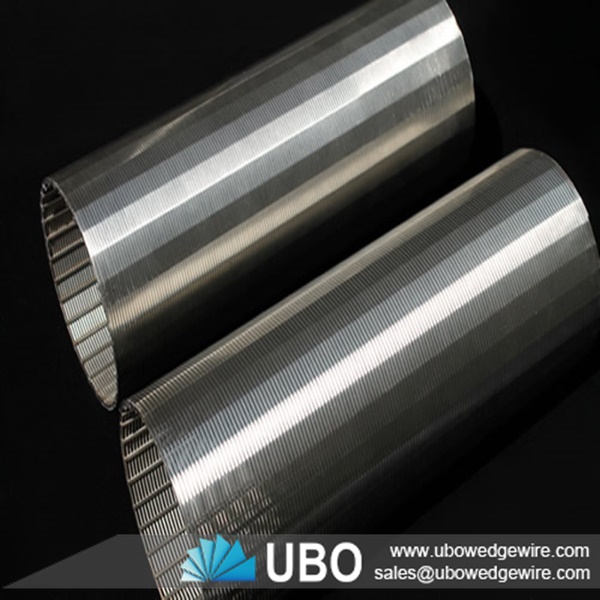

wedge wire round screen tube for oil

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire round screen tube for oil

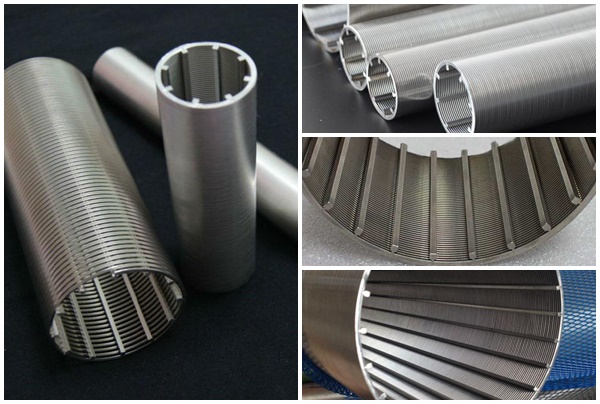

The wedge  wire round screen tube is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

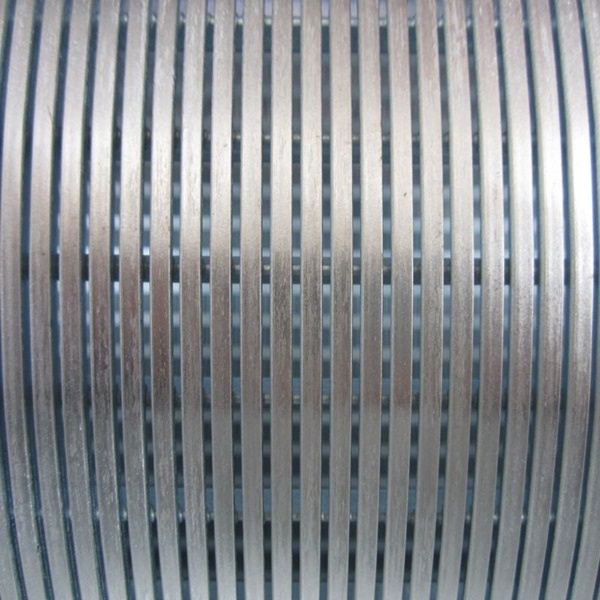

wedge  wire round screen tube for oil

Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.

Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

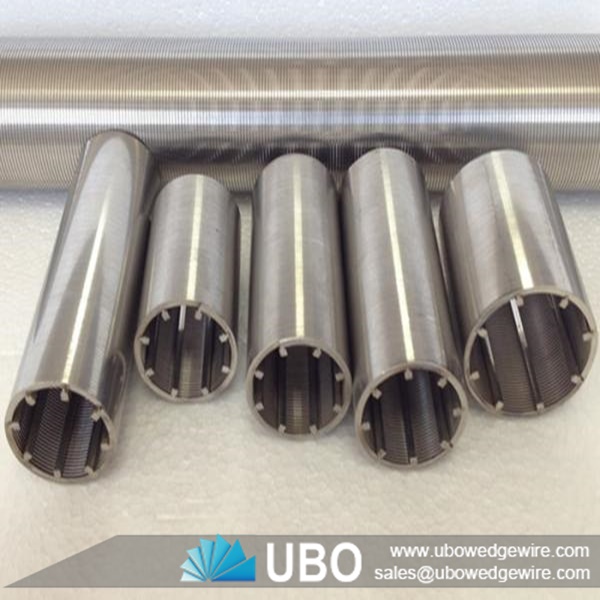

wedge  wire round screen tube for oil

Features of wedge wire round screen tube for oil

The screen pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Applications of wedge wire round screen tube for oil

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

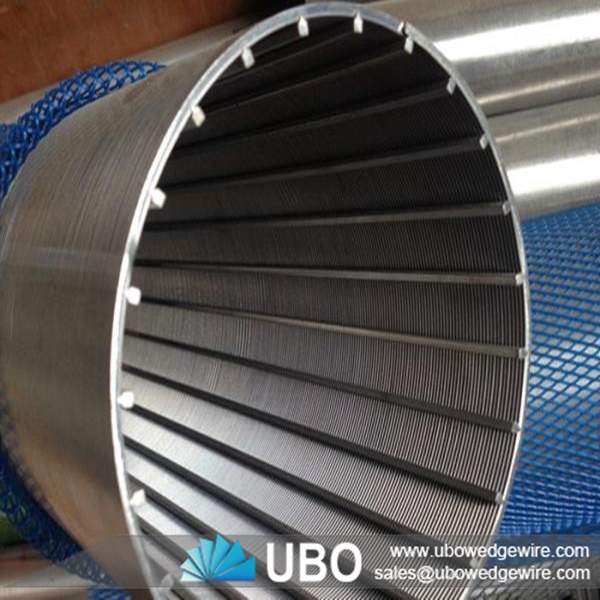

wedge  wire round screen tube for oil

Specifications of wedge wire round screen tube for oil:


Screen Size


Inside Diameter


Outside Diameter


OD of Female Threaded End


in


mm


In


mm


in


mm


In


mm


2


51


2


51


25/8


67


23/4


70


3


76


3


76


35/8


92


33/4


95


4


102


4


102


45/8


117


43/4


121


5


127


5


127


55/8


143


53/4


146


6


152


6


152


65/8


168


7


178


8


203


8


203


85/8


219


91/4


235


10


254


10


254


103/4


273


113/8


289


12


305


12


305


123/4


324


133/8


340


14


356


131/8


333


14


356


_


_


16


406


15


381


16


406


_


_


20


508


18 3/4


476


20


508


_


_



PROFILE WIRE









WIDTH(mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
HEIGHT(mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30



SUPPORT ROD







ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Packaging and Transportation of wedge wire round screen tube for oil:
