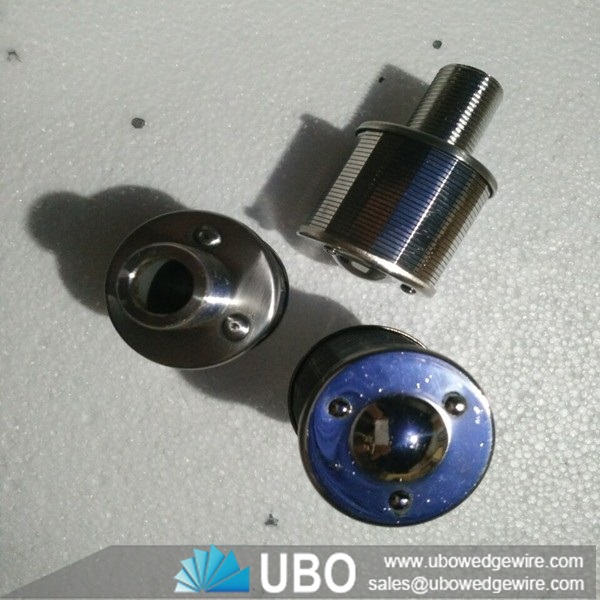

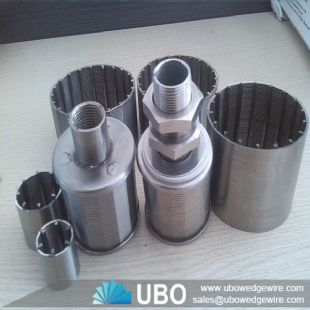

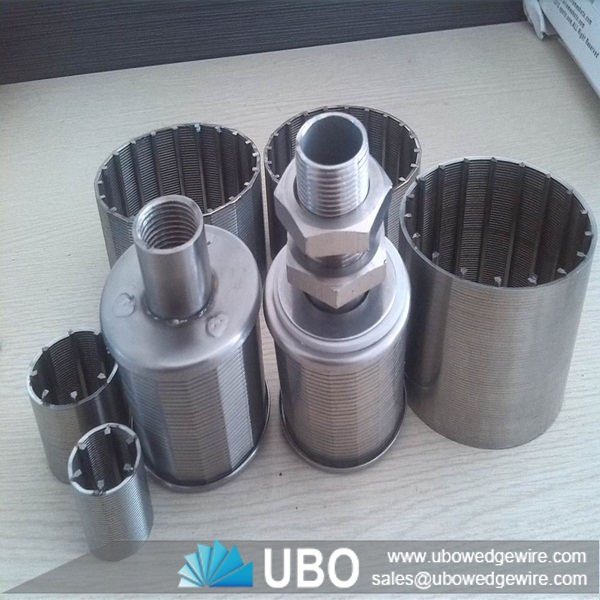

stainless steel wedge wire screen nozzle filter
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of stainless steel wedge wire screen nozzle filter
stainless steel wedge wire screen nozzle filter around the plate water cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
Construction of stainless steel wedge wire screen nozzle filter

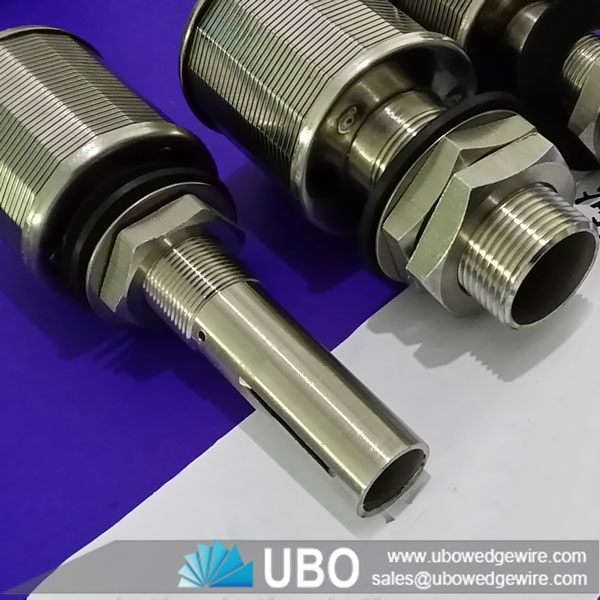

The wedge wire element in a nozzleis a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.
Advantages of stainless steel wedge wire screen nozzle filter
-- Excellent roundness
-- Very good slot width precision
-- High mechanical load capacity
-- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
-- Automated welding process for high-precision manufacturing
-- Perfectly adjusted screen basket profiles
-- Available for all screens
-- Surface finishing as required
Applications of stainless steel wedge wire screen nozzle filter
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Specifications of stainless steel wedge wire screen nozzle filter:
Matrial: stainless steel
Type: filter nozzle
Application: water filtration, liquid filtration
|
(mm)TYPE |
OD |
ID |
Support wire Number |
Filter direction |
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
