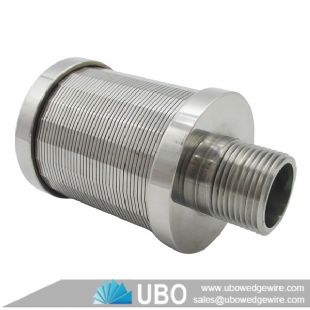

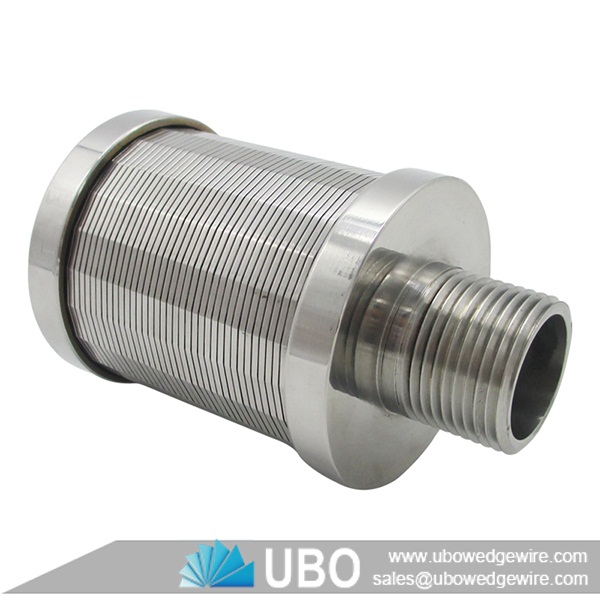

stainless steel Wedge v wire screen nozzle filter manufacturer

More Views

stainless steel Wedge v wire screen nozzle filter manufacturerstainless steel Wedge v wire screen nozzle filter manufacturerstainless steel Wedge v wire screen nozzle filter manufacturer

stainless steel Wedge v wire screen nozzle filter manufacturer

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Wedge v wire screen nozzle filter manufacturer

The stainless steel Wedge v wire screen nozzle filters are made from V shaped profile wire, filter nozzle is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

Wedge Wire Wedge v wire screen nozzle filter manufacturer

Wedge Wire Wedge v wire screen nozzle filter manufacturer

Advantages of stainless steel Wedge v wire screen nozzle filter

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of stainless steel Wedge v wire screen nozzle filter

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries.

Wedge Wire Wedge v wire screen nozzle filter manufacturer

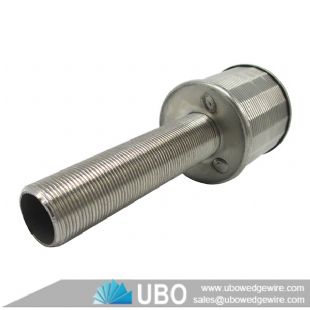

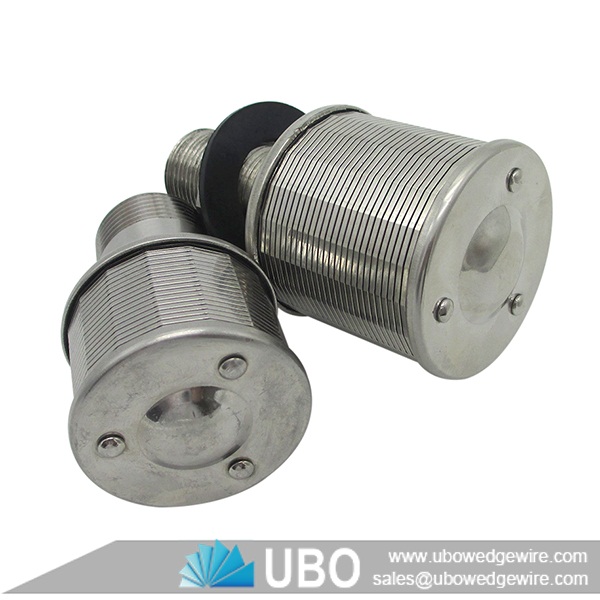

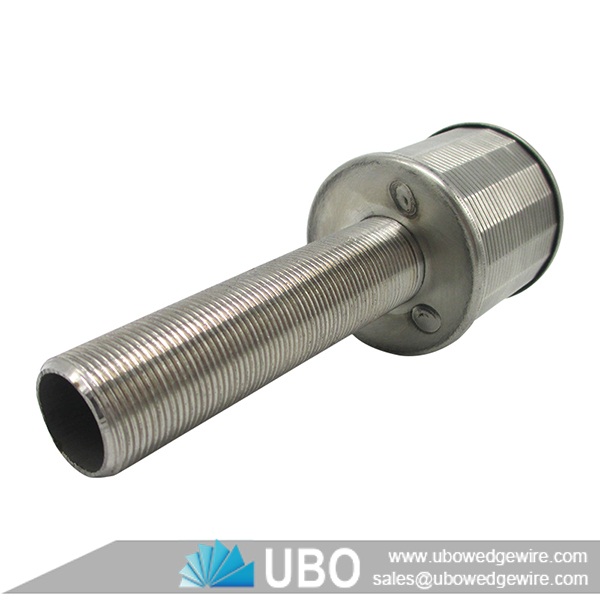

Other typr filter nozzle

Wedge Wire Wedge v wire screen nozzle filter manufacturer

Specifications of stainless steel Wedge v wire screen nozzle filter manufacturer:

Wedge Wire Wedge v wire screen nozzle filter manufacturer

No. Type Ton Slot
Opening
Size 0.2-0.25mm slot opening Area of through-flow mm2(reference)
D L1 L M
1 UBO45-1-C 0.5 0.2-0.5 45 45 95 24 500
2 UBO53-2-B 1 0.2-0.5 53 45 100 24 570
3 UBO53-2-C 1.5 0.2-0.5 53 50 110 32 700
4 UBO57-3-B 2 0.2-0.5 57 45 110 32 600
5 UBO70-4-B 3 0.2-0.5 70 55 120 32 1000

Packaging and Transportation of stainless steel Wedge v wire screen nozzle filter manufacturer:

Wedge Wire Wedge v wire screen nozzle filter manufacturer
