Quality Wedge Wire Screen Manufacturer in China

paper making wedge wire pressure screen basket

More Views

paper making wedge wire pressure screen basketpaper making wedge wire pressure screen basketpaper making wedge wire pressure screen basket

paper making wedge wire pressure screen basket

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wirescreen
Application:deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of paper making wedge wire pressure screen basket

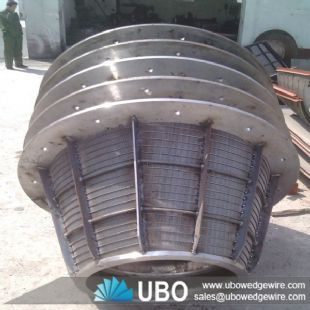

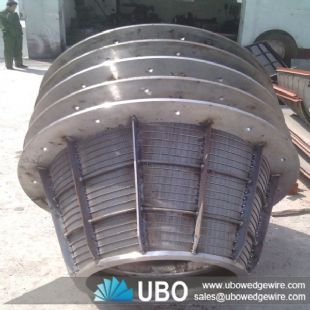

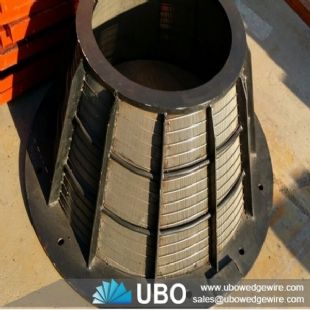

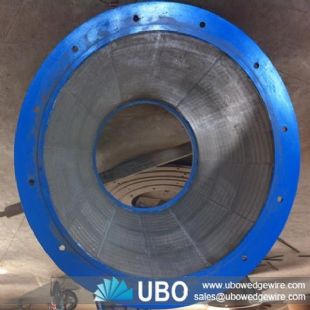

Centrifugal screen basket mainly from the upper flange, lower flange stiffener stiffening ring, stainless steel conical net with a tube composed of stainless steel conical net with a tube welded (welding by several pieces of fan-shaped screen in the exclusive tire with on the tire tool independent design of assigned processing), the fan-shaped mesh sieve by rolling stainless steel wire into a special shape and support bars welded by special equipment forming, screen along the sieve basket cone bus arrangement. In order to alleviate the screen seam blockage, sieve slit made on the small great. The sieve slit size is generally 0.2 ~ 0.5mm, according to user requirements. Screen basket fused through the holes on the flange or the lower flange bolts with the host.

Applications and performance for paper making wedge wire pressure screen basket:

The key components of the centrifugal screen basket centrifuge dewatering equipment, sieve basket used in centrifugal drier dehydration is widely used in coal, chemical, metallurgical and other industries. The basket is one of the key components of centrifugal dehydrator screen, high-speed rotating parts, sieve basket work, not only to withstand the vibration loads, but also to withstand the severe impact of the coal, water, so the strength and accuracy requirements are high.

Features for paper making wedge wire pressure screen basket:

-- Mechanically held wires, built in the round.

-- Rugged, high mechanical strength.

-- Electric-chemical polish: no fiber string.

-- Precise slot-width tolerance.

-- High wear resistance.

-- High impact resistance.

-- Larger open area.

-- Self-supporting structure.

-- Non-plugging slot design.

-- Lower operation and maintenance cost.

-- Available for outward and inward flow screens.

paper making wedge wire pressure screen basket

Specifications of paper making wedge wire pressure screen basket:

paper making wedge wire pressure screen basket


Model
diameter (mm)
angle (°)
slot (mm)
WZ-1200
1300
20
0.3,0.4,0.5
H-900
900
15
0.3,0.4,0.5
H-1000
1000
15
0.3,0.4,0.5
HSG-1100
1100
13
0.35,0.4
HSG-1200
1200
13
0.3,0.4,0.5
HSG-1300 HES1300
1300
13
0.3,0.4,0.5

HSG-1400  HSG-1500

1500
13
0.45,0.5

Packaging and Transportation of paper making wedge wire pressure screen basket:

paper making wedge wire pressure screen basket
