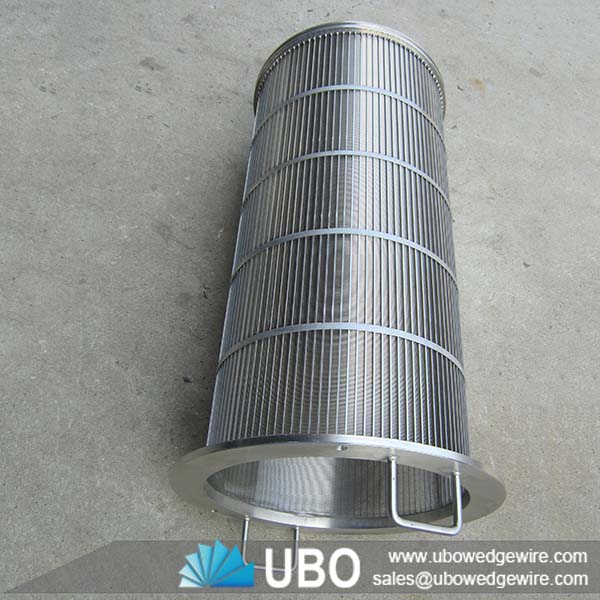

Wedge wrapped wire screen cylinder basket

More Views

Wedge wrapped wire screen cylinder basketWedge wrapped wire screen cylinder basketWedge wrapped wire screen cylinder basket

Wedge wrapped wire screen cylinder basket

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wie screen basket
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge wrapped wire screen cylinder basket

This type of Wedge wrapped wire screen cylinder basket made up of rods and warp, the rod can be round wire,triangular wire and trapezoid wire.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.The warp is triangular wire(v-shape wire). Wedge wire screen basket have a structure and high open area;as well as accurate slot dimension. Wedge wire screen pressure basket have heat -resistant,anti-corrosive,good machine capability,last long ,safety and reliability and so on.

Wedge wrapped wire screen cylinder basket

Wedge wrapped wire screen cylinder basket

Features of Wedge wrapped wire screen cylinder basket

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

Application of Wedge wrapped wire screen cylinder basket

Be suitable for all kinds pressure screen in pulp making system and paper making system.
Our Industrial Wedge Wire Screens Cylindrical has been exported to India, Bangladesh, Iran and other countries. All the customers satisfy with our products with a high quality and competitive price. We also can produce the products according to your detailed requirements with drawings.

Wedge wrapped wire screen cylinder basket

Wedge wrapped wire screen cylinder basket

Specifications of Wedge wrapped wire screen cylinder basket:

Wedge wrapped wire screen cylinder basket

Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range 19mm-2000mm
ID Range 13mm-1981mm
Length Range Up to 6000 mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5*2 2x3 2*4 3*5
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8*2.5
2x3
2x3
2x4
3x5
3x6
3x10
4x7
2x4
3x5
3x6
3x10
4x7
5x6
3x5
3x6
3x10
4x7
5x6
5x8
End Finishing Flange, Metal Ring, Cross Connector, closed, etc
Note Customized According To Requirement
