hub lateral for water filtration

More Views

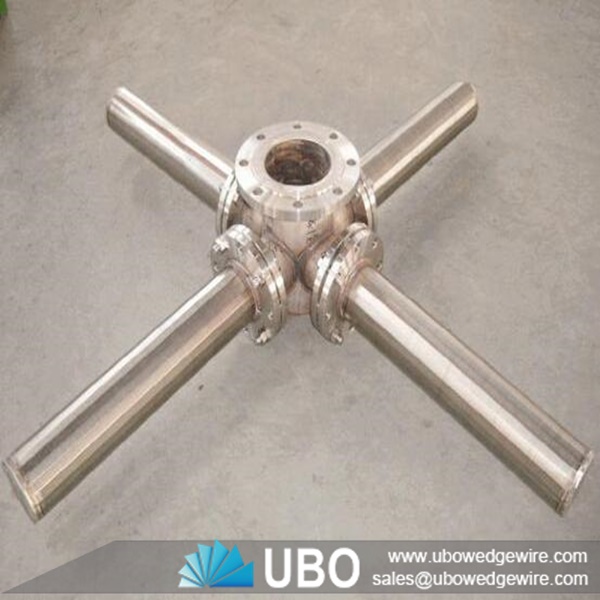

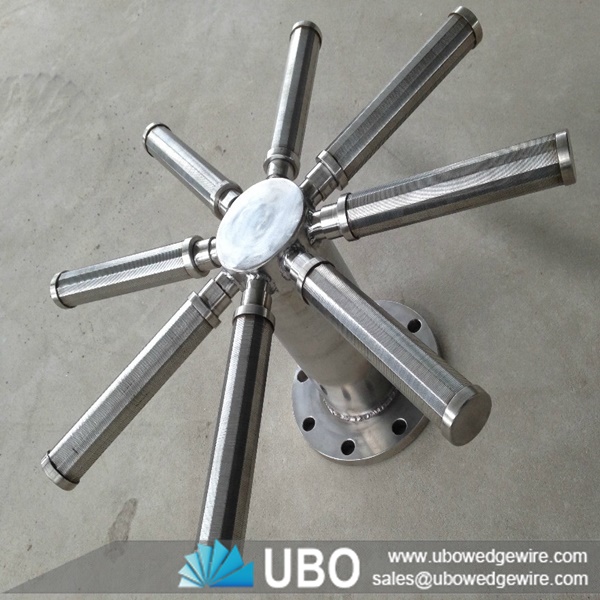

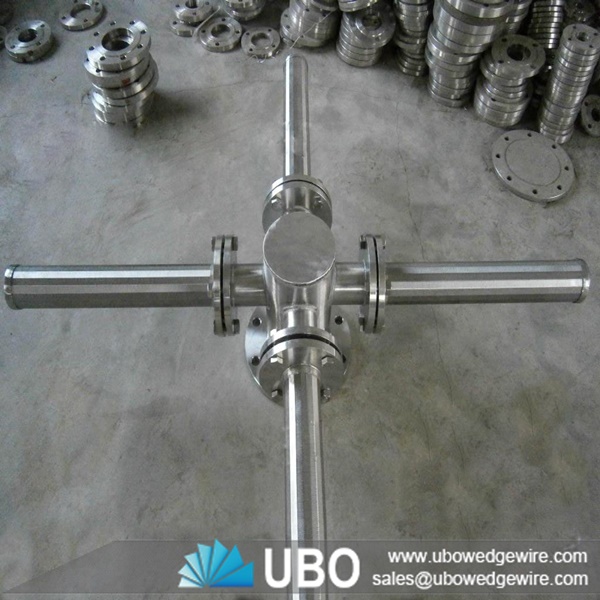

hub lateral for water filtrationhub lateral for water filtrationhub lateral for water filtration

hub lateral for water filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of hub lateral for water filtration

Hub lateral design is also available for flat bottom vessel distributor or collector application. System can be designed to accommodate side, center, top or bottom inset piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Connections of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and filtration applications, carbon towers and power plants with water systems.

Advantages of hub lateral for water filtration

With the advantage of the wrap wire screens pipe, large flow area, uniform water distribution, high mechanical strength, temperature resistance, pressure resistance, aging resistance, corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out. Stainless steel wire slot size can be designed according to the resin size.

Application of hub lateral for water filtration

-- Food & Beverage Screens

-- Mineral & Aggregate Processing

-- OEM Screen Components

-- Pulp & Paper Screens

-- Refining & Petrochemical

-- Water Process & Fluid Treatment

-- Water/oil Well

hub lateral for water filtration

Specifications of hub lateral for water filtration:

1) Raw material:SS321,SS304,SS316,SS316L,TaGr2,Low carbon,Hastelloy-C alloy.

2) Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,

3) Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.

4) Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,

5) Length: 0.05m-6m,

6) OD: 25mm to 800mm,

7) Surface treatment: polishing , chroming.

hub lateral

Packaging and Transportation of hub lateral for water filtration:

transporattion
