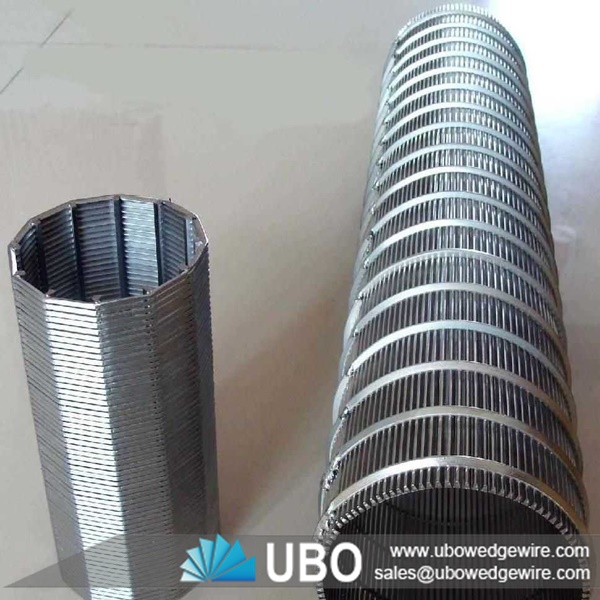

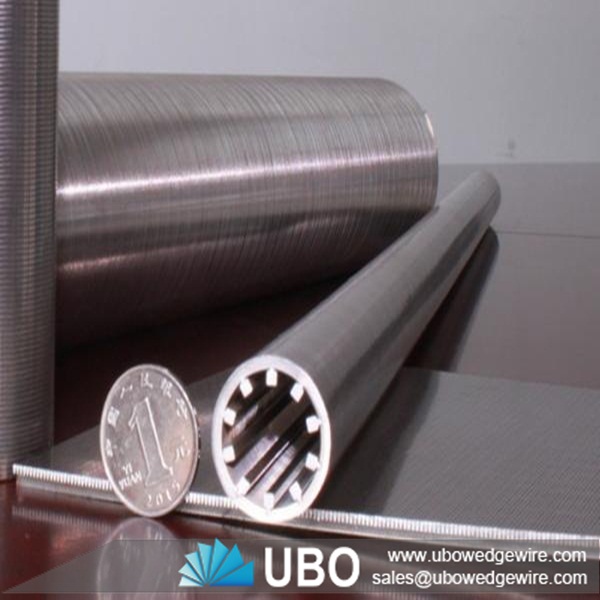

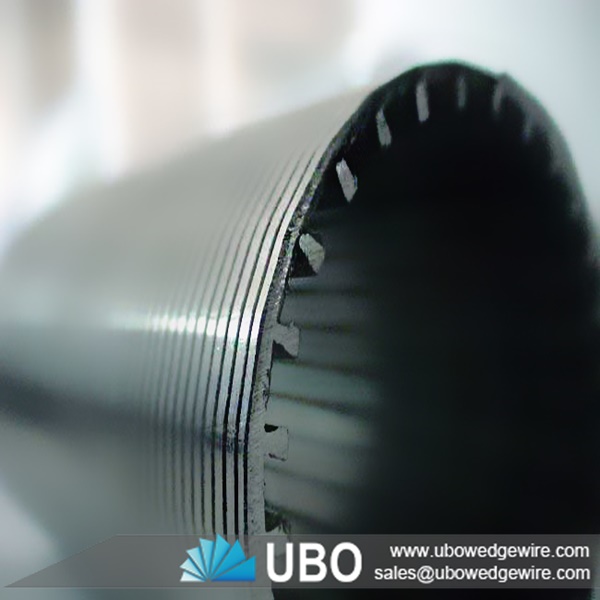

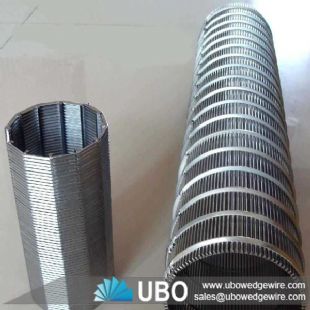

Wedge wire slotted tube for filtration

More Views

Wedge wire slotted tube for filtrationWedge wire slotted tube for filtrationWedge wire slotted tube for filtration

Wedge wire slotted tube for filtration

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire screen
Application:water filtration, oil,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire slotted tube for filtration

Wedge wire slotted tube is made with inverted wrapped V wire (mostly stainless steel ) welded to the supporting ss bar or rod. This type of well screen is also known as V wire wrapped well screens, wedge wire screens cylinder (due to the outline pipe forms), V Wire Screen, reversed slot screen water filter, stainless steel slot tube (due to ss material is the most popular) or pipe base well screen.

Characteristics of Wedge wire slotted tube for filtration

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Uses of Wedge wire slotted tube for filtration

The strainer screen is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

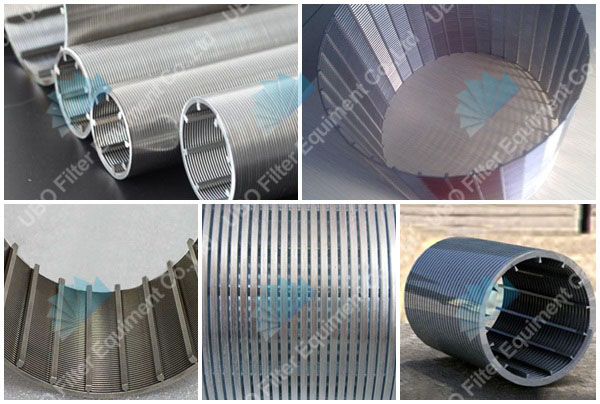

Wedge wire slotted tube for filtration

Specifications of Wedge wire slotted tube for filtration:

Specification(wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.

Wedge wire slotted tube for filtration

Packaging and Transportation of Wedge wire slotted tube for filtration:

packing
