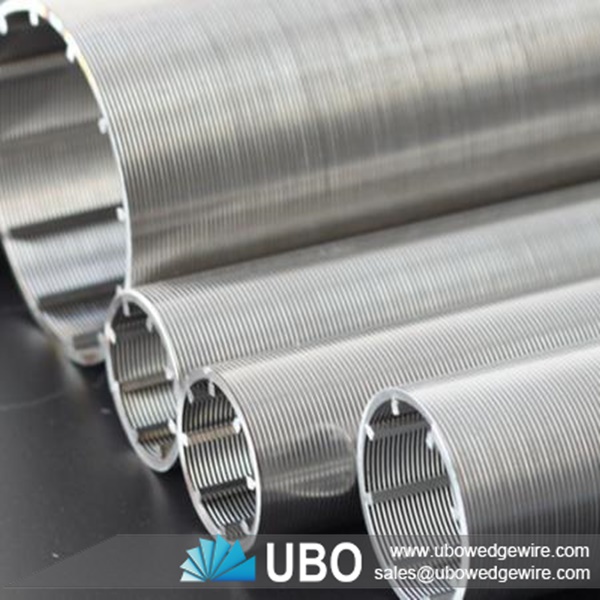

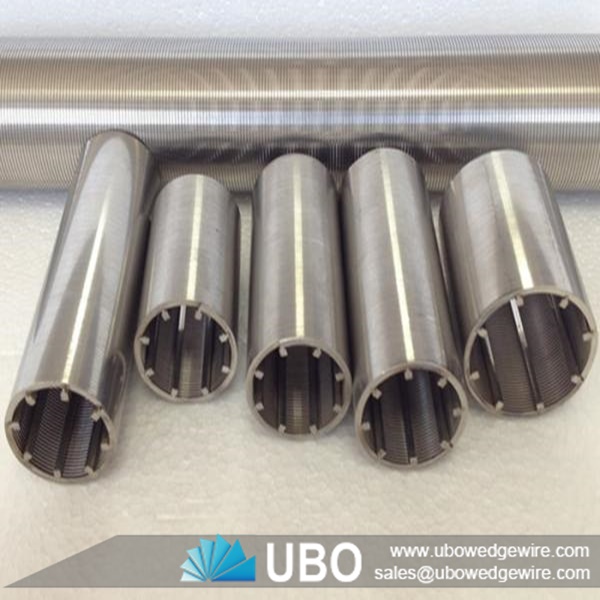

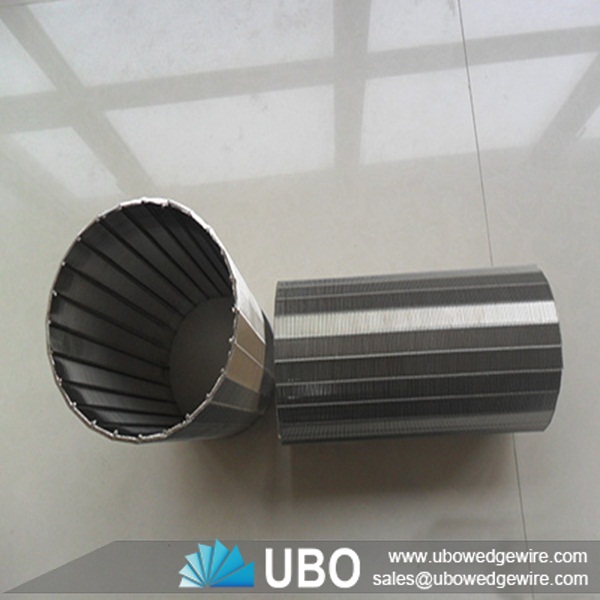

Wedge wire screen pipe for filtration

More Views

Wedge wire screen pipe for filtrationWedge wire screen pipe for filtrationWedge wire screen pipe for filtration

Wedge wire screen pipe for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen pipe for filtration

Wedge wire screen is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on.

UBO can provide you with a wedge wire screen which designed by your own specifications manufactured from either grade 304 stainless steel or grade 316 stainless steel. Length, width, shape and spacing of profile wire are made to meet your special application requirements .

Features of Wedge wire screen pipe for filtration

Johnson screen have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

Advantages of Wedge wire screen pipe for filtration

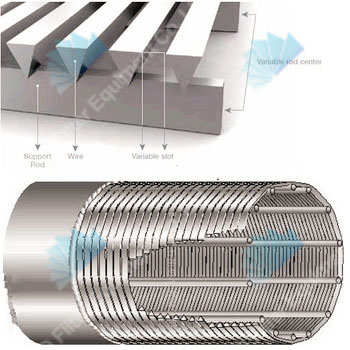

Johnson screen pipe has a continuous slot opening which significantly increases the available open area , thus providing greater access to the water bearing zone (the aquifer)

Applications of Wedge wire screen pipe for filtration

Wedge wire screen pipe are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

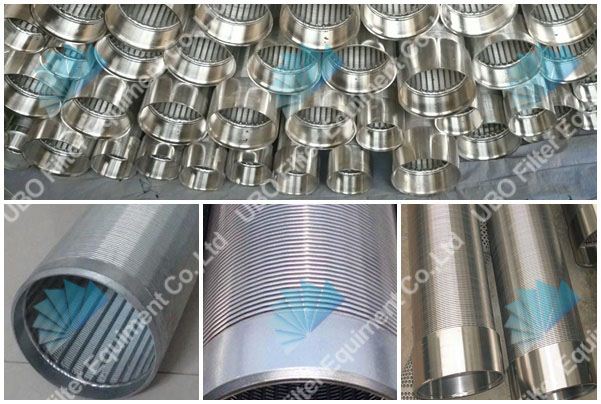

Wedge wire screen pipe for filtration

Specifications of Wedge wire screen pipe for filtration:

Wedge wire screen pipe for filtration

Johnson Screen Specification

Material:

AISI304/316/316L,Galvanized low carton.

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Slot Size

0.10 -- 6.00mm ,also can be customized as your request.

Length

Max 6 meters.

Diameter

25mm -- 1200mm.

Note: Other specifications can be customized according to your requirement.
